TWIN-L S

TWIN-L S / 7,5 kW

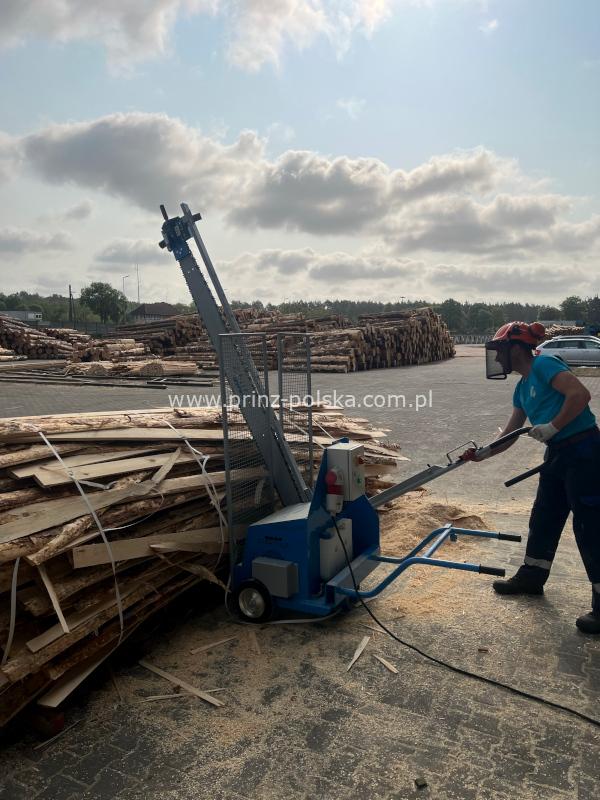

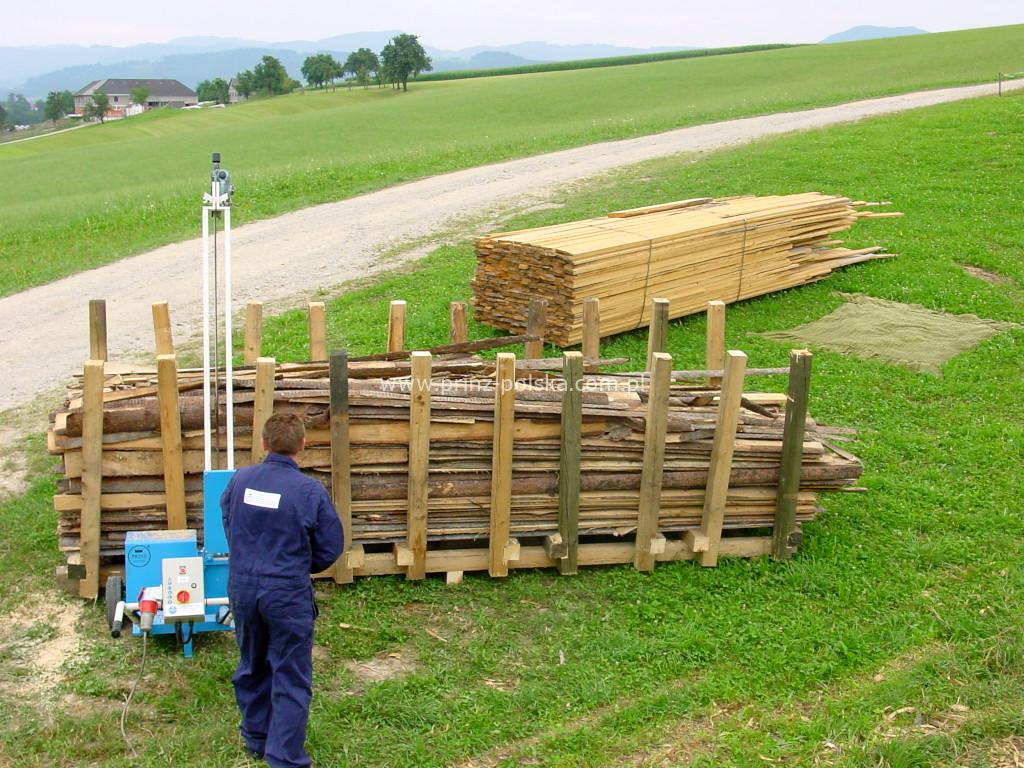

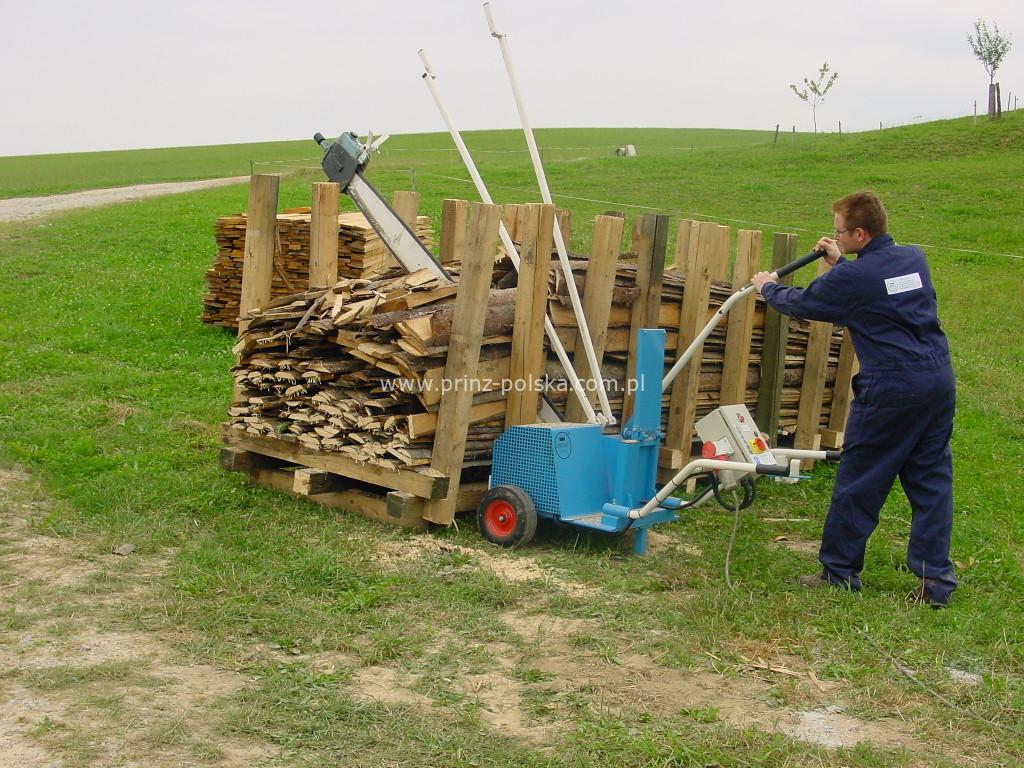

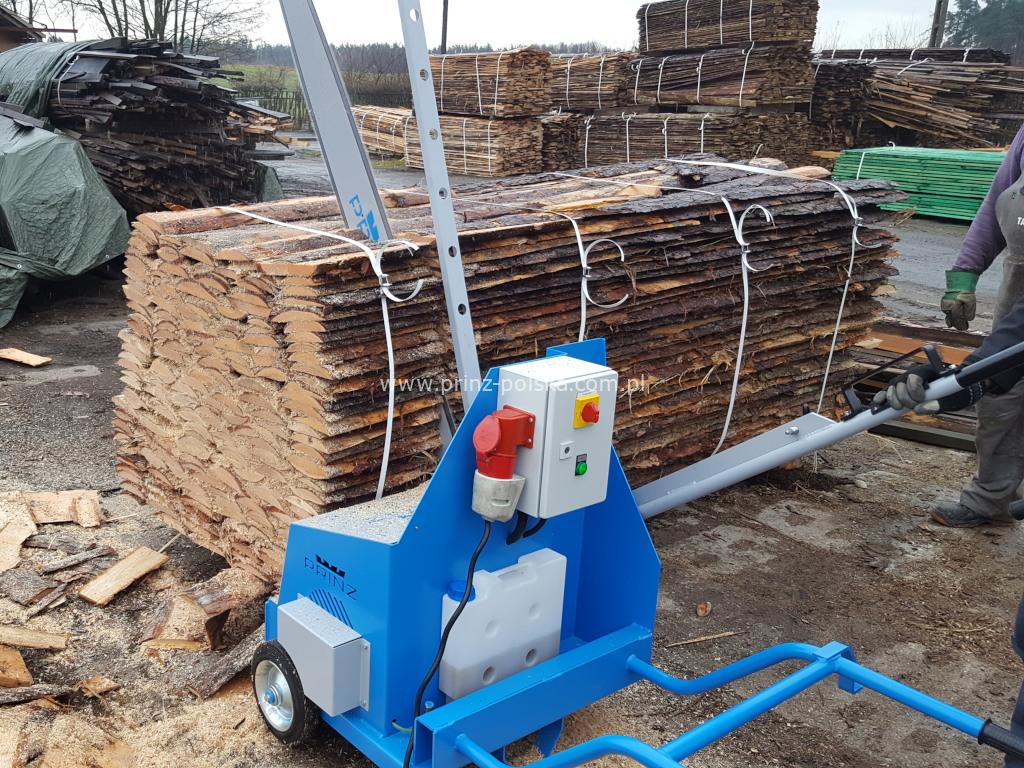

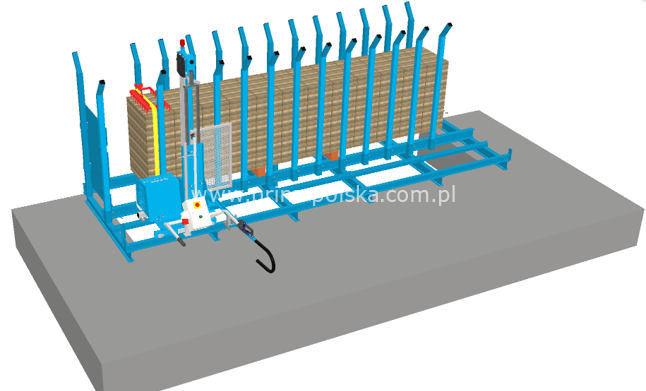

station for cutting bundles of wood scrap/waste with manual feed of the cutting unit

Technical Data Spare parts

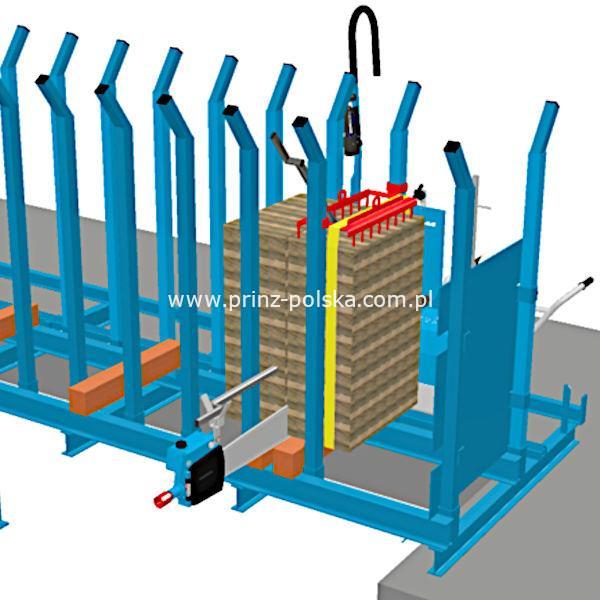

  • “bathtub” construction for easy cutting of the wood scrap/waste
  • steel pressure comb stabilizing the material during cutting

Enables usage of the PROFICUT light / strong saw to be used in stationary version, thus increasing the efficiency and safety of cutting. The saw is easily mounted on the frame. The saw feed to the left / right is carried out manually. Before starting the cut, the saw feed is blocked.

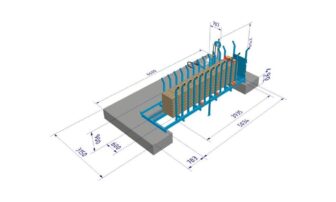

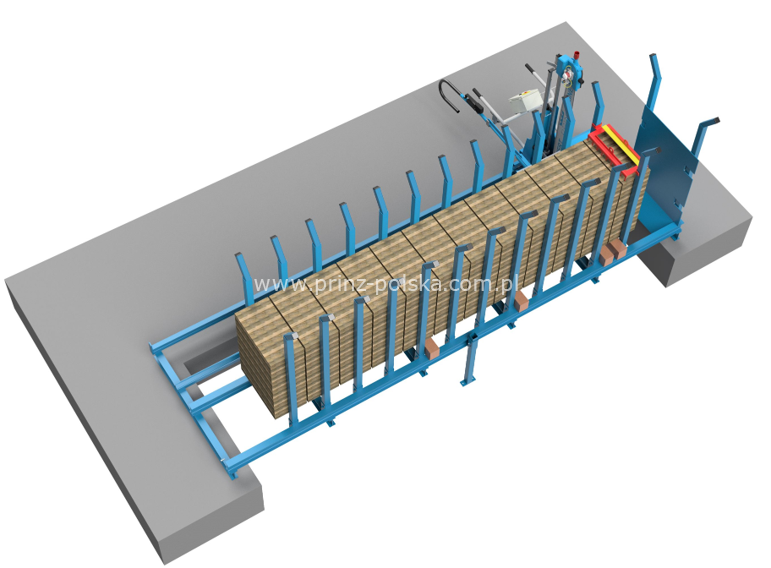

The frame is mounted on elevated foundations, thus facilitating the discharge of cut material into cointainers.

Ask for offer
Call Now 0048618638088
Technical data
Power7,5 kW
Motorelectric 3x400V / 50 Hz / 2920 rpm, direct power transmission
Standard package size (W x H)60 x 100 cm, packages with a length of max. 4,2 m
Other dimensions availableyes
Cut feedmanual
Guiding of the cuttwo stabilization bars
Saw typemovable saw left-right / stationary bundle
Chain typescraper chain / carbide tipped chain
Guide barsolid steel, high frequency hardened or with two-side stellite plating
Cutting performance1,8 min/m²
Cutting accuracy–
Saw/material drivemanual
Measuring device availableyes
Control systemrelay, automatic switch
Applicationstationary cross-cutting of bundles
Other
  • weight: approx. 900 kg
  • removable vertical profiles to facilitate stabilization of scrap / waste bundles
  • absorbing and tensioning system in rail head
  • easy, toolless saw chain tension and replacement
  • fully automatic chain lubrication, gear oil pump, precise oil dose regulation due to control valve, lubrication from cut material side extends life-span of cutting unit parts
  • comfortable grip to lower / raise the cutting unit, especially long guide bars
  • ergonomic system that facilitates lifting of longer guide bars
Option
  • conveyors for waste removal
  • waste containers
  • point laser helpful in setting the saw on the cutting line
Strengths
twinl-glowica-m x
twinl-glowica-m
Massive, cast iron rail head which includes:

- comfortable chain tension system (red knob)
- saw chain vibration damping system (through pulley)
- fully automatic chain lubrication - oil tank, gear oil pump, precise oil dose regulation due to control valve; lubrication from the cut material side
ecostar-uklad-tnacy-s x
ecostar-uklad-tnacy-s
Massive cutting chain with 20 mm pitch for optimum removal of chips, guarantees smooth and level surface after cutting.

Definitely longer durability and visibly better material surface after cutting compared to chains with a pitch of 0,404".

Solid steel, high frequency hardened guide bars or with additional one or two-side stellite plating.
twinl-stabilizatory-m x
twinl-stabilizatory-m
Two stabilization bars for better guiding of the bar, cutting accuracy: +/- 3 mm with level surface.

When leveling end of a package, one stabilization bar stiffens the guide bar increasing cutting accuracy.
proficut-uchwyt-m x
proficut-uchwyt-m
Comfortable grip to lower / raise the cutting unit, especially long guide bars

Additional switch in the handle for operator safety.
twinl-siatka-ochronna-m x
twinl-siatka-ochronna-m
Saw is pushed and fixed by hand: no new positioning of the saw after each cut.

Guide bar is always perpendicular in relation to cut material.

Protective steel net to increase operator's safety.
twinl-profile-m x
twinl-profile-m
Vertical supports for easy and precise positioning of the packs during loading.

Saw always remains in position during the entire cutting, no deviation.
proficut-laser-m x
proficut-laser-m
Spot laser helpful when setting the saw on the cutting line (option).
proficut-uklad-powrot-prowadnicy-m x
proficut-uklad-powrot-prowadnicy-m
Ergonomic system based on a gas spring, which makes it easier to lift longer guide bars (from 170 cm cutting length).
ecostar-skrzynka elektryczna-s x
ecostar-skrzynka elektryczna-s
Siemens electrical components.
