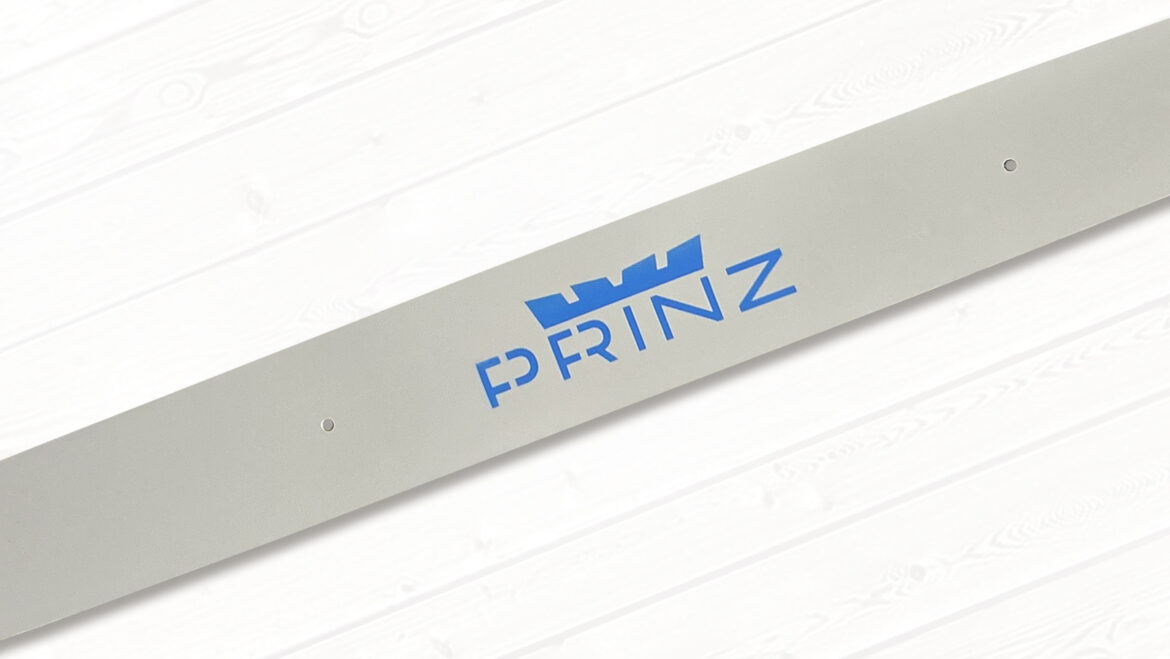

PRINZ guide bars

We offer guide bars for all types or chainsaws, cross-cut stations roundwood sorting/transporting carriages available on the market, from frequency hardened guide bars with pulley for hand saws, through guide bars with stellite layer on both sides for stationary machines, to EXPERT-LINE guide bars, which ensure longest service life and resistance to the most difficult conditions while cutting.

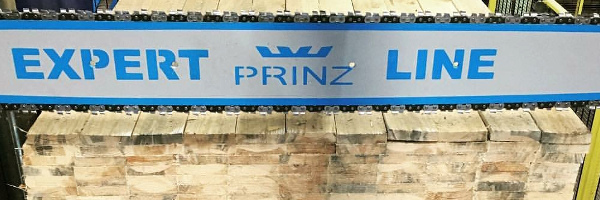

expert-line_1

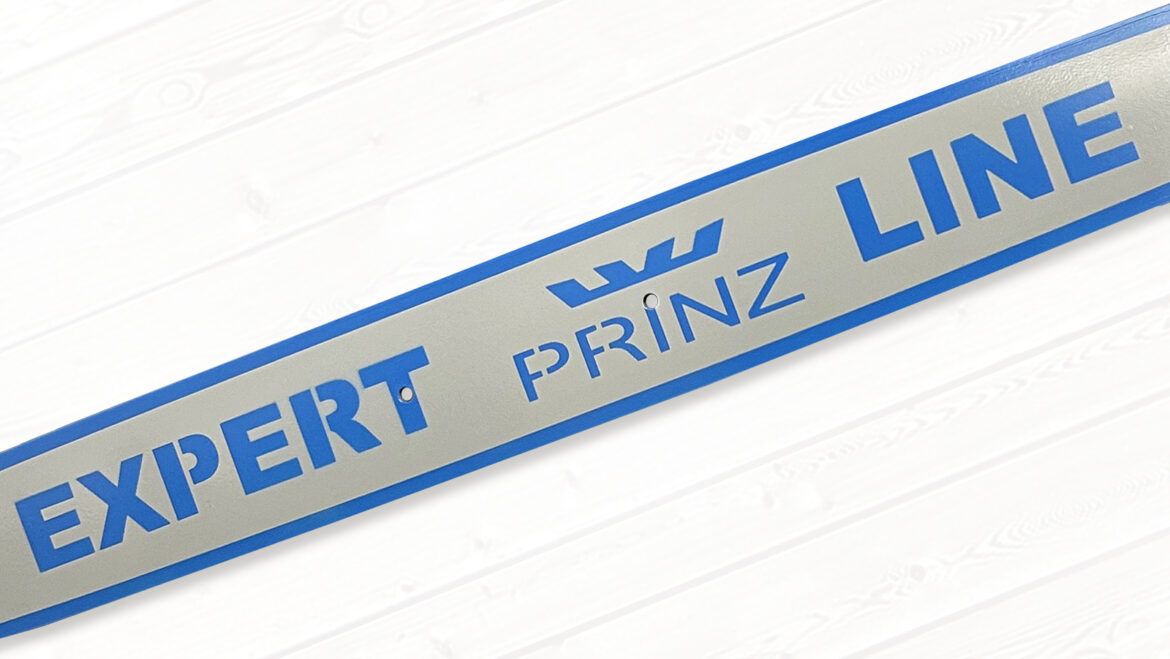

We offer EXPERT-LINE guide bars for the longest service-life:

  • up to 30% more longevity compared to standard hard faced guide bar
  • adapted to work in the most demanding conditions
  • running surfaces manyfold renewable
  • running surfaces with special coating for extreme lifespan
  • running surfaces with excelent gliding properties for the saw chain
  • high cut accuracy because of fully hardened, torsion-resistant ground material

Available guide bar types:

  • high-frequency hardened
  • with special hard-faced edge on both sides
  • EXPERT-LINE

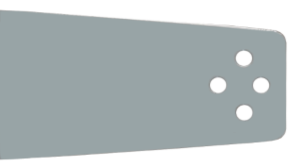

TKS

new-tks-b
new-tks-a

Mainly used in mobile saws such as ECOSTAR, PROFICUT.

Available cutting lengths: 100, 120, 150, 170, 200, 225, 250 cm.
In addition, 150, 170 and 200 cm lengths are available in EXPERT-LINE version.

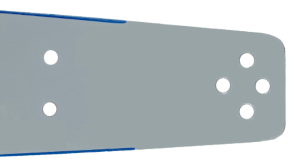

RKS

new-rks-a2
new-rks-b

Mainly used in saws for cutting of round wood LOGSTAR.

Available cutting lengths: 100, 120, 150, 170, 200, 225, 250 cm.
In addition, 150, 170, 200 cm lengths are available in EXPERT-LINE version.

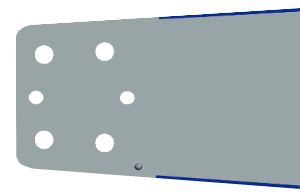

DSH Umbau

new-dsh-b1
new-dsh-a1

Mainly used in package cross-cut stations such as MOBILCUT and round wood cross-cut stations LOGSTAR combi.

Available cutting lengths: 100, 125, 150, 175, 200, 225, 250 cm.
In addition, all lengths are available in EXPERT-LINE version.

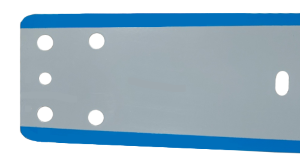

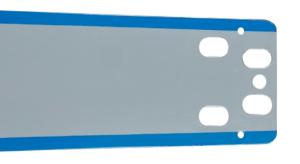

PC120

new-pc120a

Mainly used in automatic lines such as PC120, CUTSTAR or ULTRACUT.

Available cutting lengths: 175, 225 and 265 cm.
In addition, all lengths are available in EXPERT-LINE version.

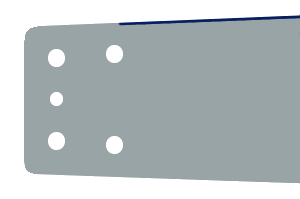

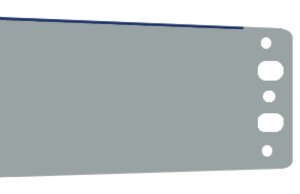

PRINZ120

new-prinz120-a
new-prinz120-b

Mainly used in automatic lines of older type f.e. PRINZ120.

Available cutting lengths: 140, 150 cm.
In addition, all lengths are available in EXPERT-LINE version.

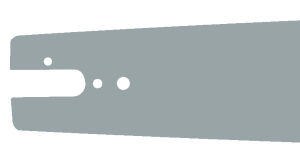

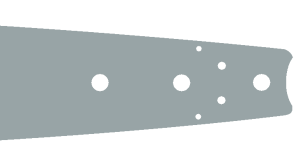

ES120

new-120-a
new-120-b

Mainly used in the older HOLTEC ES120 cross-cutting stations.

Available cutting lengths: 110, 138, 192, 244 cm.

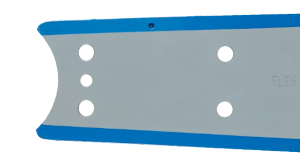

ES121

new-es121a1
new-es121b1

Mainly used in package cross-cut stations HOLTEC – Piccolo, Kappstar, ES121 or Vario Cut and sorting/transporting carriages BAJLER&ZEMBROD.

Available cutting lengths: 100, 130, 160, 190, 250 cm.
In addition, 130, 160 and 190 cm lengths are available in EXPERT-LINE version.

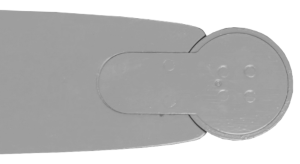

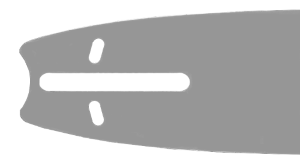

EED, E21, E51

new-e21-a
new-eed-b

Mainly used in BRICKCUT, Comer hand saws.

Available cutting lengths: 43, 53, 63 cm.

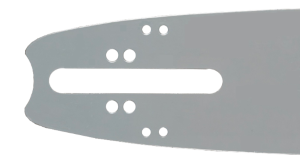

EED

new-eed-a
new-eed-b

Mainly used in EED, PES1300, Comer hand saws.

Available cutting lengths: 30, 43, 53, 63, 75, 90, 110 cm.

Guide bar regeneration

Intensive use of the chain saw causes grooves in the running surfaces of the guide bar, which you can initially deburr with the Prinz PEG device. Of course, we also offer professional regeneration of guide bars in our factory, including straightening, grinding, deepening the groove, stelliting the bearing surfaces and painting.

Regeneration is definitely an economically profitable procedure. Depending on the condition of the worn guide bar and the procedures we have to perform, the costs of regeneration oscillate between 30-70% of the price of a new guide bar, and you get back a practically new part. This reduces the unit cost of cutting. The guide bar can be regenerated twice on average, of course taking care of regular service during its use and not allowing for excessive or uneven wear.

You will obtain the longest service life of the cutting system by using PRINZ oil for lubricating cutting units, with the appropriate viscosity selected for work in winter and summer.

Guide bars for joinery machines

FSSONDER82 / FSSONDER82A

hundegger

Guide bar length: 500mm, stellited running surfaces.
For joinery machines such as PBA, K2i, etc.
Kerf width: 8mm
Chain pitch: 3/8″

FSSONDER84

hundegger2

Guide bar length: 500mm, stellited running surfaces.
For joinery machines such as PBA, etc.
Kerf width: 12/13mm
Chain pitch: 15mm

FSSONDER88A

hundegger1

FSSONDER88D

hundegger3

Guide bar length: 1250mm and 625mm fully hardened.
For joinery machines such as K2i, etc.
Kerf width: 8mm
Chain pitch: 3/8″

FSSONDER88B

hundegger1

FSSONDER88E

hundegger3

Guide bar length: 1250mm and 625mm fully hardened.
For joinery machines such as K2i, etc.
Kerf width: 9,5/10,5mm
Chain pitch: 0,404″
