pc120 with chain conveyor

pc120 / 15 kW

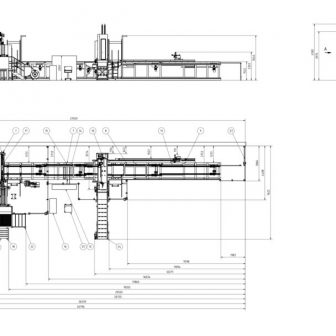

stationary saw unit with package feed using a chain conveyor

Technical Data Spare parts
  • highest cutting accuracy +/- 1 mm and efficiency approx. 1 min/cut
  • the line is customized to individual client’s needs every time thanks to various options

Automatic line pc120 for cutting packages, equipped with a chain conveyor which delivers and removes the cut material. Centrally placed saw unit.

The perfect solution when combined with roller conveyors and other elements of the cross-cutting line, e.g. with a strapping and/or packaging device.

Chain conveyors are perfect for transporting short or uneven packages and materials with fragile surfaces.

The patented DOUBLE ACTION system enabling alternate cutting of the package from top to bottom and bottom to top without the guide bar returning and the possibility of using cross-chain buffers make it the most efficient and comprehensive line in our offer.

prinz-double-action



The patented PRINZ DOUBLE ACTION TECHNOLOGY

Ask for offer
Call Now 0048618638088
Technical data
Cutting motorelectric 15 kW / 3x400V / 50 Hz / 2920 rpm
Standard package size (W x H)120 x 120 cm
Other dimensions availableyes
Cut feedgear motor with inverter
Guiding of the cutparallel precision linear bearing guide system
Saw typestationary saw unit / package moves
Chain typescraper chain / carbide tipped chain
Guide barsolid steel, stellite inlay, EXPERT-LINE execution also available
Cutting performance1,2 min/m²
Cutting accuracy+/- 1 mm
Saw feedmotor with inverter
Measuring device availableyes
Control systemSPS
Applicationtransport of short, uneven packages and materials with fragile surfaces
Other
  • absorbing and tensioning system in the rail head, automatic tension of the saw chain by a gas spring
  • fully automatic chain lubrication – 20l aggregate
  • exhaust connection, Ø = 150
  • saw chain monitoring system
  • package height control system
  • automatic reference cut
  • advanced control systems incl. series cutting function
Option
  • conveyors for waste transportation, containers for waste removal
  • pneumatic package holding down appliance on both sides of the guide bar
  • laser light for cut position
  • automatic device for strapping the package with plastic tapes, possibility of automatic underlaying of joists
  • vibrating rollcase for package alignment to eliminate end trims, package presses
  • plastic curtains which blocks waste discarded during cutting
  • side package pressure pad
  • tablet remote control
  • DOUBLE ACTION – a system that increases the efficiency of the line, enabling cutting in both directions: from top to bottom and from bottom to top (no loss of time resulting from returning the guide to the starting position after each cut)
Strengths
ultracut-smarowanie-m x
ultracut-smarowanie-m
Automatic lubrication of the cutting unit, 20l oil tank, precise regulation of oil dosage.
cutstar-pakiet-m x
cutstar-pakiet-m
Massive cutting chain (thickness of the link 3 mm) with 15 or 20 mm pitch for optimum removal of chips, scraper type execution guarantees smooth and level package surface after cutting.

Guide bars with stellite layer on one or both sides for optimum life-span, EXPERT-LINE execution available.
cutstar-masywna-glowica-m x
cutstar-masywna-glowica-m
Massive rail head with shock absorption of the saw chain.

Automatic chain tension thanks to a gas spring.

Saw chain condition monitoring system.
cutstar-prowadzenia-liniowe-m x
cutstar-prowadzenia-liniowe-m
Massive parallel precision linear bearing guide system for precise and stable guiding of the guide bar with saw chain.
x
cutstar-dociski-m x
cutstar-dociski-m
Package holding down appliance on both sides of the guide bar.

Watch here youtube icon
x
pc120-uklad-pomiarowy-m x
pc120-uklad-pomiarowy-m
Automatic, independent from roller table, measuring system allowing to cut packages with accuracy of +/- 1mm.

Watch here youtube icon
pc120-czujniki-m x
pc120-czujniki-m
Variety of safety protections and sensors which faciliate and improve work safety, such as:

- saw chain condition monitoring system
- package height control system
- automatic reference cut
pc120-odwiorowywanie-m x
pc120-odwiorowywanie-m
Prepared output for dust collecting system.
pc120-transporter-lancuchowy-m x
pc120-transporter-lancuchowy-m
A conveyor that delivers and removes packages of any length.
pc120-stol-doprowadzajacy-m x
pc120-stol-doprowadzajacy-m
Massive construction of tables and cutting unit worked out for many years of servicing.

Vertical rolls for easy and precise positioning of the packs during loading with a forklift.
cutstar-systemy-transportu-odpadow-m x
cutstar-systemy-transportu-odpadow-m
Systems removing waste, crosswise, longwise, slanting bands, containers.
pc120-stol-wstrzasowy-m x
pc120-stol-wstrzasowy-m
Schock tables that enable one-sided alignment of packages prior to cutting.
x
pc120-obwiazywarka-m x
pc120-obwiazywarka-m
Optional: automatic package strapping with plastic bands.

Possibility of automatic underlaying of joists.

Watch here youtube icon
ultracut-pulpit-sterujacy-m x
ultracut-pulpit-sterujacy-m
Functional and clear steering consoles / remote control.
