MOBILCUT TOP LINE / 11 kW

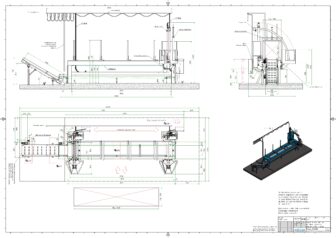

stationary machine with arch guiding frame
- electric feed of cutting unit
- electric feed of saw unit (left / right)
Stationary machine MOBILCUT TOP LINE for cross-cutting of packages with max. dimensions 130 × 130 cm (W x H) with movable cutting unit.
Ideal solution when room space is limited. Easy and quick installation. Perfect solution when room space is limited. Perfectly bridges the gap between cheaper mobile saws and automatic stationary lines.
Cutting unit lowered / raised electrically using joystick, electric saw feed left / right, co-movable with the control panel.
|electric 3x400V / 50 Hz / 2920 rpm, direct power transmission
|Standard package size (W x H)
|130 x 130 cm, packages with a length of max. 6m
|Other dimensions available
|Guiding of the cut
|rigid arch guiding 100 x 50 mm, high stability of cut
|saw moves with operator / stationary package
|scraper steel / carbide tipped chain
|solid steel, high frequency hardened or with additional one / two-side stellite plating
|+/- 2 mm
|Measuring device available
|using the touch screen and joystick
|cross-cutting of packages with accuracy +/- 2 mm while room space is limited
Solid steel, high frequency hardened guide bars or with additional one or two-side stellite plating.
Precise positioning of the cutting unit using wire draw encoder, built-in measuring system with the possibility of programming eight cutting lengths.
Control panel moves along with the saw unit.
