LOG SPLITTER

LOG SPLITTER / 15 kW
electric saw for horizontal cutting of bigger diameters

Technical Data
  • LOG SPLITTER 200 – for round timber with max. diameter 200cm
  • LOG SPLITTER 250 – for round timber with max. diameter 250cm
  • LOG SPLITTER 350 – for round timber with max. diameter 350cm

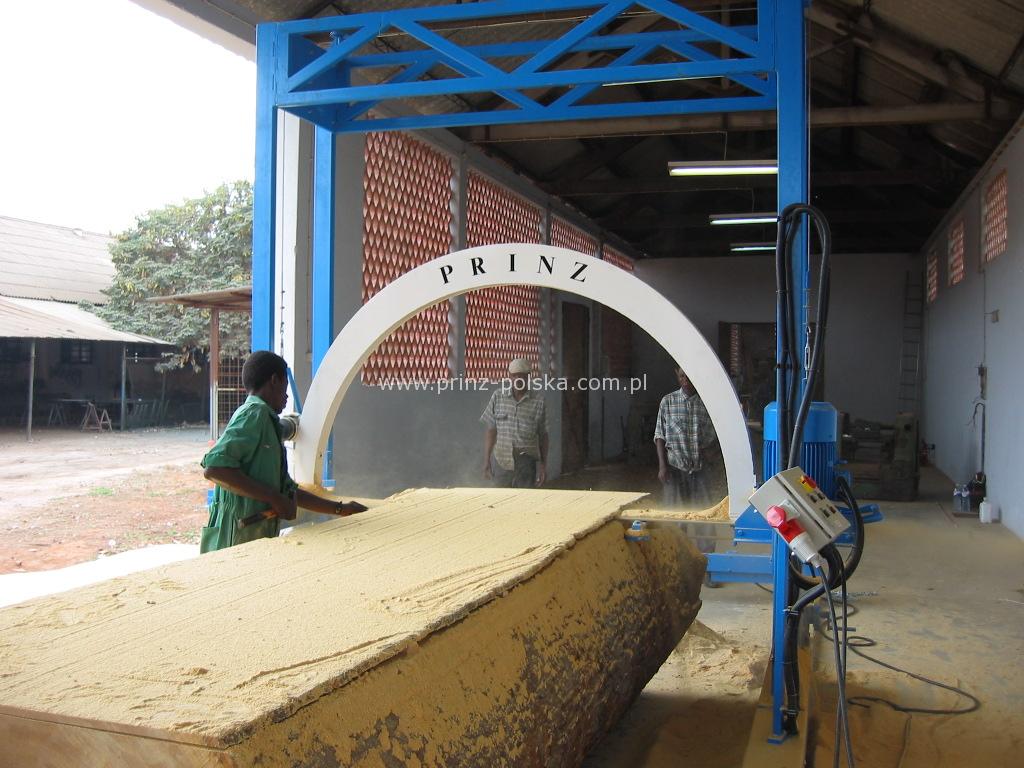

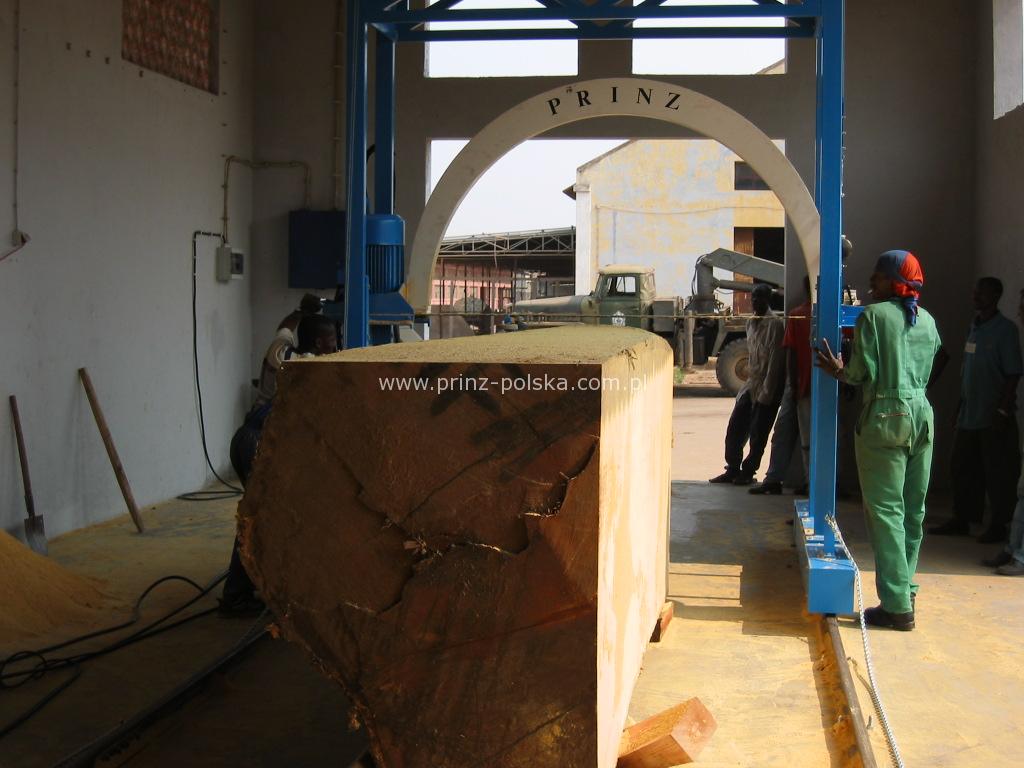

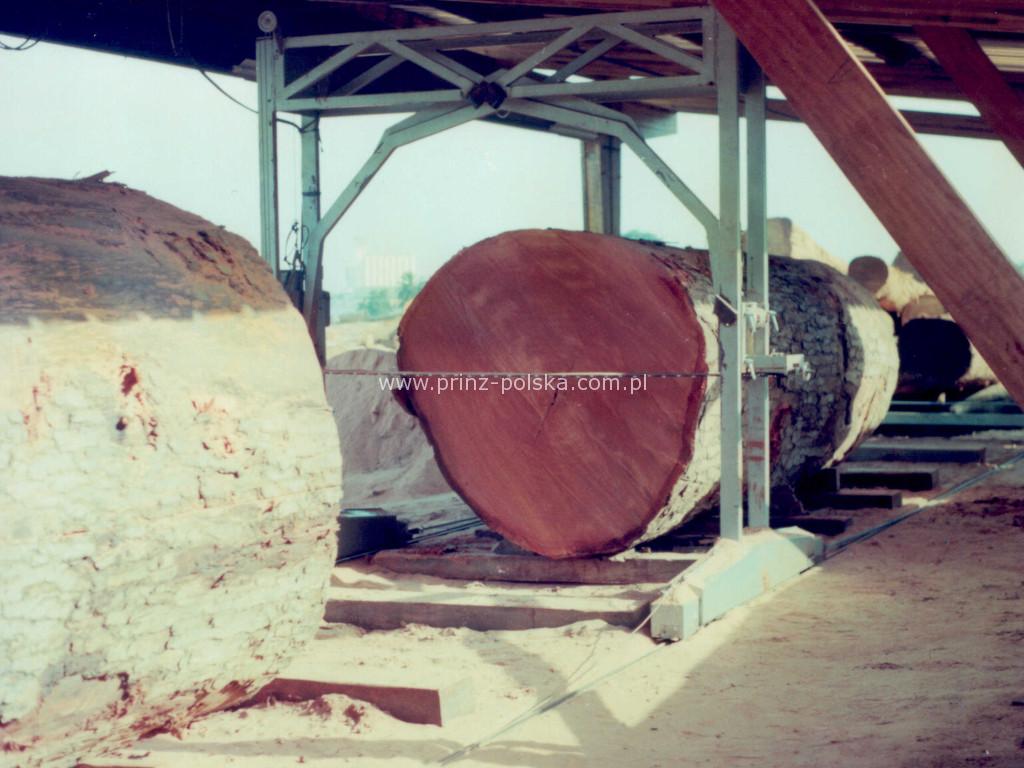

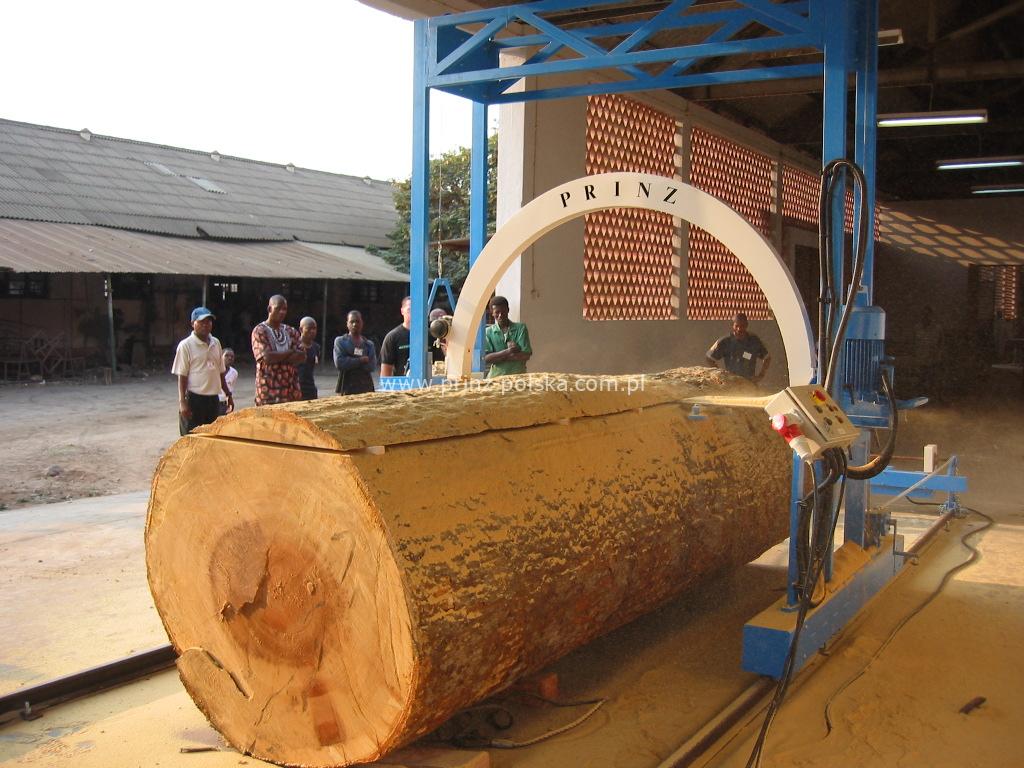

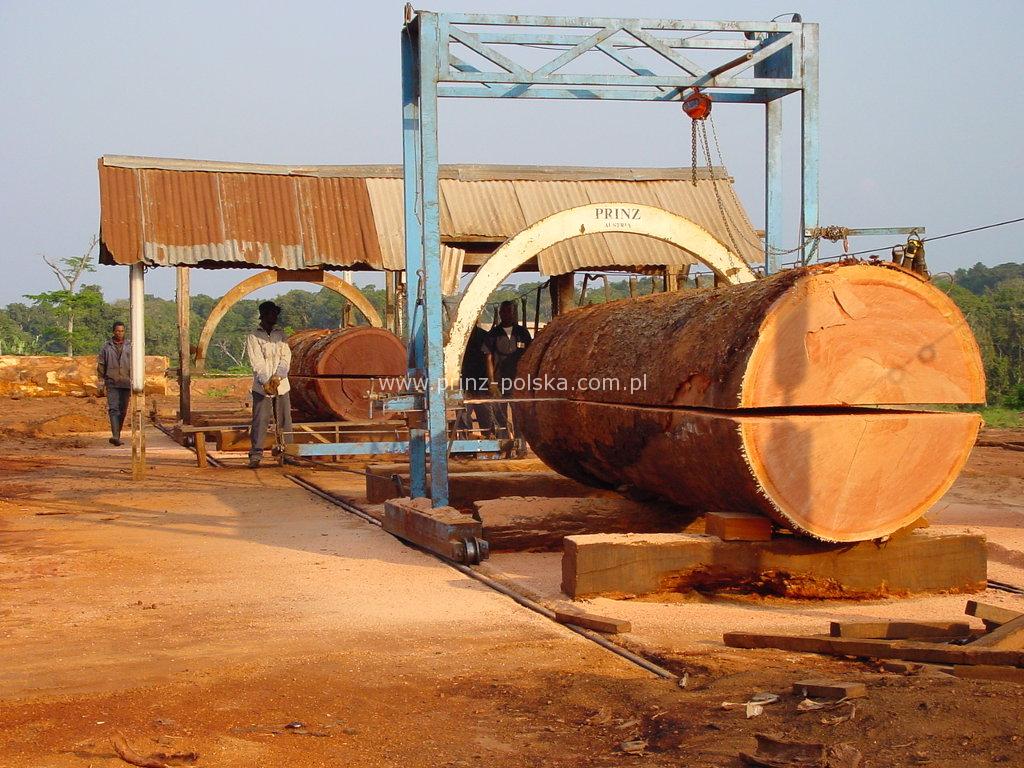

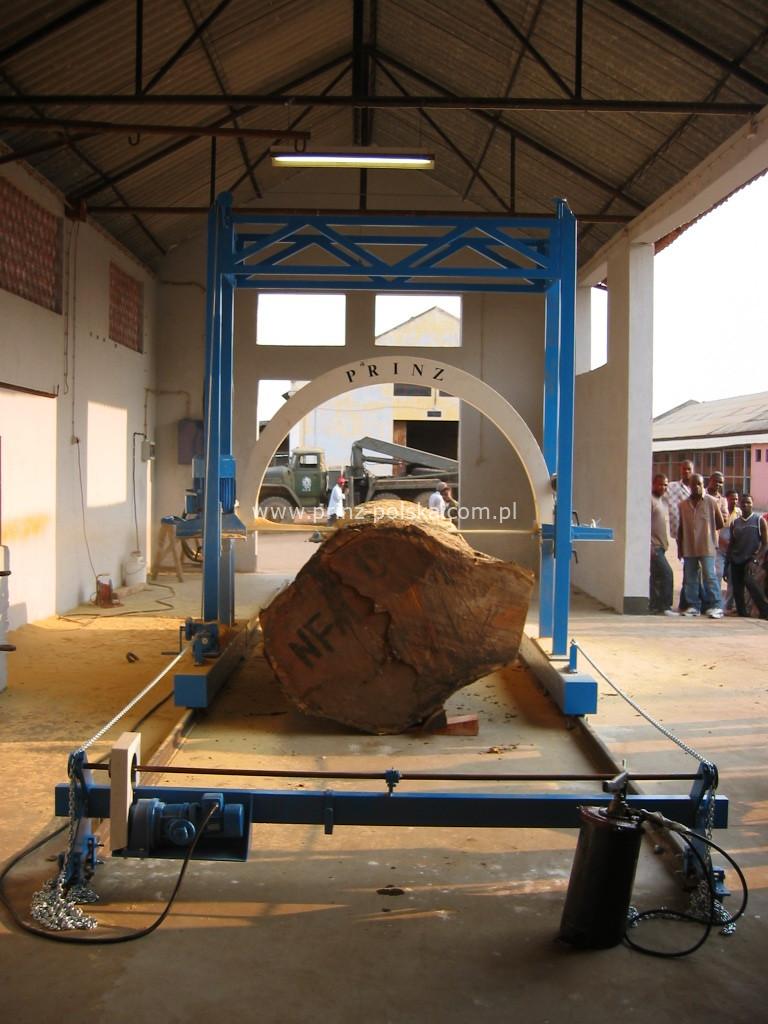

Massive chainsaw for horizontal cutting of hard types of wood (round timber of diameter up to 350 cm). Equipped with an electric or petrol engine. Electric guiding on rails. Log is fixed on the ground or a turntable.

Suitable for the hardest work in tropical climate.

Ask for offer
Call Now 0048618638088
Technical data
Motor15 kW / 3x400V / 50 Hz / 2920 rpm
Max. material diameter200 / 250 cm
Cut feedon rails, electric, 0,18 kW
Feed speedadjustable, 0-10 m/min
Guiding of the cutting unitmassive welded bow
Saw typestationary material, movable saw on rails
Chain typeTIMBERCUT3 for horizontal cutting
Guide barstellited, 3mm groove,  200 / 250 cm length
Cutting efficiency1 min/m²
Lubrication unit3l tank, gear oil pump
Control systemcontactor
Measuring devicemanual regulation of cutting height
Other
  • weight: LOG SPLITTER 200 – 850kg / LOG SPLITTER 250 – 930kg / LOG SPLITTER 350 – 1100kg

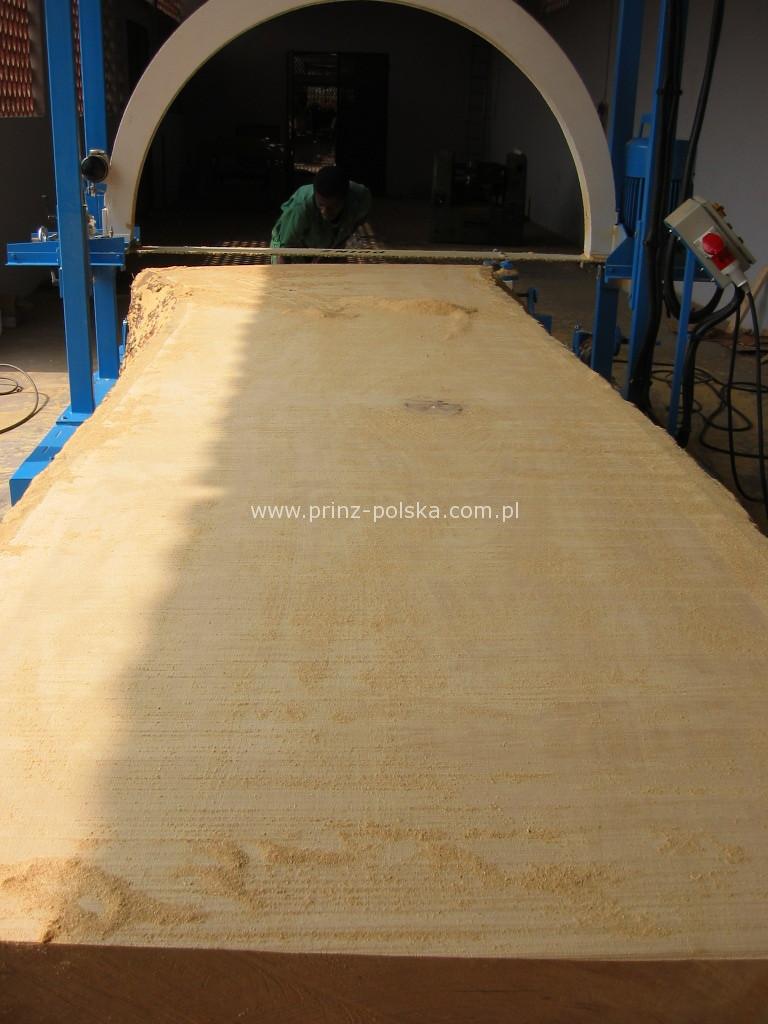

  • smooth and level surface after cutting, high accuracy
  • additional: turntable for logs
Strengths
logsplitter-konstrukcja-m x
logsplitter-konstrukcja-m

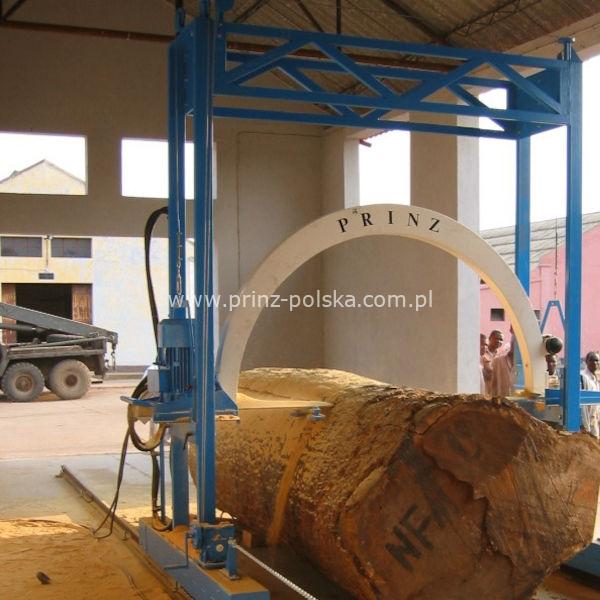

Massive construction and powerful engine for cutting logs of large diameters and hard types of wood.

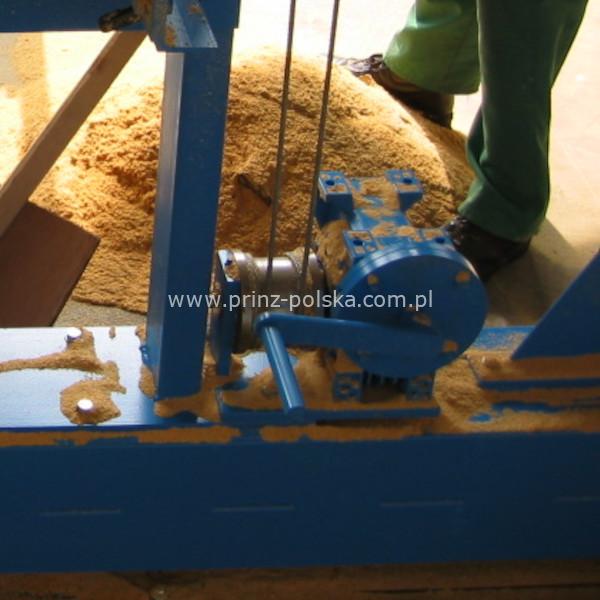

logsplitter-przekladnia-m x
logsplitter-przekladnia-m
Comfortable transmission to lower/raise the cutting unit.

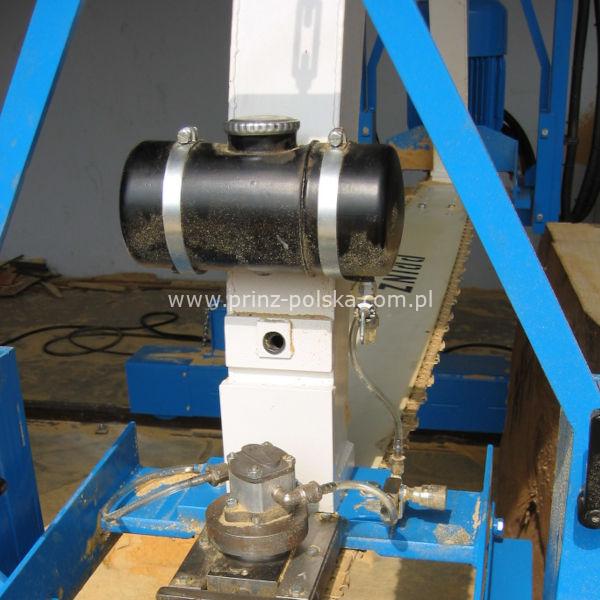

logsplitter-smarowanie-m x
logsplitter-smarowanie-m
Automatic lubrication of the cutting unit, gear oil pump.
logsplitter-naciag-m x
logsplitter-naciag-m
Easy tension of the cutting chain, shock absorbing system preventing chain from breaking.
logsplitter-lancuch-m x
logsplitter-lancuch-m

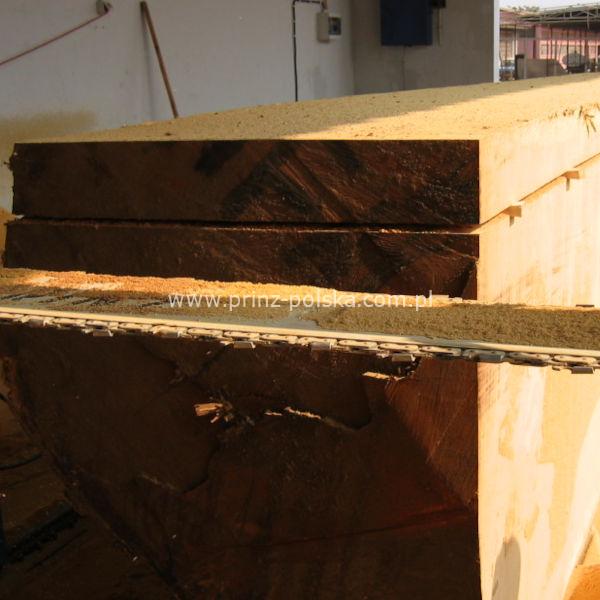

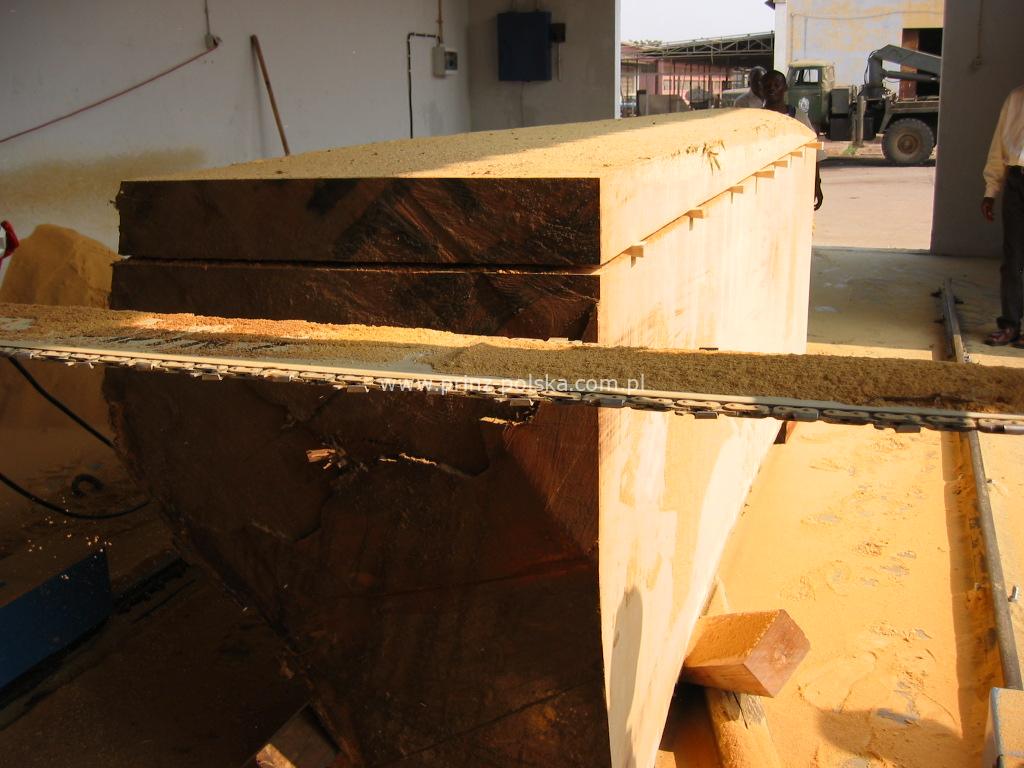

Massive chain for horizontal cutting - guarantees smooth and level surface after cutting.

Stellited guide bar for optimum life-span.
logsplitter-szyny-m x
logsplitter-szyny-m

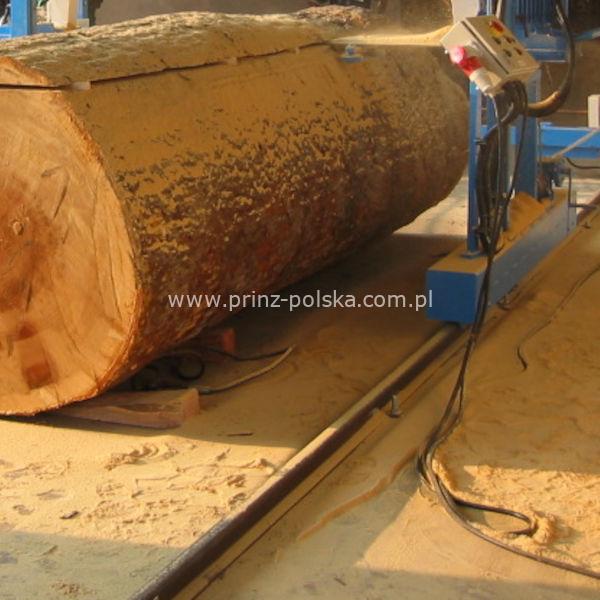

Rails of required length.

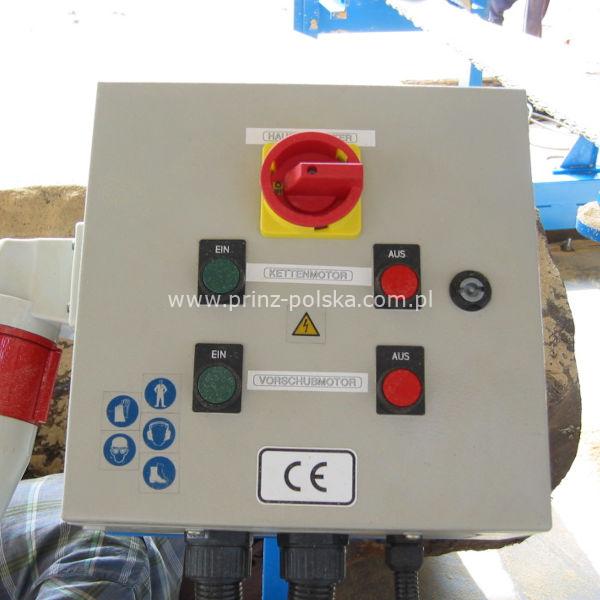

logsplitter-pulpit-m x
logsplitter-pulpit-m
Functional steering console, guiding together with the machine.

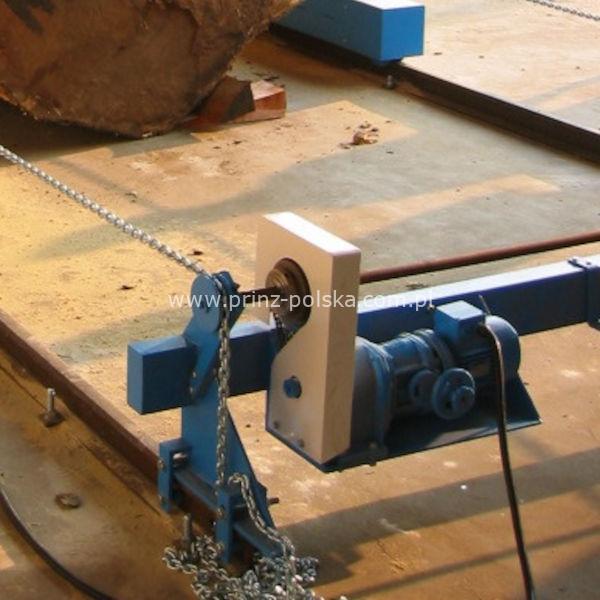

logsplitter-silnik-napedowy-m x
logsplitter-silnik-napedowy-m
Driving motor of a saw with adjustable speed of guiding.
