cutSTAR

cutSTAR / 15 kW

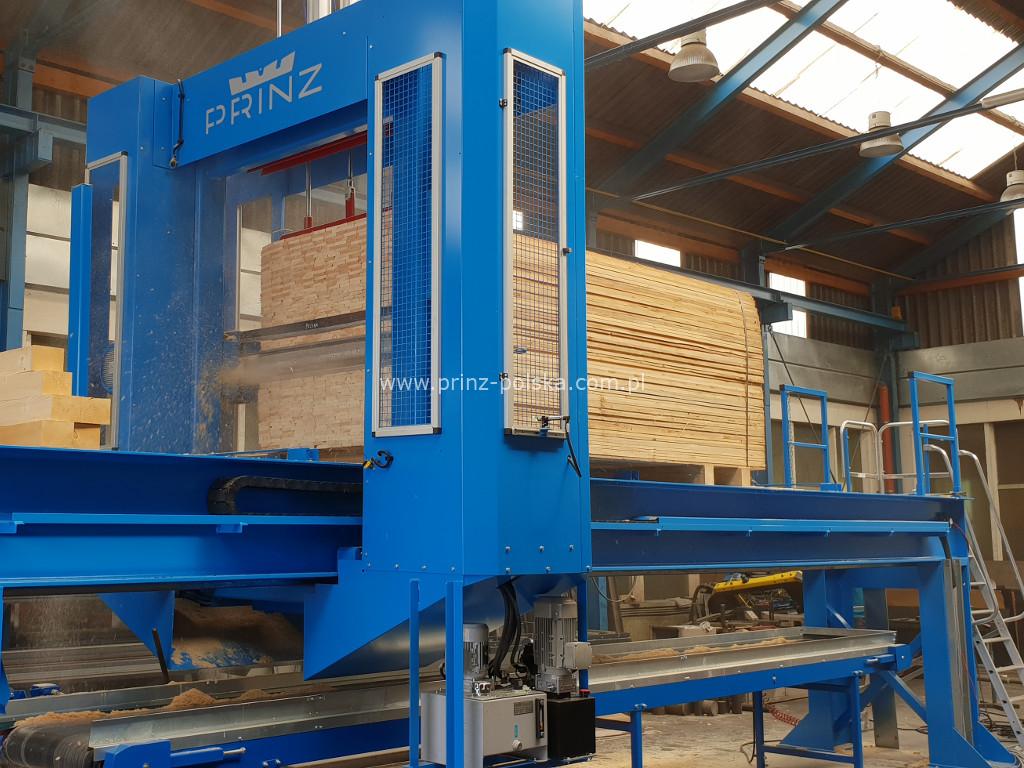

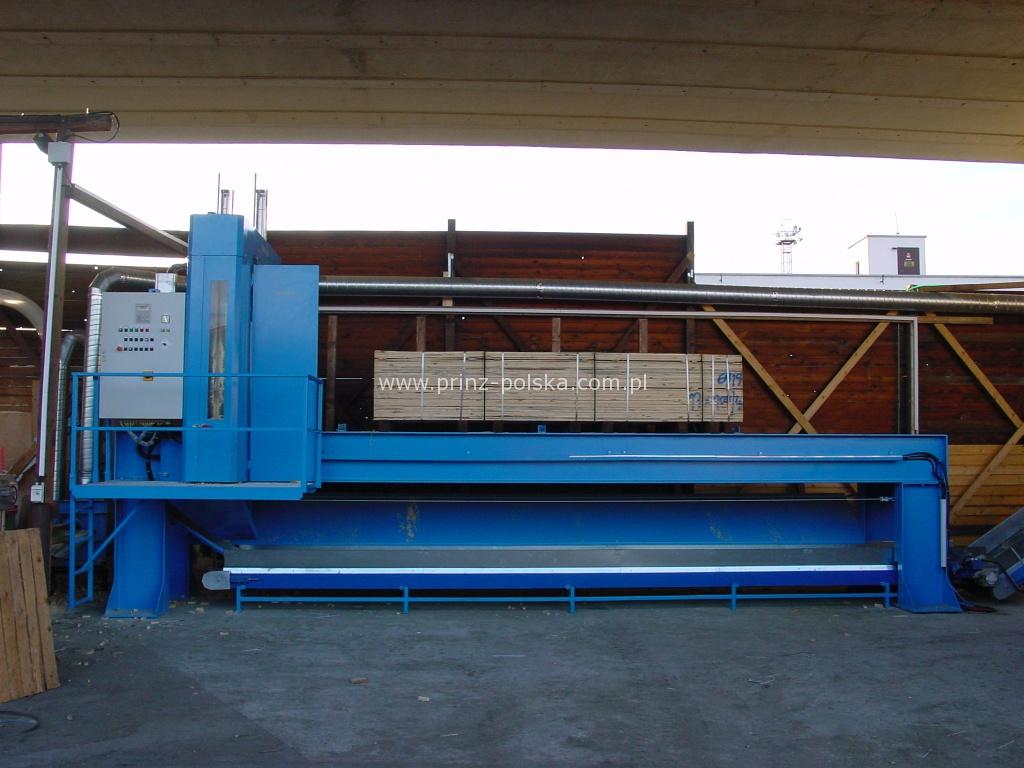

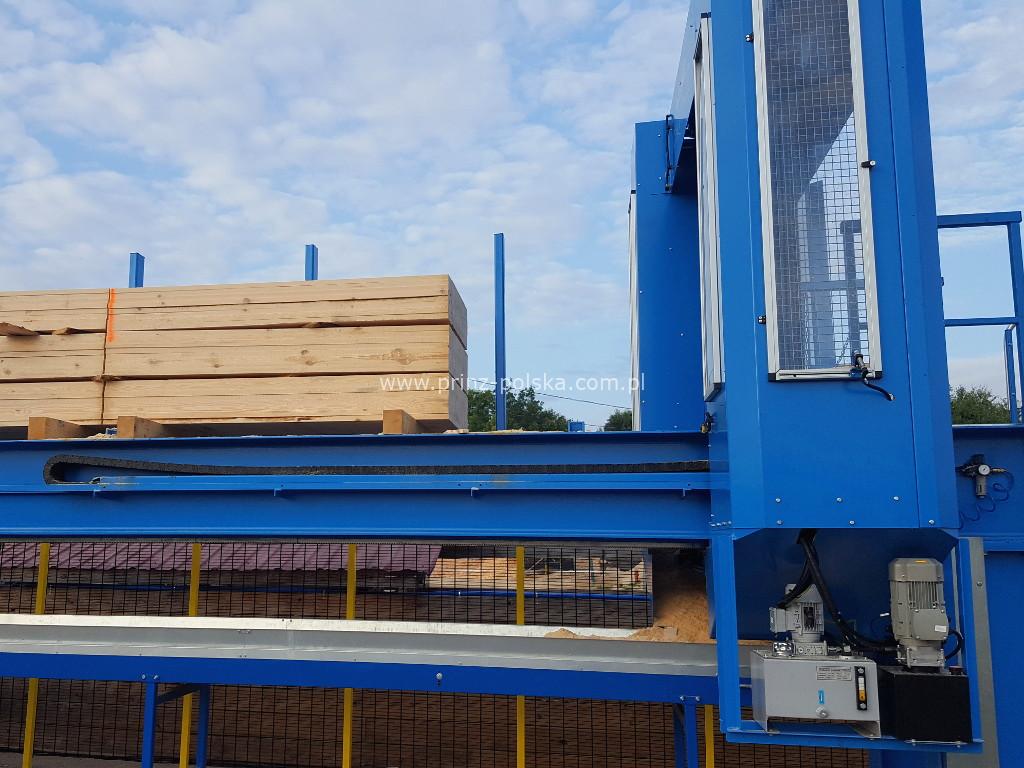

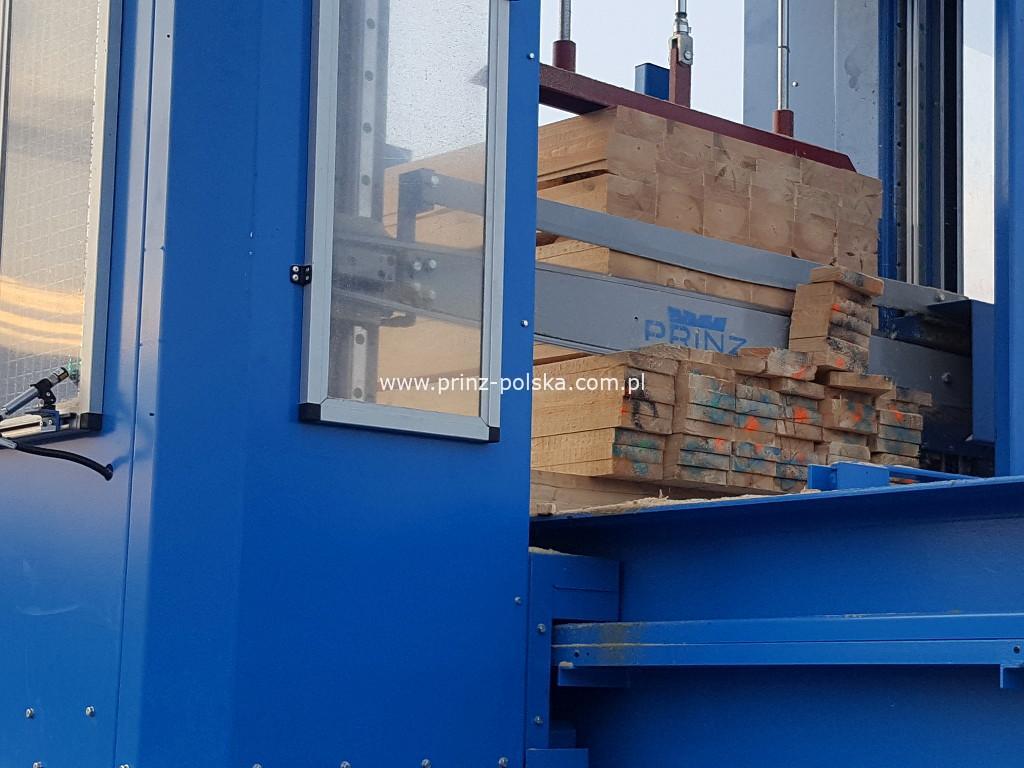

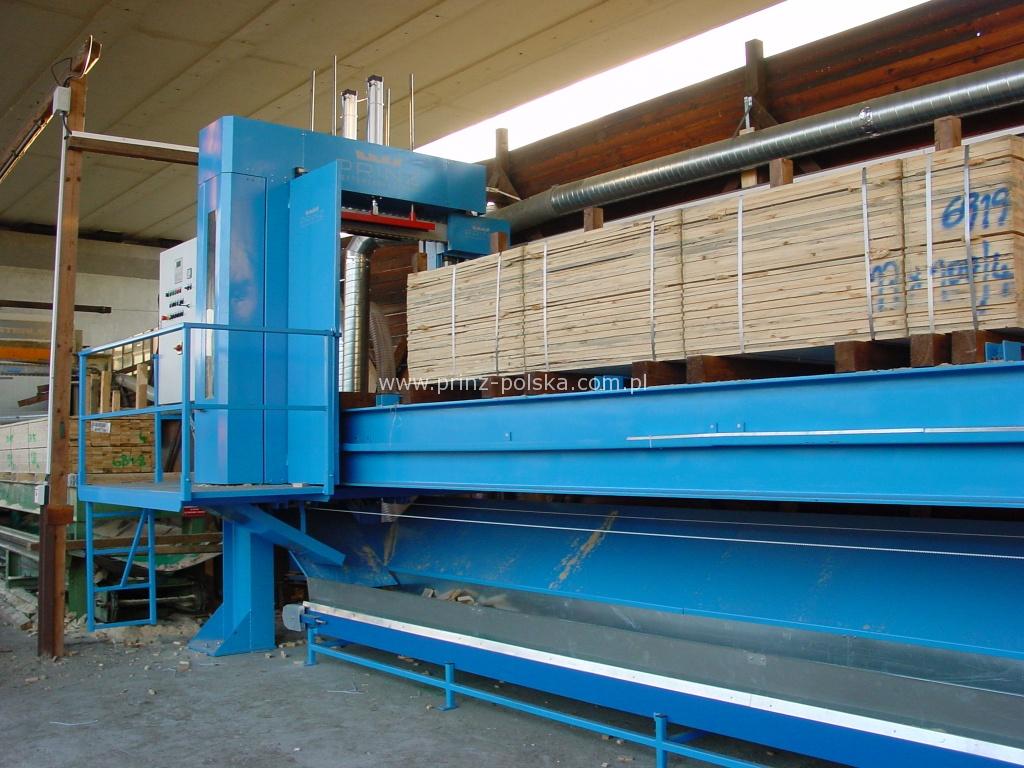

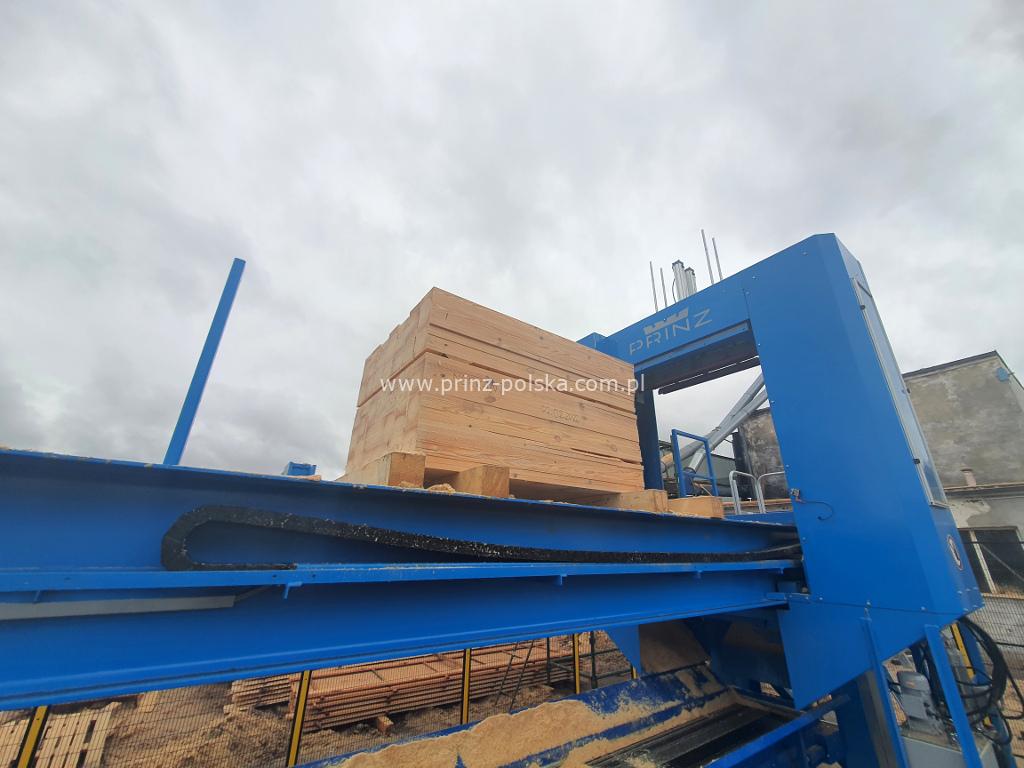

automatic line with parallel linear bearing guiding of the cutting unit - mobile saw unit with stationary package

Technical Data Spare parts
  • intelligent solution for tight space limitation
  • precise, linear guide of the cutting unit guarantees the highest cutting accuracy +/- 1 mm

Fully automated cross-cut saw cutSTAR to cut packages individually customized to client’s needs. An intelligent solution for tight space limitation. Package is fixed while the saw unit moves.

Massive, rigid construction of the machine and precise guiding of the cutting unit guarantee the best cutting results and perfect surface of the package with an accuracy of +/- 1 mm.

Ask for offer
Call Now 0048618638088
Technical data
Power15 kW
Motorelectric 3x400V / 50 Hz / 2920 rpm
Standard package size (W x H)120 x 120 cm, packages with a length of max. 6 m
Other dimensions availableyes
Cut feedgear motor with inverter
Guiding of the cutparallel precision linear bearing guide system
Saw typesaw unit moves / stationary package
Chain typescraper chain / carbide tipped chain
Guide barsolid steel, stellite inlay, EXPERT-LINE execution available
Cutting performance1,2 min/m²
Cutting accuracy+/- 1 mm
Saw feedmotor with inverter
Measuring device availableyes, series cutting feature available
Control systemSPS
Applicationcross-cutting of packages with accuracy +/- 1 mm while room space is limited
Other
  • absorbing and tensioning system in the rail head, automatic tension of the saw chain by a gas spring
  • fully automatic chain lubrication – 20l aggregate
  • exhaust connection
  • saw chain monitoring system
  • package height control system
  • automatic reference cut
  • advanced control systems with series cut function
Option
  • conveyors for waste transportation
  • containers for waste removal
  • hydraulic package lift for kerf opening
  • pneumatic package holding down appliance on both sides of the guide bar
  • plastic curtains which blocks waste discarded during cutting
  • laser light for cut position
  • side package pressure pad
  • tablet remote control
Strengths
cutstar-agregat-smarujacy-m x
cutstar-agregat-smarujacy-m
Automatic lubrication of the cutting unit, 20l oil tank, precise regulation of oil dosage.
cutstar-wprowadzanie-prowadnicy-pod-katem-m x
cutstar-wprowadzanie-prowadnicy-pod-katem-m
Massive cutting chain (thickness of the link 3 mm) with 15 or 20 mm pitch for optimum removal of chips, scraper type execution guarantees smooth and level package surface after cutting.

Guide bars with stellit layer on one or both sides for optimum life-span, EXPERT-LINE execution also available.
cutstar-prowadzenia-liniowe-m x
cutstar-prowadzenia-liniowe-m
Massive, parallel linear bearing guide system for precise and stable guiding of the cutting unit.
x
cutstar-dociski-m x
cutstar-dociski-m
Package holding down appliance on both sides of the guide bar.

Watch here youtube icon
cutstar-listwa-zebata-m x
cutstar-listwa-zebata-m

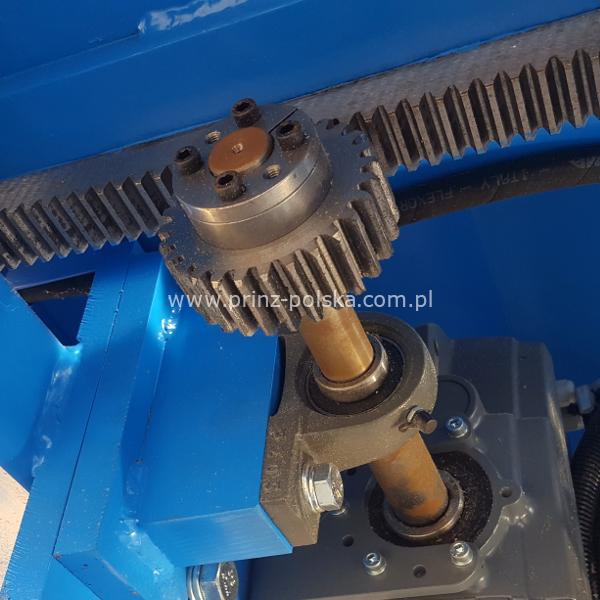

Precise guiding of the saw unit using toothed rack and automatic measuring system allow to cut packages with accuracy of +/- 1 mm.
cutstar-czujnik-m x
cutstar-czujnik-m

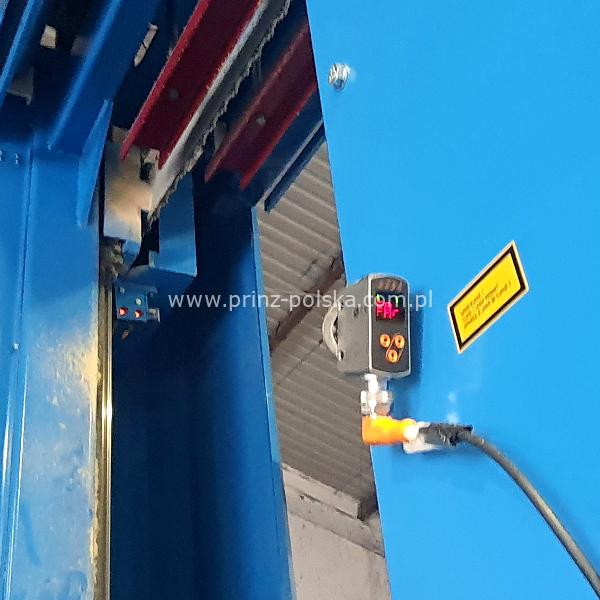

Variety of safety measures and sensors which faciliate and improve work safety.
cutstar-odprowadzanie-wiorow-m x
cutstar-odprowadzanie-wiorow-m
Prepared output for dust collecting system.
cutstar-masywna-konstrukcja-m x
cutstar-masywna-konstrukcja-m

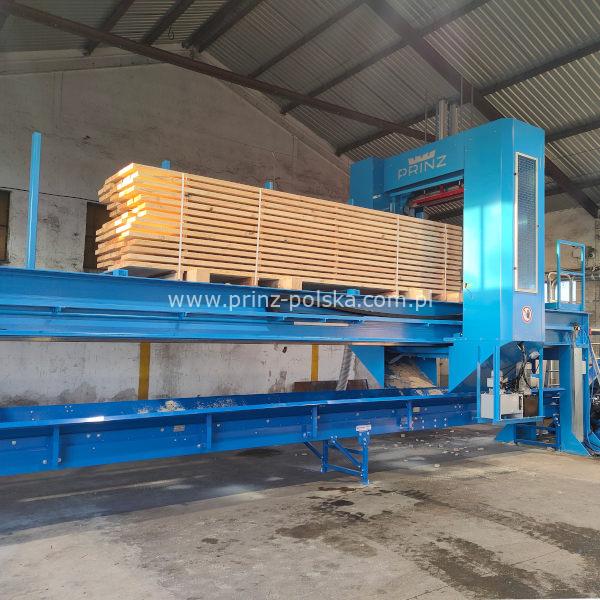

Massive construction of frame and saw unit worked out for many years of servicing, I-beams 500 mm.
cutstar-belki-pionowe-m x
cutstar-belki-pionowe-m

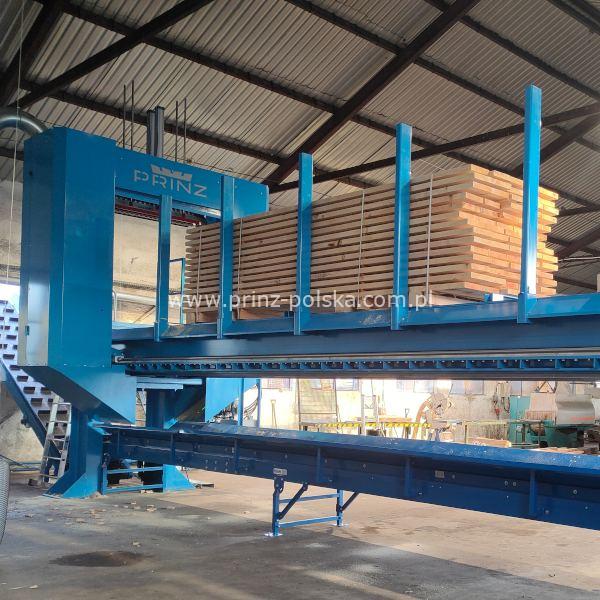

Vertical and horizontal supports for easy and precise positioning of the packs during loading.

Controls with the option of entering vertical profiles settings to prevent cutting in their position.
cutstar-systemy-transportu-odpadow-m x
cutstar-systemy-transportu-odpadow-m
Systems to transport waste, crosswise, longwise, slope conveyors, containers.

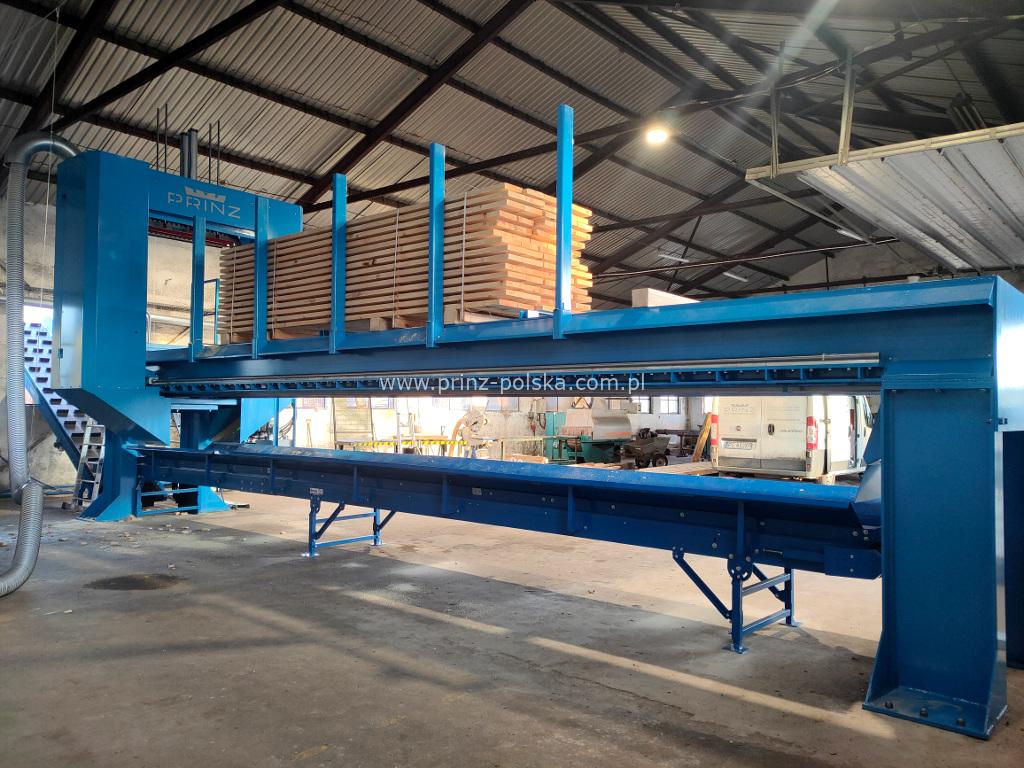

Standard height of the table frame: 1,8 m, enables outfeeding waste directly into containers placed under the table, an expensive process of removing rests by means of conveyors is not necessary.
cutstar-pulpit-sterujacy-m x
cutstar-pulpit-sterujacy-m

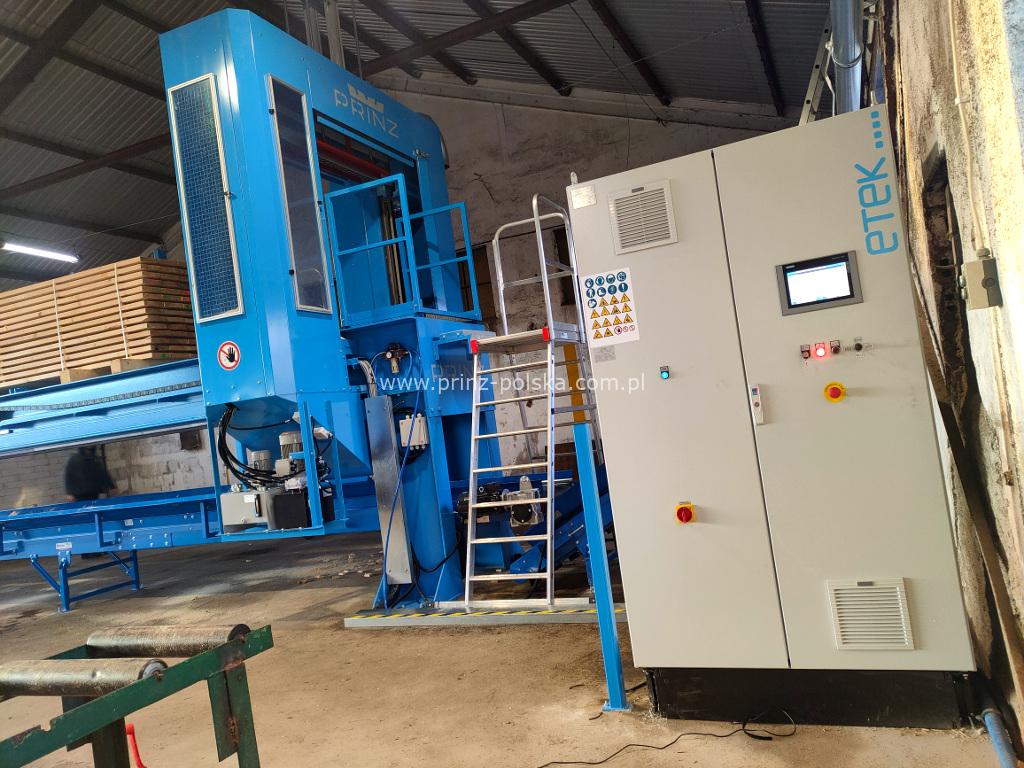

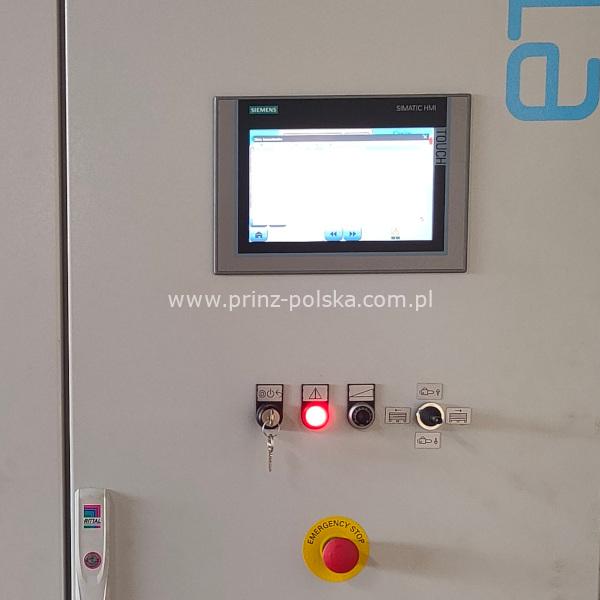

Functional and clear steering consoles.
cutstar-laserowa-projekcja-ciecia-m x
cutstar-laserowa-projekcja-ciecia-m
Laser light showing cut position.
cutstar-masywna-glowica-m x
cutstar-masywna-glowica-m
Massive rail head with shock absorption of the saw chain.

Automatic chain tension thanks to a gas spring.

Saw chain condition monitoring system.
cutstar-wprowadzanie-pod-katem-m x
cutstar-wprowadzanie-pod-katem-m

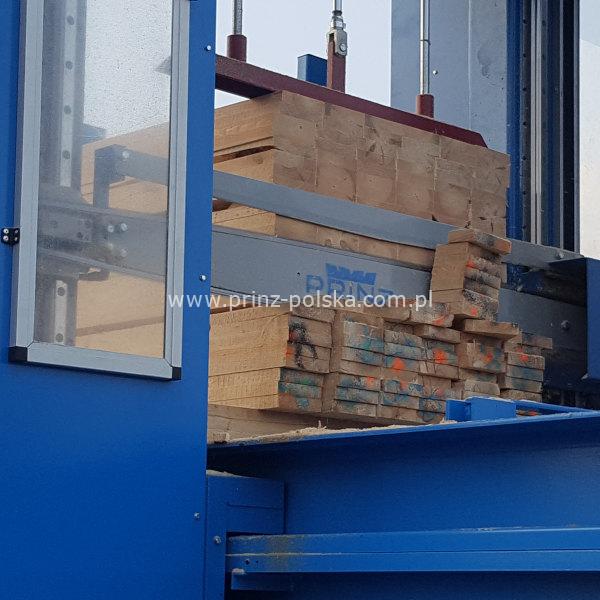

The guide bar starts to cut the package at a slight angle, ensuring smoother "cutting into" the package upper layers and reducing cutting unit parts wear.
x
cutstar-hydrauliczne-otwieranie-rzazu-m x
cutstar-hydrauliczne-otwieranie-rzazu-m

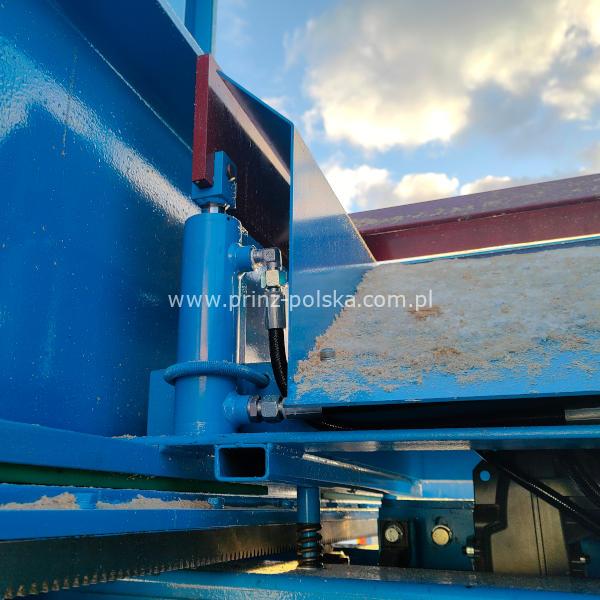

Hydraulic system for kerf opening after cutting.

Watch here youtube icon
cutstar-kurtyny-swietlne-m x
cutstar-kurtyny-swietlne-m
Light curtains that increase machine operation safety.
