PACKCUT

PACKCUT / 15 kW

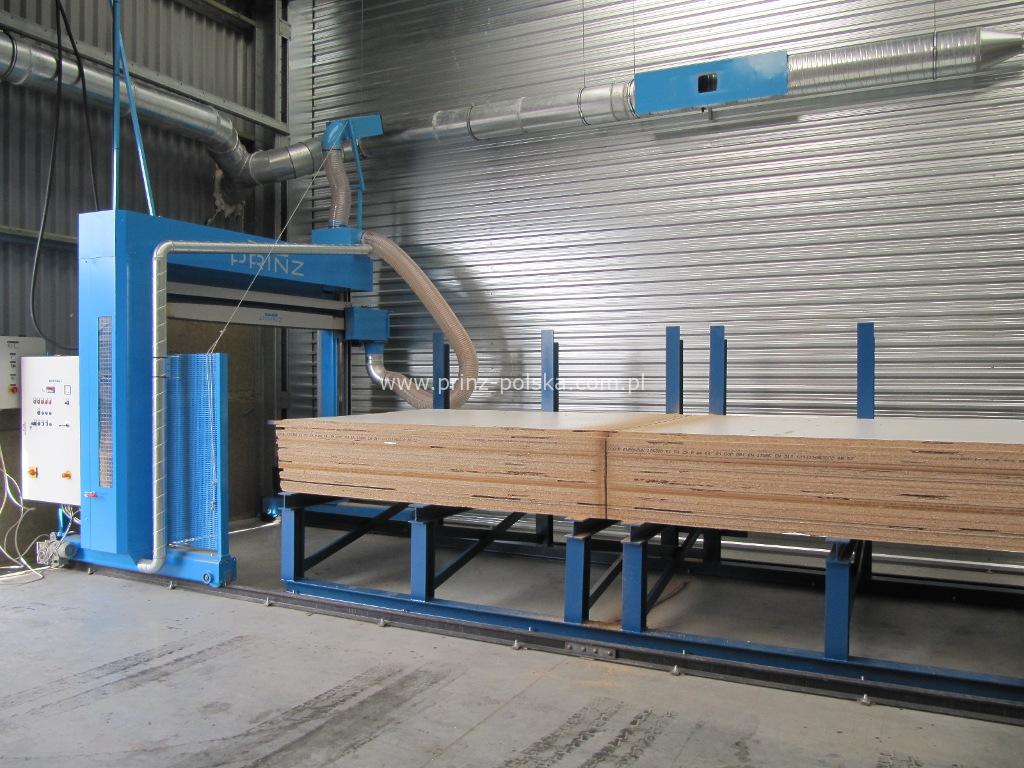

movable saw unit with feed on rails of any length

Technical Data Spare parts
  • enables cutting larger packages
  • each time adapted to the customer’s needs thanks to various additional options

The saw configuration is very flexible and allows for special requirements regarding the width and height of processed packages.

The saw moves along the rails to the desired cutting position, thanks to which the installation can be easily extended at any time.

Digital indication of the length of the cut package or pneumatic holding down appliance of the pack are some of the additional options that can be included in the PACKCUT line.

Ask for offer
Call Now 0048618638088
Technical data
Cutting motorelectric 15 kW / 3x400V / 50 Hz / 2920 rpm
Standard package size240 x 120 cm (W x H)
Other dimensions availableyes
Cut feedgear motor with inverter
Guiding of the cutparallel precision linear bearing guide system
Saw typemovable saw unit / stationary package
Chain typescraper chain / carbide tipped chain
Guide barsolid steel, stellite inlay, EXPERT-LINE execution also available
Cutting performance1,2 min/m²
Cutting accuracy+/- 2 mm (depends on version)
Saw feedmotor with inverter
Measuring device availableyes
Control systemSPS
Applicationcutting large packages
Other
  • absorbing and tensioning system in the rail head, automatic tension of the saw chain by a gas spring
  • fully automatic chain lubrication – 20l aggregate
  • exhaust connections
  • saw chain monitoring system
Option
  • conveyors for waste transportation, containers for waste removal
  • pneumatic package holding down appliance on both sides of the guide bar
  • laser light for cut position
  • plastic curtains which blocks waste discarded during cutting
  • side package pressure pad
  • tablet remote control
Strengths
ultracut-smarowanie-m x
ultracut-smarowanie-m
Automatic lubrication of the cutting unit, 20l oil tank, precise regulation of oil dosage.
packcut-powierzchnia-m x
packcut-powierzchnia-m
Massive cutting chain (thickness of the link 3 mm) with 15 or 20 mm pitch for optimum removal of chips, scraper type execution guarantees smooth and level package surface after cutting.

Guide bars with stellite layer on one or both sides for optimum life-span, EXPERT-LINE execution available.
cutstar-prowadzenia-liniowe-m x
cutstar-prowadzenia-liniowe-m
Massive parallel precision linear bearing guide system for precise and stable guiding of the guide bar with saw chain.
x
cutstar-dociski-m x
cutstar-dociski-m
Package holding down appliance on both sides of the guide bar.

Watch here youtube icon
pc120-czujniki-m x
pc120-czujniki-m
Variety of safety protections and sensors which faciliate and improve work safety, such as:

- saw chain condition monitoring system
- package height control system
- automatic reference cut
packcut-odwiorowywanie-m x
packcut-odwiorowywanie-m
Prepared outputs for dust collecting system.
packcut-szyny-m x
packcut-szyny-m
Rails of any length.
packcut-pulpit-m x
packcut-pulpit-m
Ergonomic and clear control panels.
