CUTSTAR 11kW

CUTSTAR / 11 kW
cross-cut station with double-sided guidance of the cutting unit - travelling saw unit with a stationary package on the frame

Technical Data Spare parts
  • perfect solution for tight space limitation
  • double-sided guiding of the cutting unit guarantee cutting accuracy up to +/- 1 mm

Compact package cross-cutting station CUTSTAR 11kW, with one automatic cutting cycle. Perfect when processing space is limited in the hall, the package stands still and saw unit is movable.

An intelligent solution that guarantees high cutting accuracy at lower investment costs, meeting the highest PRINZ standards. Simple control that allows you to cut individual packages with high efficiency.

Ask for offer
Call Now 0048618638088
Technical data
Power11 kW
Motorelectric 3x400V / 50 Hz / 2920 rpm
Standard package size (W x H)120 x 120 cm, packages with a length of max. 6 m
Other dimensions availableno
Cut feedgear motor with inverter
Guiding of the cutdouble-sided
Saw typesaw unit moves / stationary package
Chain typescraper chain / carbide tipped chain
Guide barsolid steel, stellite inlay (EXPERT-LINE execution also available)
Cutting performance1,2 min/m²
Cutting accuracyup to +/- 1 mm
Saw feedmotor with inverter
Measuring device availableyes
Control systemSPS
Applicationcross-cutting of packages with accuracy up to +/- 1 mm while room space is limited
Other
  • absorbing and tensioning system in the rail head (spring),
  • automatic saw chain lubrication, with gear oil pump and 5l oil tank
  • exhaust connection, Ø150
  • measurement system (draw-wire encoder), with the possibility of programming eight cutting lengths
  • automatic one cutting cycle
Option
  • conveyors for waste transportation
  • containers for waste removal
  • pneumatic package lift for kerf opening
  • pneumatic pressure pads on both sides of the guide bar
  • electrically driven plastic curtains blocking material waste
  • laser light for cut position
Strengths
cutstar11kw-smarowanie-m x
cutstar11kw-smarowanie-m
Automatic lubrication of the cutting unit, gear oil pump, 5l oil tank, precise regulation of oil dose.
cutstar11kw-uklad-tnacy-m x
cutstar11kw-uklad-tnacy-m
Massive cutting chain (thickness of the link 3 mm) with 15 or 20 mm pitch for optimum removal of chips, scraper type execution guarantees smooth and level package surface after cutting.

Guide bars with stellit layer on one or both sides for optimum life-span.

EXPERT-LINE execution also available.
cutstar11kw-prowadzenia-m x
cutstar11kw-prowadzenia-m
Double-sided guiding for precise feed of the cutting unit.
x
cutstar-dociski-m x
cutstar-dociski-m
Package holding down appliance on both sides of the guide bar.

Watch here youtube icon
cutstar11kw-zabezpieczenia-m x
cutstar11kw-zabezpieczenia-m
Variety of safety measures and sensors which faciliate and improve work safety.
cutstar11kw-odwiorowywanie-m x
cutstar11kw-odwiorowywanie-m
Prepared output for dust collecting system, Ø150.
cutstar11kw-rama-m x
cutstar11kw-rama-m
Massive construction of frame and saw unit worked out for many years of servicing, I-beams 330 mm.
cutstar11kw-profile-m x
cutstar11kw-profile-m
Horizontal joists and vertical profiles for accurate positioning of packages when loading with a forklift.
cutstar-systemy-transportu-odpadow-m x
cutstar-systemy-transportu-odpadow-m
Waste transport systems, chain conveyors, belt conveyors, longitudinal, cross, diagonal, containers.

Standard height of the table frame: 1,6 m, allows waste to be discharged directly to containers placed under the frame or to a belt/chain conveyor.
cutstar11kw-pulpitt-m x
cutstar11kw-pulpitt-m
Functional and clear steering consoles / touch screen.
cutstar11kw-laser-m x
cutstar11kw-laser-m
Laser light showing cut position.
cutstar11kw-glowica-m x
cutstar11kw-glowica-m
Massive rail head with shock absorption and saw chain tension.
cutstar-wprowadzanie-pod-katem-m x
cutstar-wprowadzanie-pod-katem-m
The guide bar starts to cut the package at a slight angle, ensuring smoother "cutting into" the package upper layers and reducing cutting unit parts wear.
x
cutstar11kw-podnoszenie-rzazu-m x
cutstar11kw-podnoszenie-rzazu-m
Pneumatic system for kerf opening after cutting.

Watch here youtube icon
cutstar-kurtyny-swietlne-m x
cutstar-kurtyny-swietlne-m
Light curtains that increase machine operation safety (option).
Video

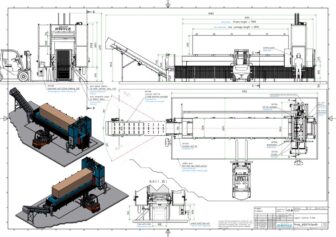

Download
