mobilCUT high line

mobilCUT high line / 11 kW
stationary machine with arch guiding frame

Technical Data Spare parts
  • electric feed of cutting unit
  • manual feed of saw (left / right)

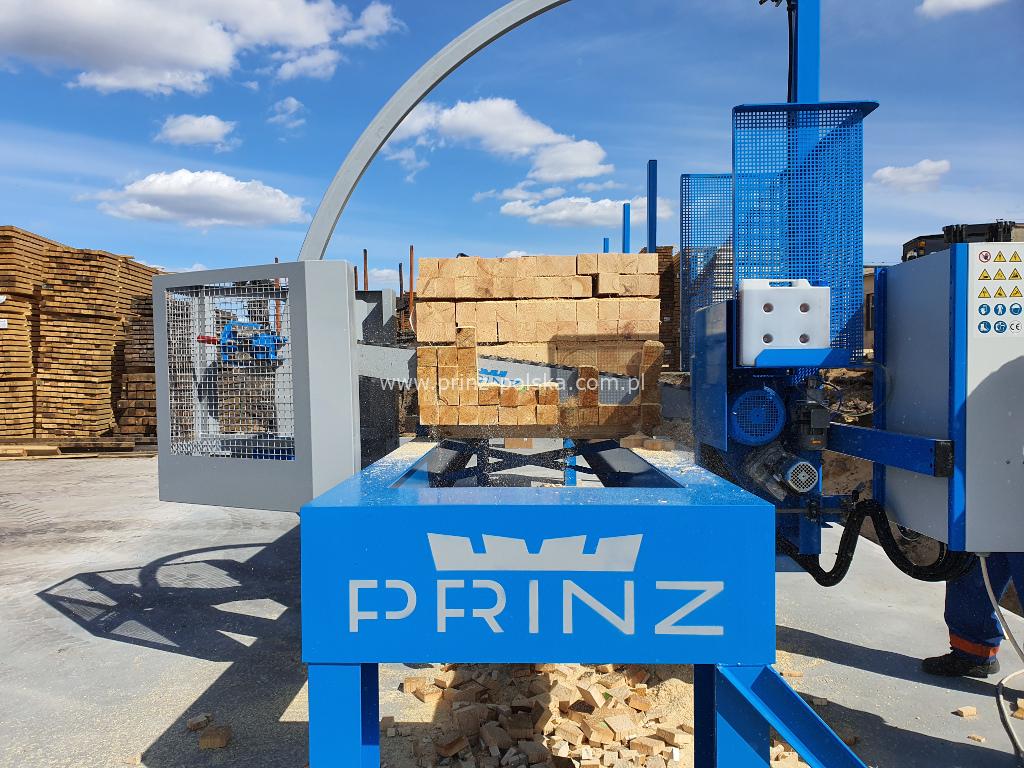

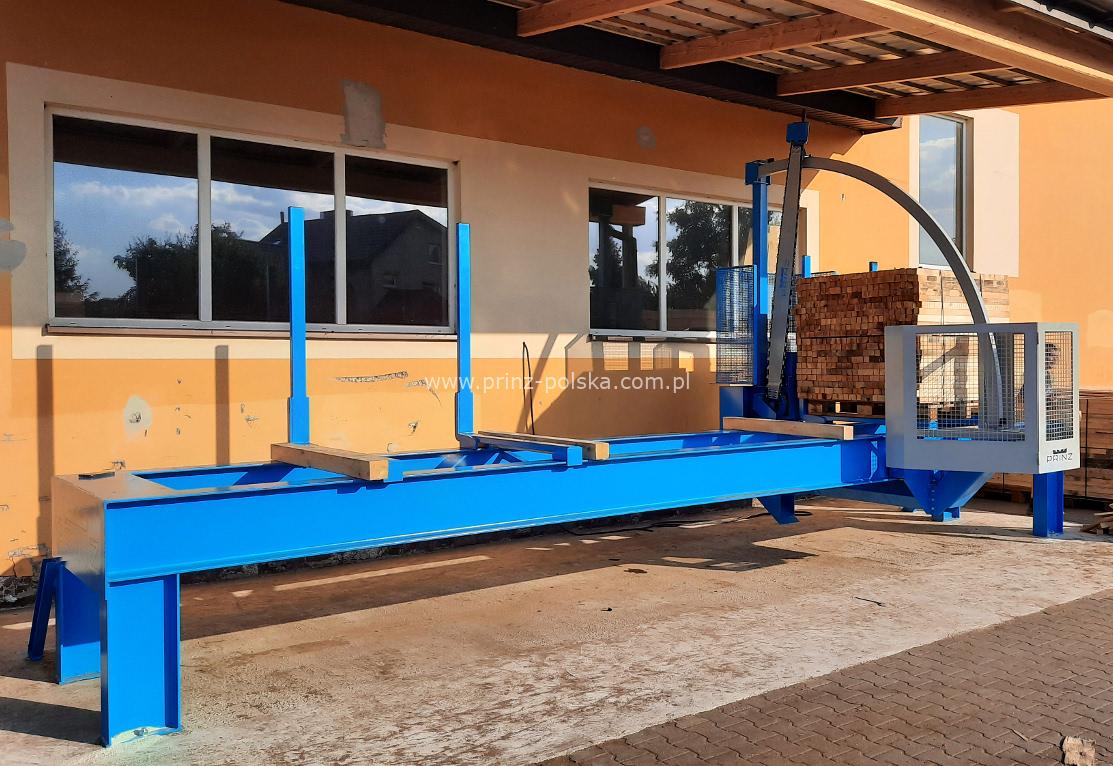

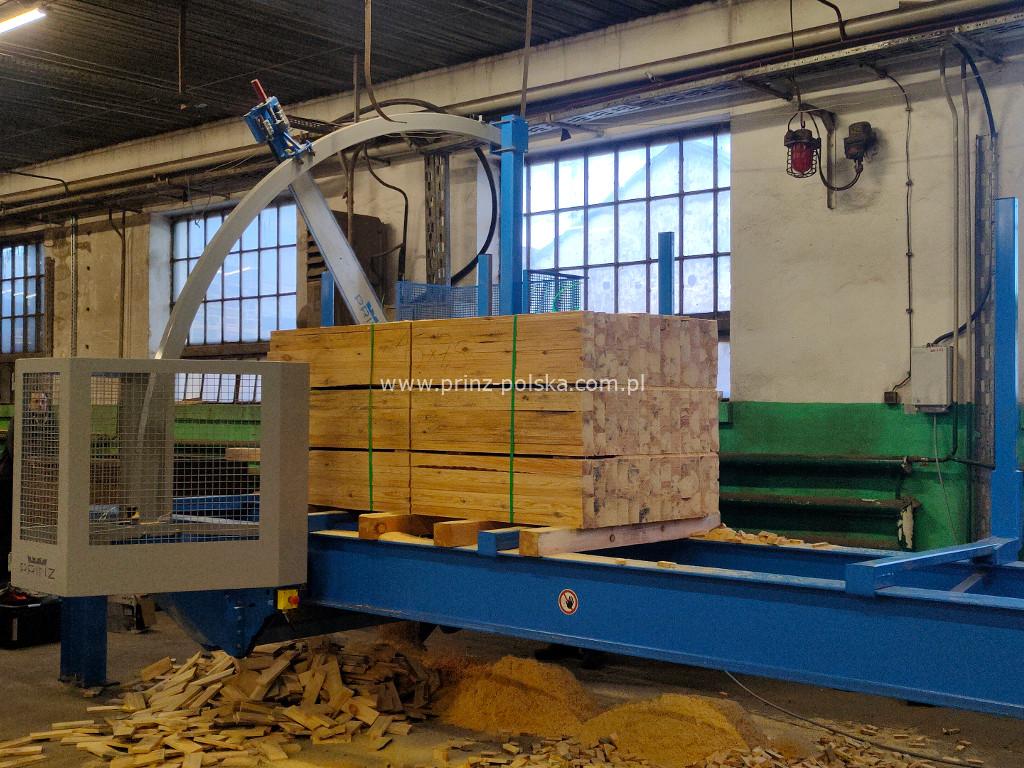

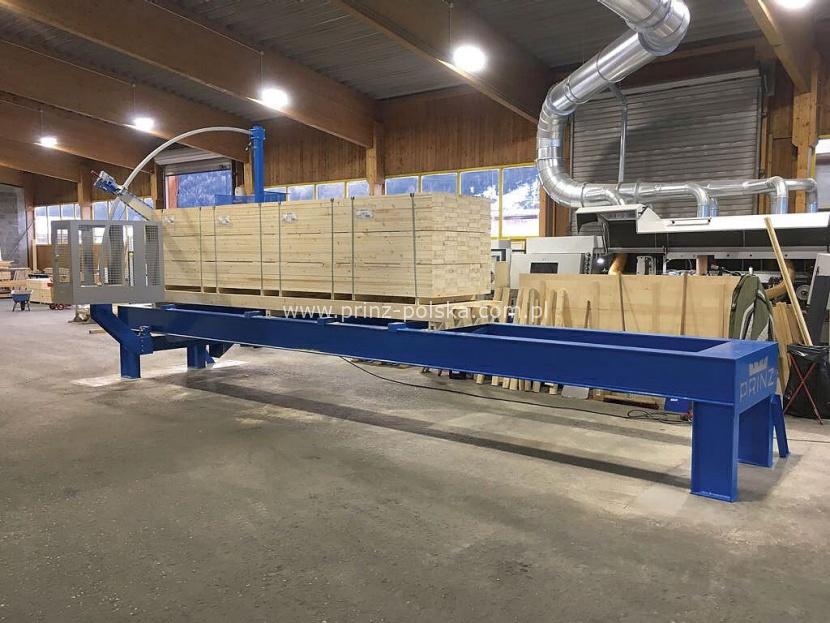

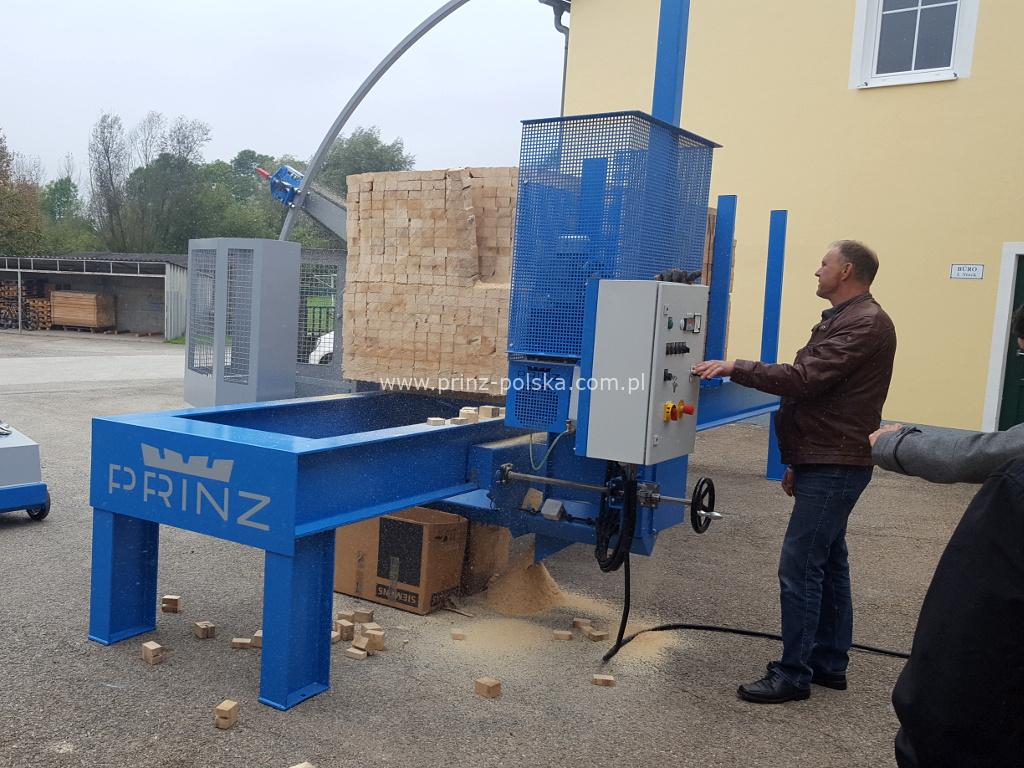

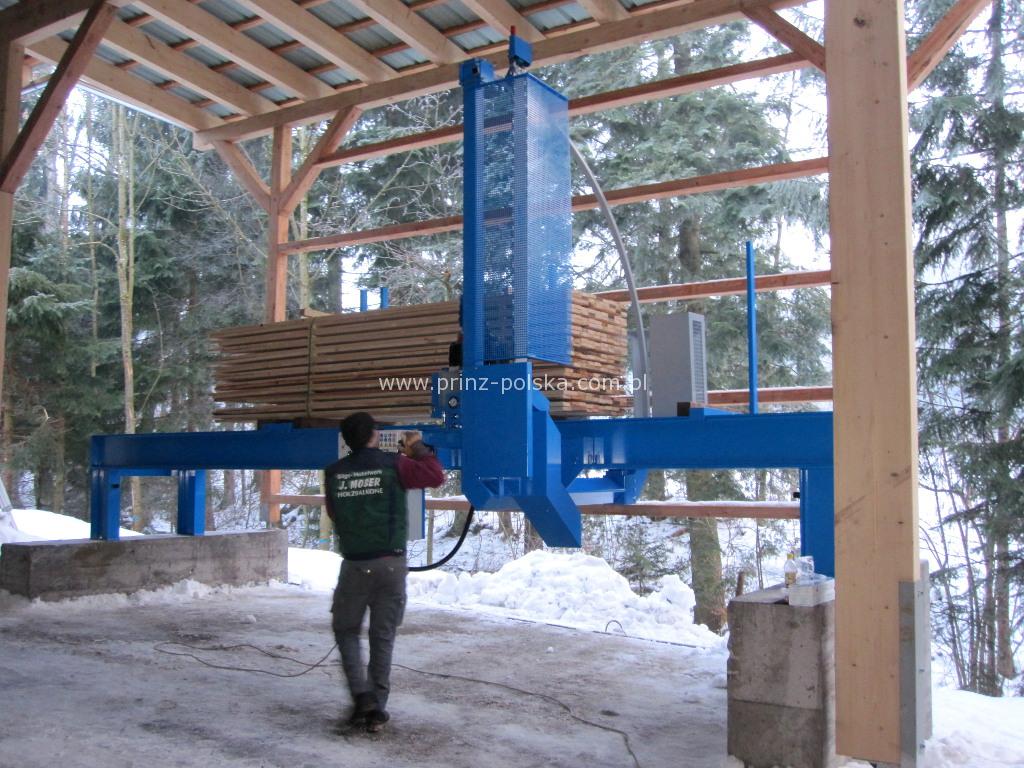

Stationary machine mobilCUT high line for cross-cutting of packages with max. dimensions 130 × 130 cm (W x H) with movable cutting unit.

Ideal solution when room space is limited. Easy and quick installation. Perfectly fills the price gap between cheaper portable saws and automatic stationary lines.

Cutting unit lowered / raised electrically using joystick, manual saw feed left / right using a crank.

Ask for offer
Call Now 0048618638088
Technical data
Power11 kW
Motorelectric 3x400V / 50 Hz / 2920 rpm, direct power transmission
Standard package size (W x H)130 x 130 cm, packages with a length of max. 6m
Other dimensions availableno
Cut feedelectric (frequency converter, speed adjusted by a potentiometer)
Guiding of the cutrigid arch guiding 100 x 50 mm, high stability of cut
Saw typesaw moves with operator / stationary package
Chain typescraper steel / carbide tipped chain
Guide barsolid steel, high frequency hardened or with additional one / two-side stellite plating
Cutting performance1,5 min/m²
Cutting accuracy+/- 2 mm
Saw feedmanual using a crank
Measuring device availableyes

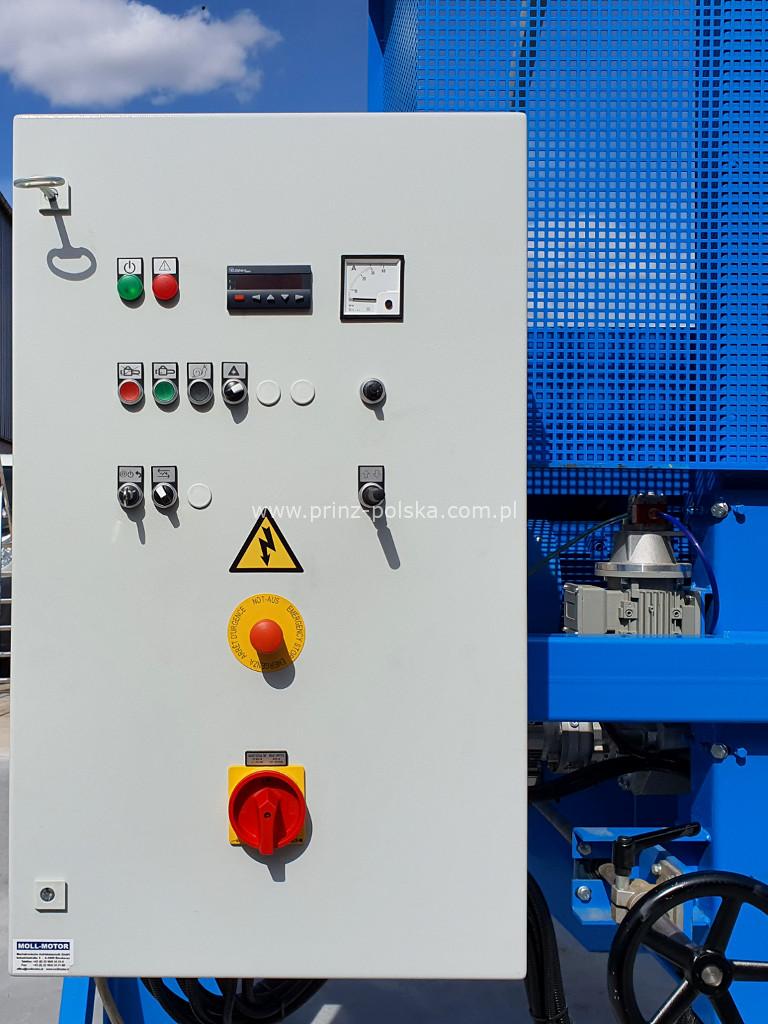

Control systemmanual using buttons / joysticks
Applicationcross-cutting of packages with accuracy +/- 2 mm while room space is limited
Other
  • massive frame construction – 330 mm I-beams
  • absorbing and tensioning system in rail head, toolless chain tension
  • fully automatic chain lubrication, gear oil pump driven by an additional 120 W motor, precise regulation of oil dose due to control valve, 5l oil tank
  • LED measuring length readout
Option
  • laser light for cut position
  • conveyors for waste transportation
  • containers for waste removal
  • output for dust collecting system
  • higher frame construction
  • pneumatic pressure pad to maintain the package in position during the cutting process
  • kerf opening system for trouble-free withdrawal of the guide bar
  • additional cable guide, which eliminates the need to install a suspended bar with sliding cables “following” the mobile saw unit of the machine



Strengths
mobilcut-pakiet-m x
mobilcut-pakiet-m
Massive cutting chain with 20 mm pitch for optimum removal of chips, guarantees smooth and level surface after cutting.

Solid steel, high frequency hardened guide bars or with additional one or two-side stellite plating.
mobilcut-luk-prowadzacy-m x
mobilcut-luk-prowadzacy-m

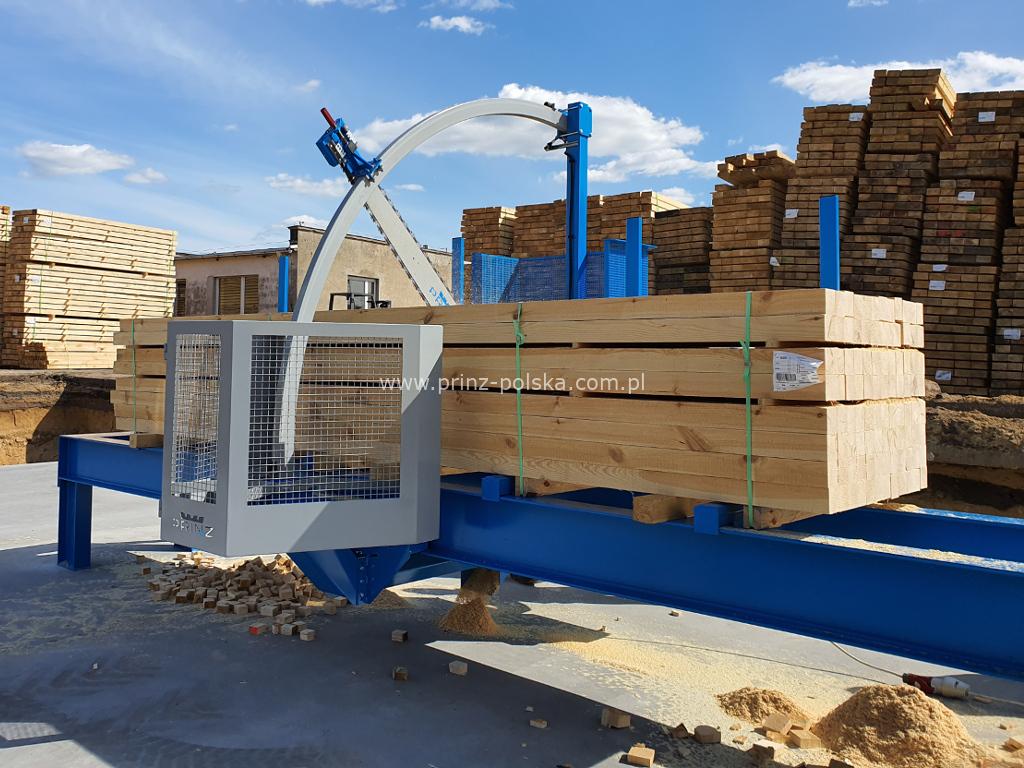

Massive arch guiding 100 x 50 mm for better and more accurate guiding of the cutting unit, cutting accuracy: +/- 2 mm.
mobilcut-glowica-m x
mobilcut-glowica-m
Rail head with absorbing and tensioning system which prevents chain breaking, easy tension of saw chain.
x
Saw driven in both directions using a crank. Accurate positioning and blocking of the saw before cutting (stationary material).
mobilcut-pionowe-profile-m x
mobilcut-pionowe-profile-m
Vertical supports for easy and precise positioning of the packages during loading with a forklift.
x

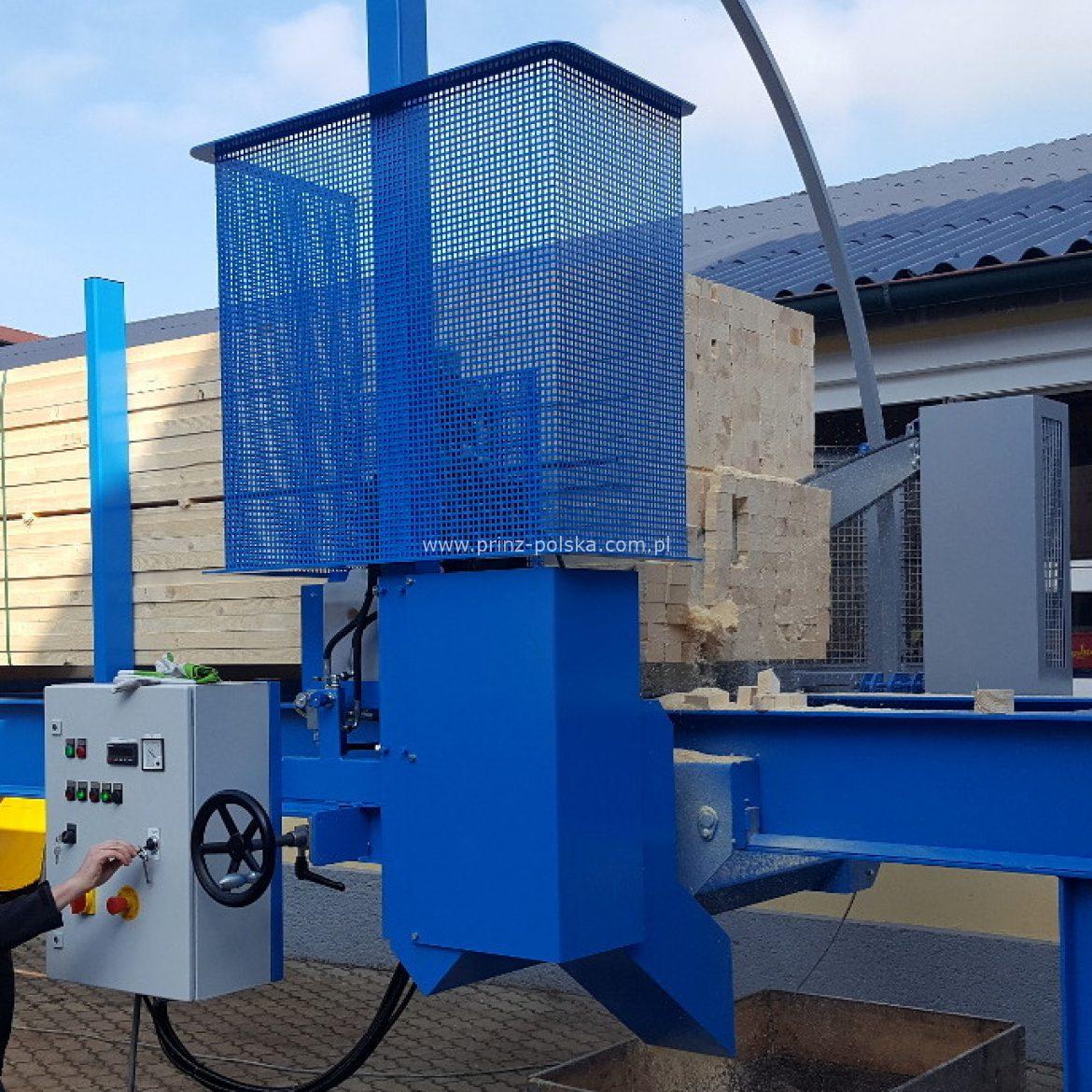

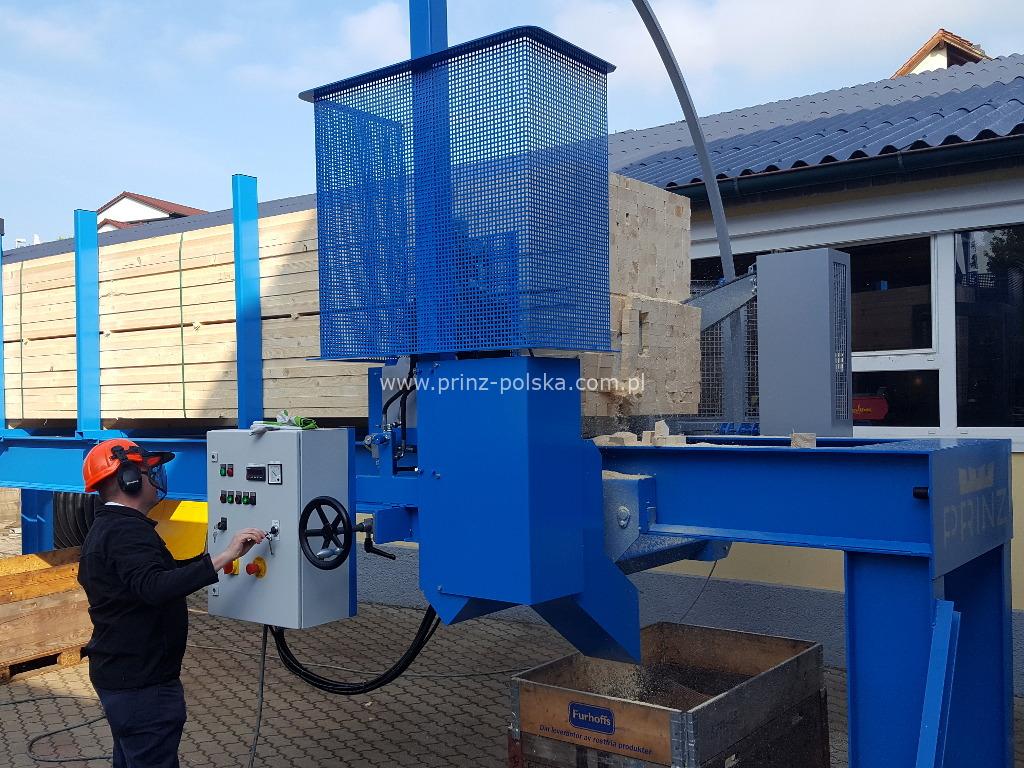

Electric feed of the cutting unit, controlled from the desktop using joystick, speed of feed adjusted by a potentiometer.
x
mobilcut-docisk-m
Pneumatic pressure pad to maintain the package in position during the cutting process (option).

Watch here youtube icon
x
mobilut-otwieranie-rzazu-1
Kerf opening system for trouble-free withdrawal of the guide bar (option).

Watch here youtube icon
mobilcut-laser-m x
mobilcut-laser-m
Laser light showing cut position (option).
mobilcut-odpylanie-m x
mobilcut-odpylanie-m
Output for dust collecting system (option).
mobilcut-prowadnik-m x
mobilcut-prowadnik-m
Additional cable guide, which eliminates the need to install a suspended bar with sliding cables "following" the mobile saw unit of the machine (option).
