PROFICUT light

PROFICUT light okrąglak

PROFICUT light / 7,5kW
industrial chainsaw for cutting of roundwood and packages

  • equipped with 2 stabilizers which stiffen the cutting unit during cutting
  • lubrication from the side of cutting material

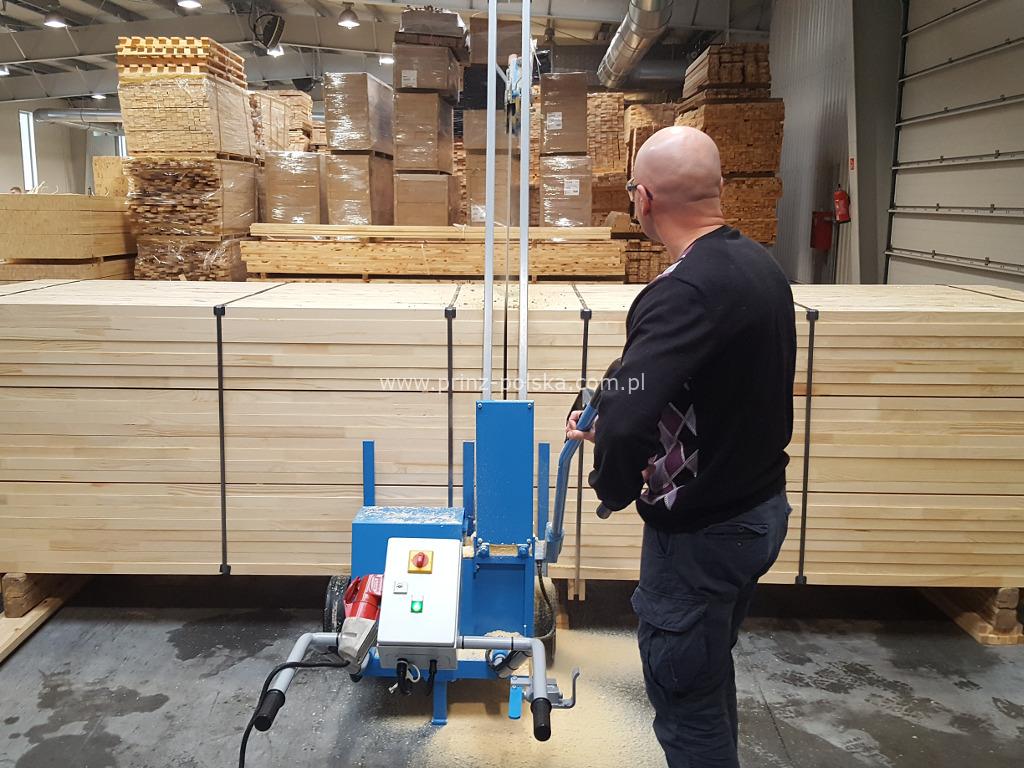

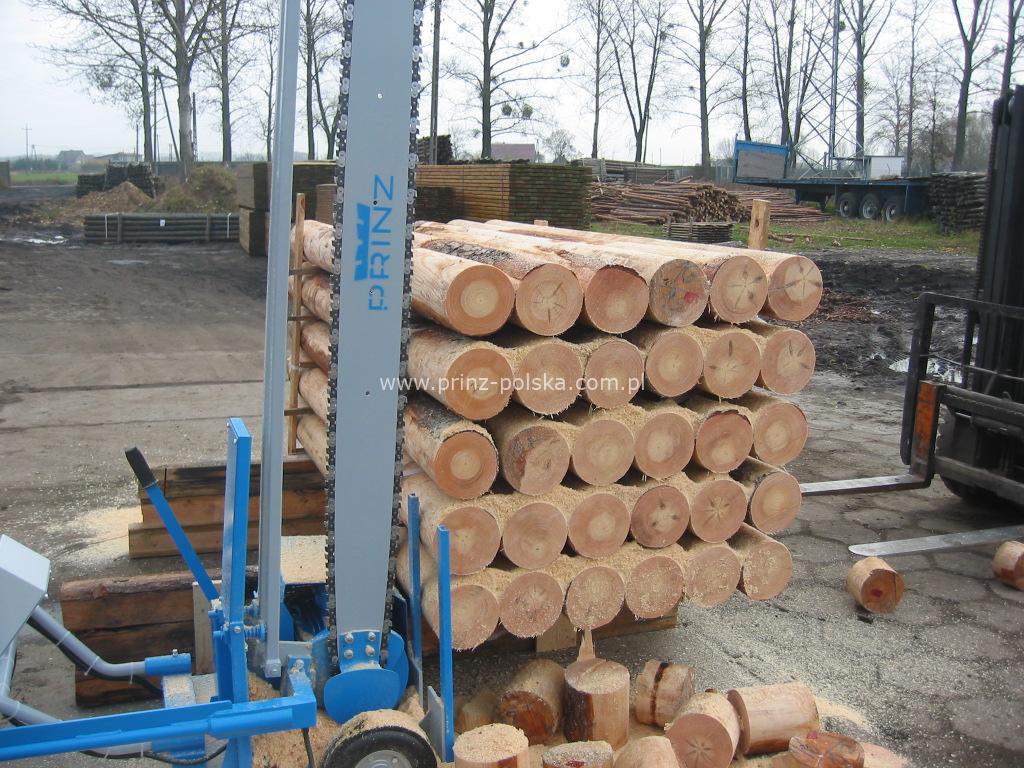

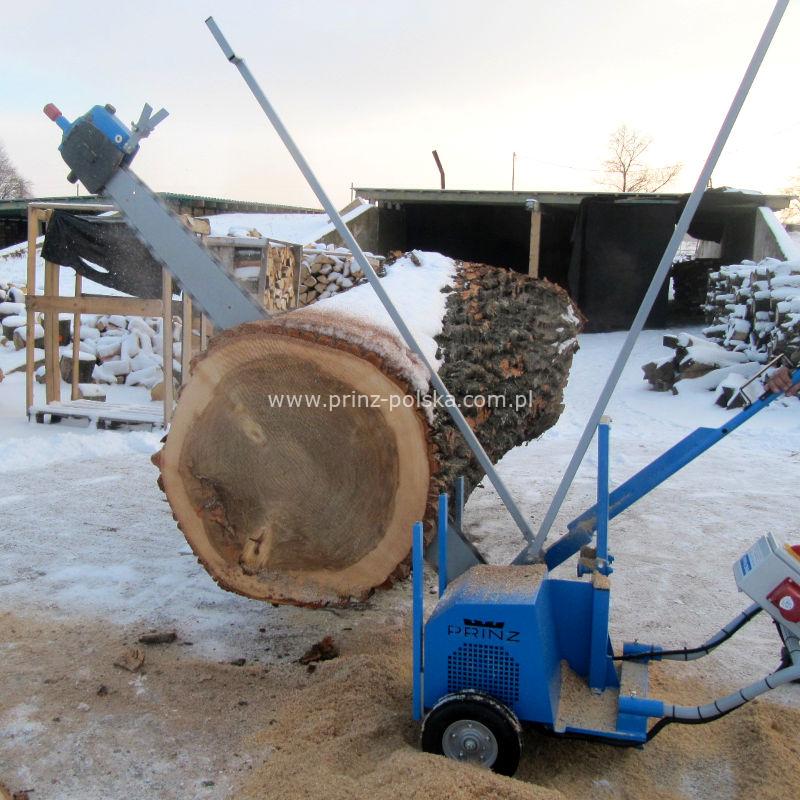

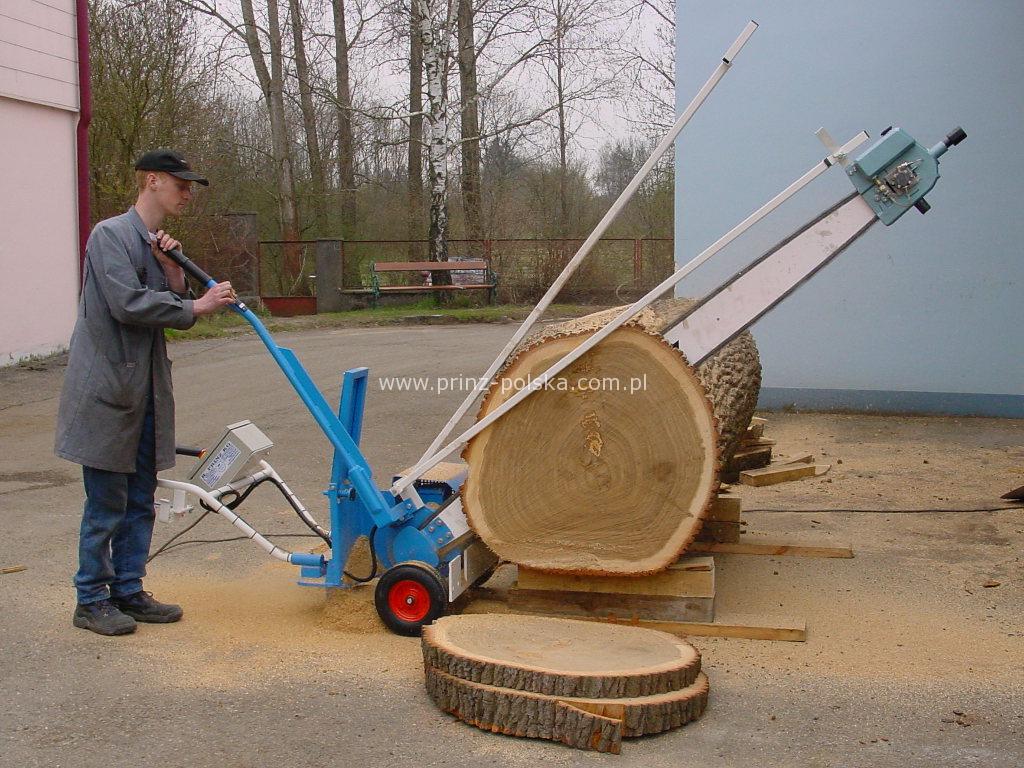

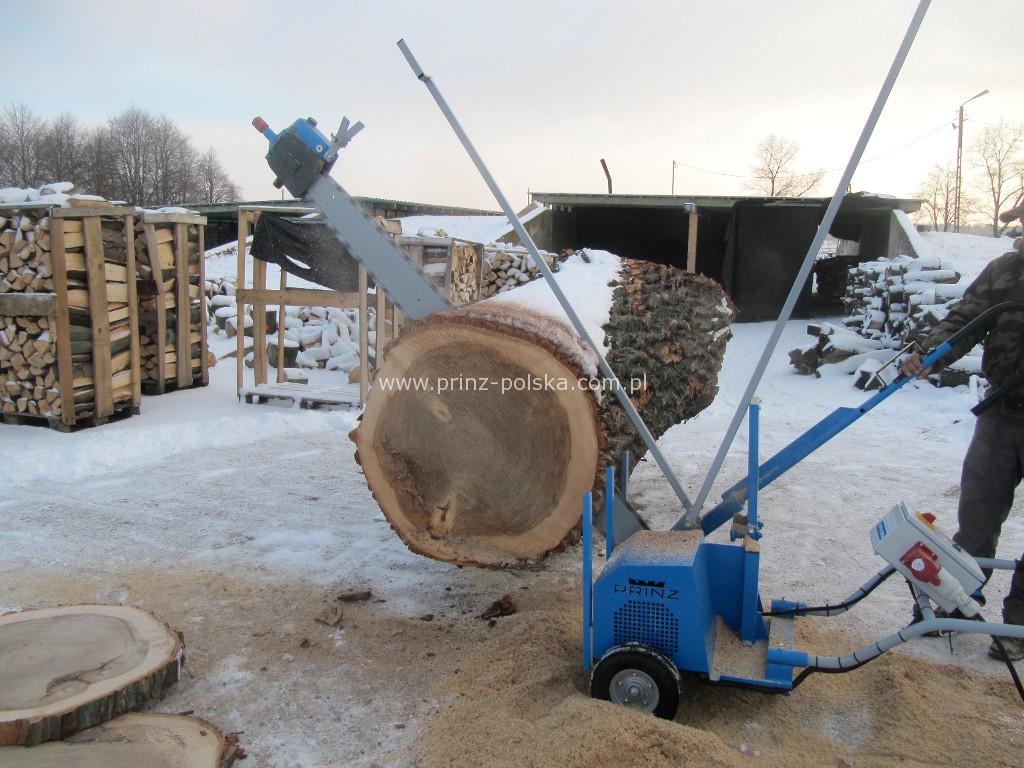

Mobile, electrically powered chainsaw PROFICUT light is used to cut round timber and lumber packages. It enables woodworking plants to cut logs accurately and efficiently without the necessity to invest a lot of money.

The main advantages of the machine include: one-man servicing, energy efficiency and easy manoeuvring. It is equipped with high-frequency hardened or stellite armoured guide bars and chipper saw chains that guarantee efficient work.

Technical data
Power7,5 kW
Motorelectric 3x400V / 50 Hz / 2920 rpm, direct power transmission
Standard diametermax. 170cm (guide bar 200cm)
Other dimensions availableyes (guide bar: 100, 120, 150, 170cm)
Cut feedmanual
Guiding of the cuttwo stabilization bars for better accuracy of cutting and as a operator’s protection
Saw typemobile saw / stationary material
Chain typescraper chain / chipper chain / carbide tipped chain
Guide barsolid steel, high frequency hardened or with additional one or two-side stellite plating
Cutting performance2 min/m²
Advancing system wood/sawmanual (mobile saw)
Cutting accuracy+/- 5mm
Saw/material drivemanual
Measuring device availableno
Control systemrelay, automatic switch

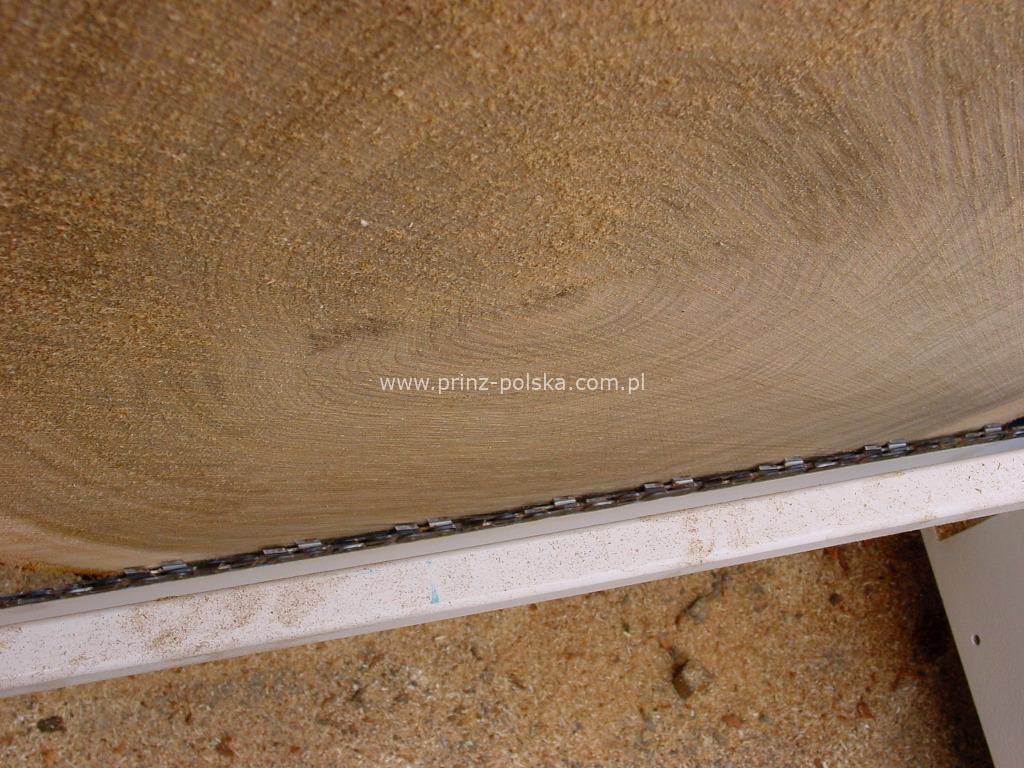

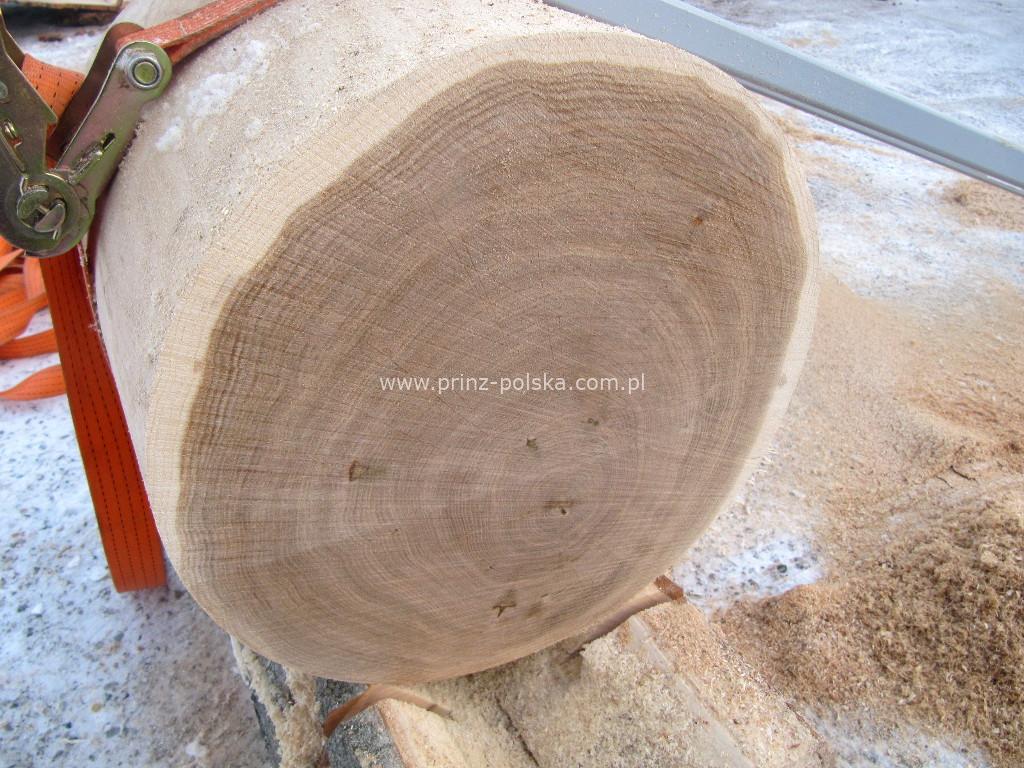

Applicationclean cuts on logs, cutting on the spot
Other
  • weight: approx. 170 kg
  • wide front plate for easy, perpendicular positioning of the machine, height 750mm
  • rail head chain tensioner, fully automatic chain lubrication, easy chain tension, gear oil pump, precise oil dose regulation due to control valve, lubrication from cut material side extends life-span of cutting unit parts
  • comfortable grip to lower / raise the cutting unit, especially long guide bars
  • full-tire wheels, easy transport of the machine
Option
  • petrol version PROFICUT benzin
Strengths
PROFICUT light głowica
Massive, cast iron rail head which includes:

- comfortable chain tension system (red knob)
- saw chain vibration damping system (through pulley)
- fully automatic chain lubrication - oil tank, gear oil pump, precise oil dose regulation due to control valve; lubrication from the cut material side
PROFICUT light łańcuchy

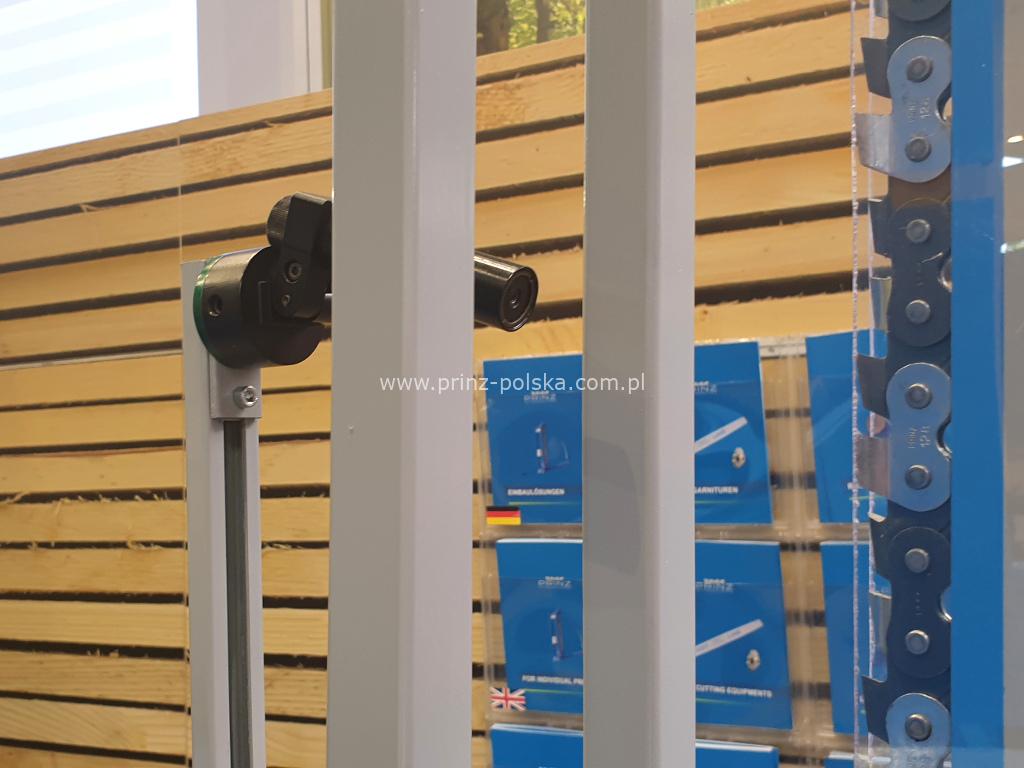

Massive saw chain with 20mm pitch for optimum removal of chips, guarantees efficient cutting of logs.

Solid steel, high frequency hardened guide bars or with additional one or two-side stellite plating for optimal lifespan.
PROFICUT light stabilizator
Two stabilization bars for better guiding of the bar, cutting accuracy: +/- 5mm with level surface.

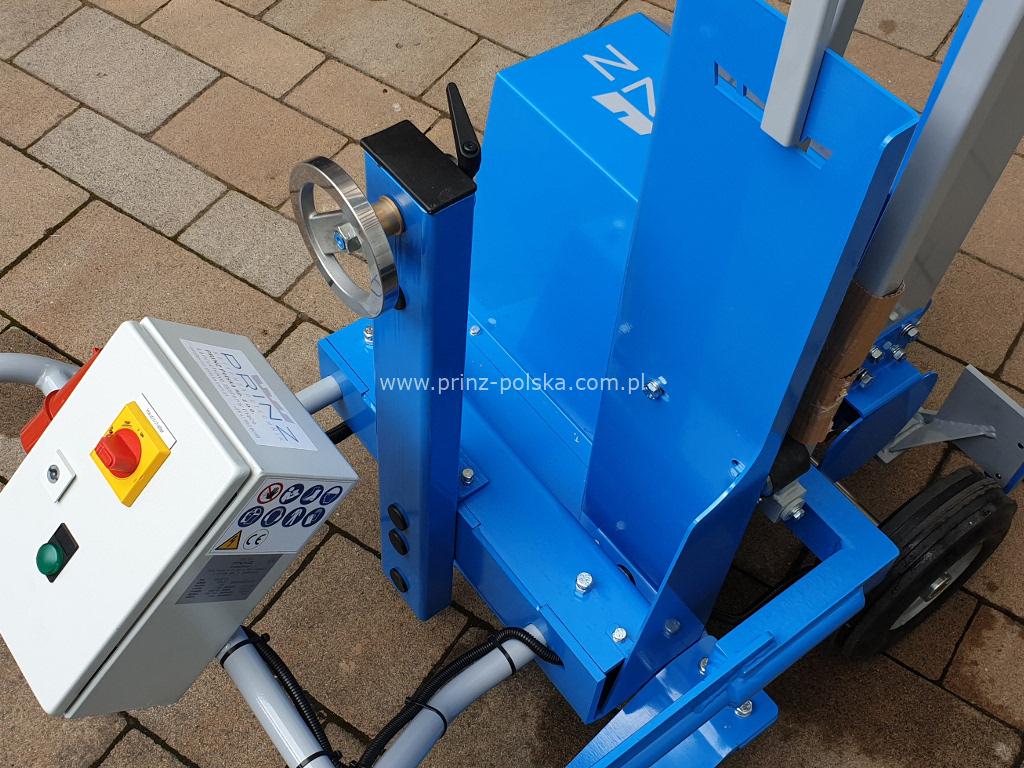

PROFICUT zderzak
Wide front plate for easy perpendicular positioning of the machine in relation to the material, 750mm height.

Solid, welded construction, weight approx. 170kg.
PROFICUT uchwyt
Comfortable grip to lower / raise the cutting unit, especially long guide bars.

Additional switch in the handle for operator safety.
PROFICUT light koła
Full-tire wheels, easy transport of the machine.
Video

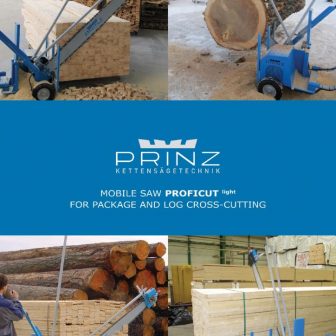

Download
