ECOSTAR

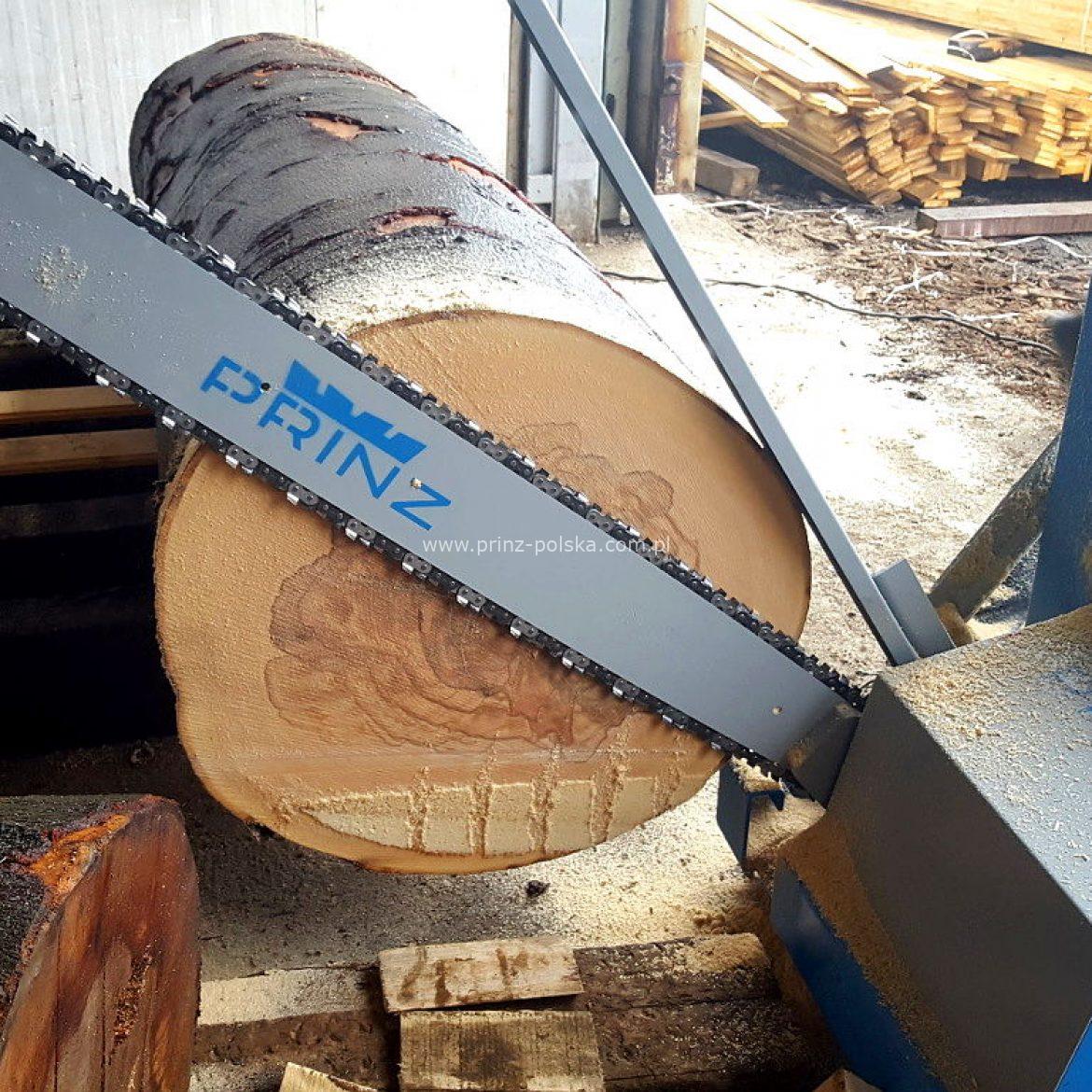

ecostar-main-okragle

ECOSTAR / 7,5 kW
industrial chainsaw for cross-cutting of roundwood and packages

  • equipped with one stabilizer which stiffens the cutting unit during cutting
  • lubrication from large, 5l tank with oil dose regulation

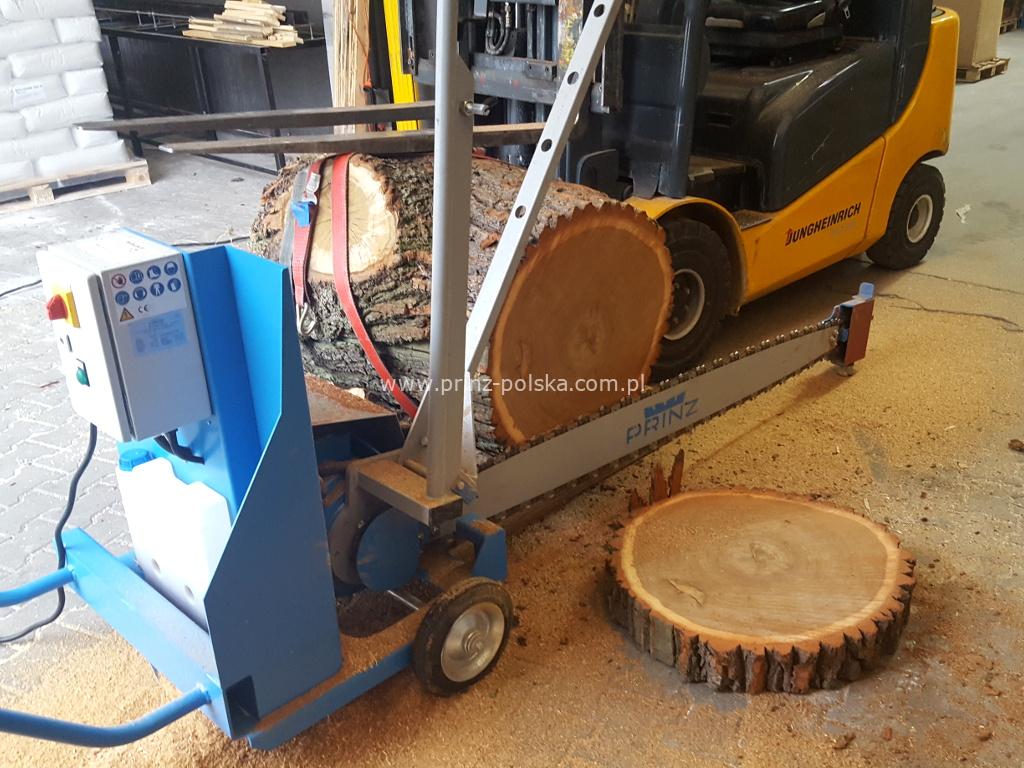

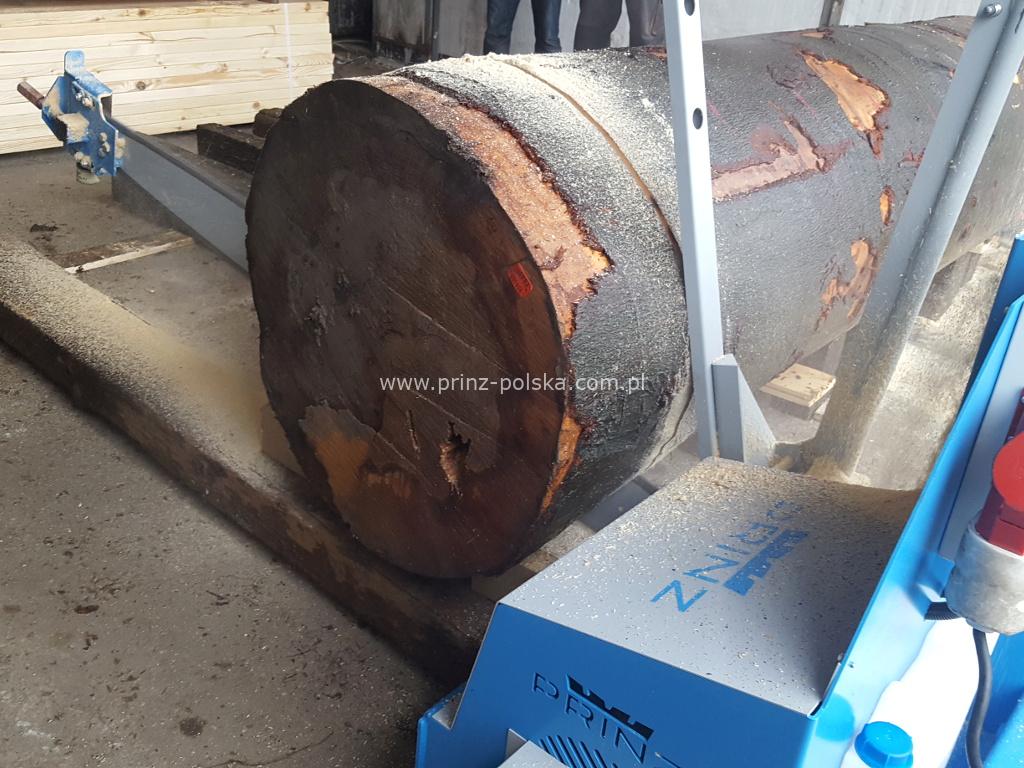

Mobile electric ECOSTAR chainsaw for cross-cutting of round timber and packages. The basic model among mobile chainsaws, which enables material cutting without significant investment expenditures. The optimal price to capabilities ratio.

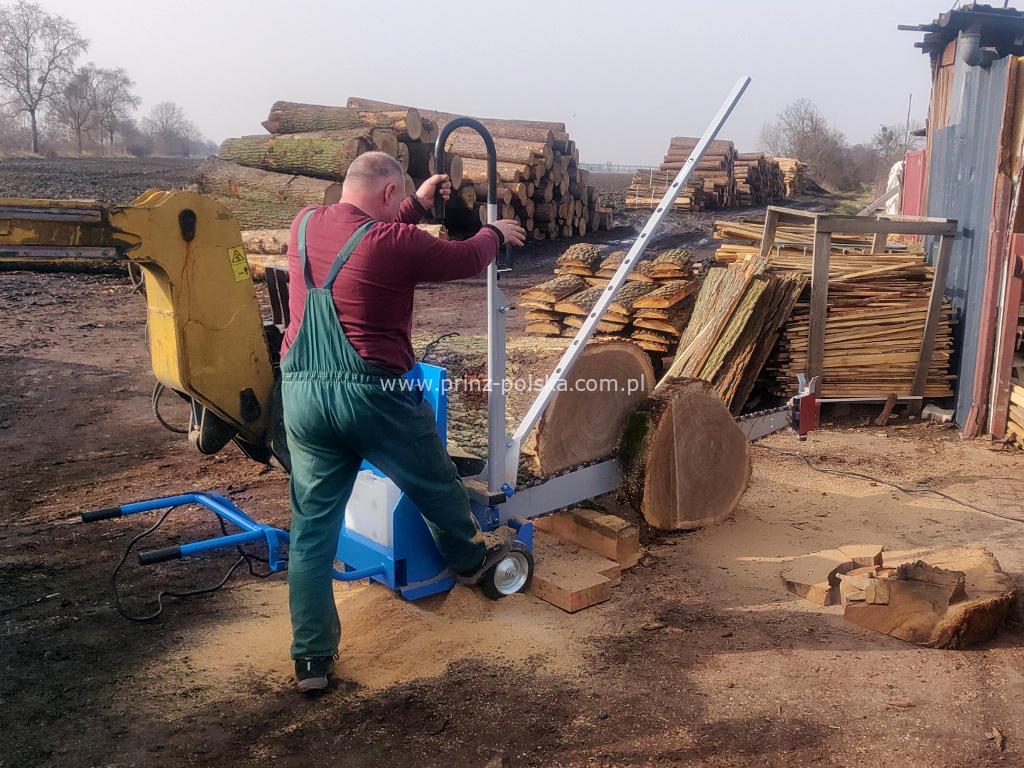

The greatest advantages of the machine include: one-person operation, high accuracy along with efficiency of cutting and work safety – does not require chainsaw permission. Equipped with induction hardened or stellited guide bars and massive saw chains for precise cutting.

Technical data
Power 7,5 kW
Motor electric 3×400 V / 50 Hz / 2910 rpm, direct power transmission

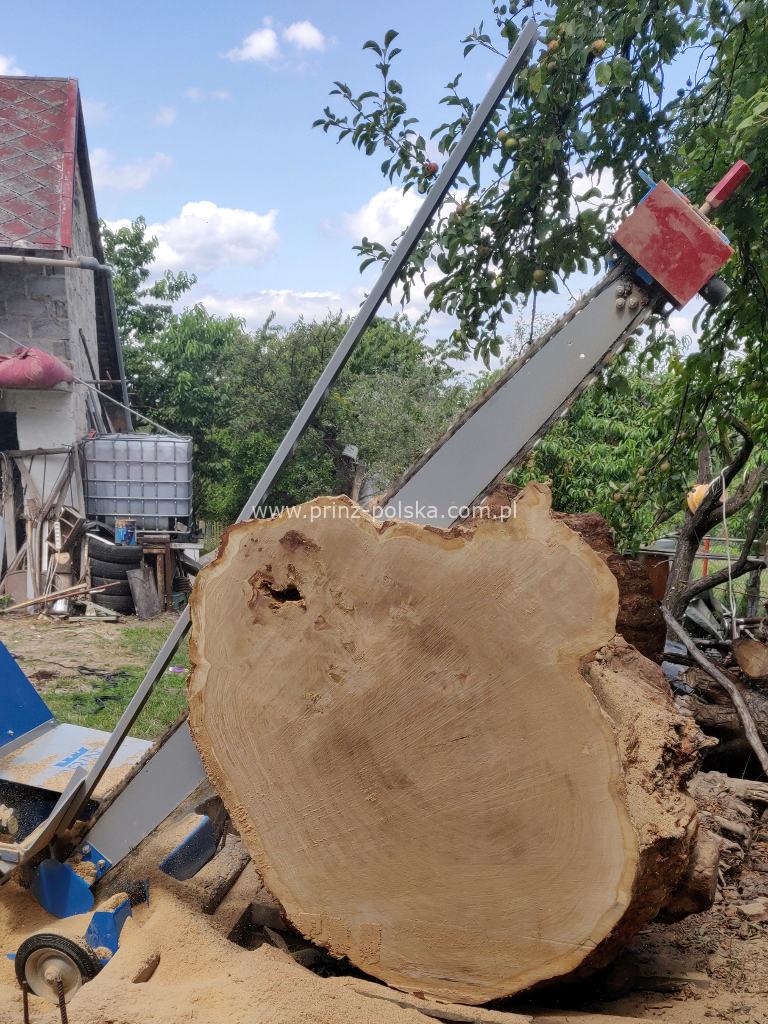

Standard log diameter max. 135 cm (guide bar 170 cm) with 7,5 kW motor
Other dimensions available yes (guide bars: 100, 120, 150)
Cut feed manual
Guiding of the cut stabilization bar for better accuracy of cutting and used as an operator’s protection
Saw type mobile saw / stationary material
Chain type scraper / chipper / carbide-tipped chain
Guide bar solid steel, high frequency hardened or with additional one or two-side stellite plating
Cutting performance 1,8 min/m²
Cutting accuracy +/- 4 mm, on level surface
Saw/material drive manual
Measuring device available no
Control system relay, automatic star-delta switch

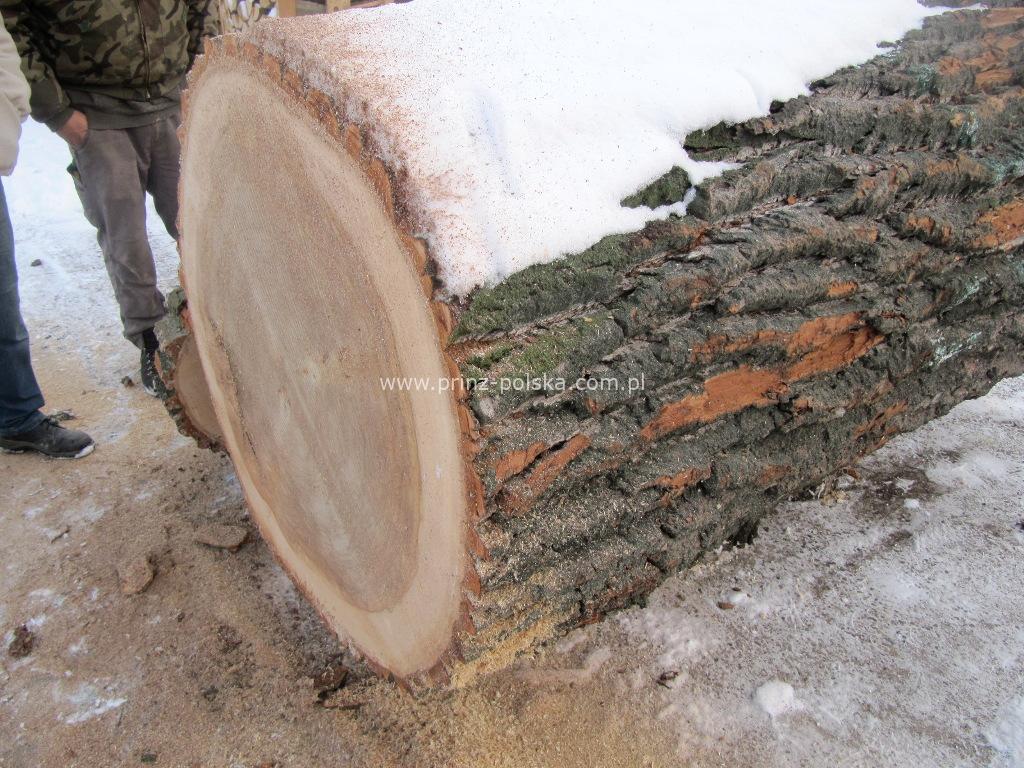

Application clean cuts on packages and logs, cutting on the spot
Other
  • weight: approx. 170 kg
  • wide front plate for easy, perpendicular positioning of the machine
  • absorbing and tensioning system in rail head
  • easy, toolless saw chain tension and replacement
  • fully automatic chain lubrication, 5l oil tank, gear oil pump, precise regulation of oil dose due to control valve
  • comfortable grip to lower / raise the cutting unit, especially long guide bars
  • full-tire wheels, easy transport of the machine
Strengths
eco-glowica
Massive, steel rail head with saw chain damping and tensioning system (tension spring) and pulley.

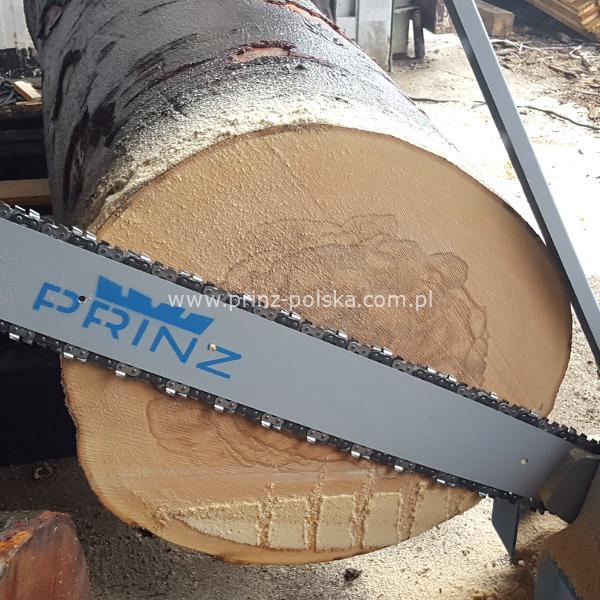

ecostar-ciecie
Massive cutting chain with 20 mm pitch for optimum removal of chips and maximum performance. Chains that guarantee smooth and level surface after cutting also available.

Definitely longer durability and visibly better material surface after cutting compared to chains with a pitch of 0,404".
ecostar-stabilizator

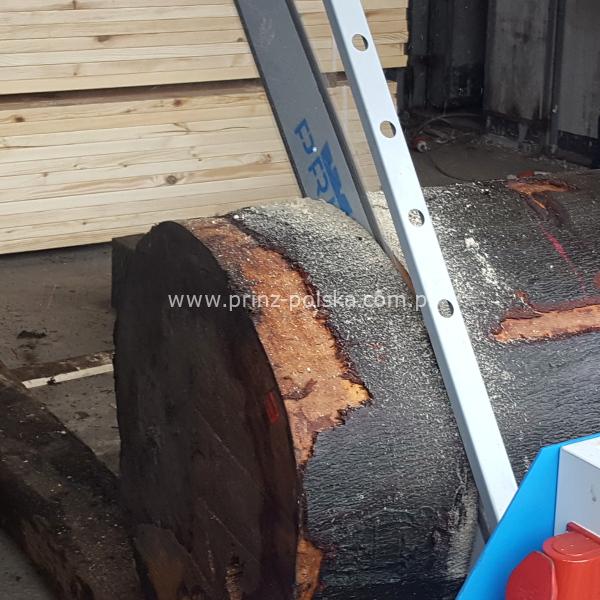

Stabilization bar for better guiding of the cutting unit, cutting accuracy: +/-4 mm, on level surface.
ECOSTAR smarowanie
Fully automatic chain lubrication, 5l oil tank, gear oil pump, precise regulation of oil dose due to control valve.

Solid, welded construction, weight approx. 170 kg.
ECOSTAR uchwyt

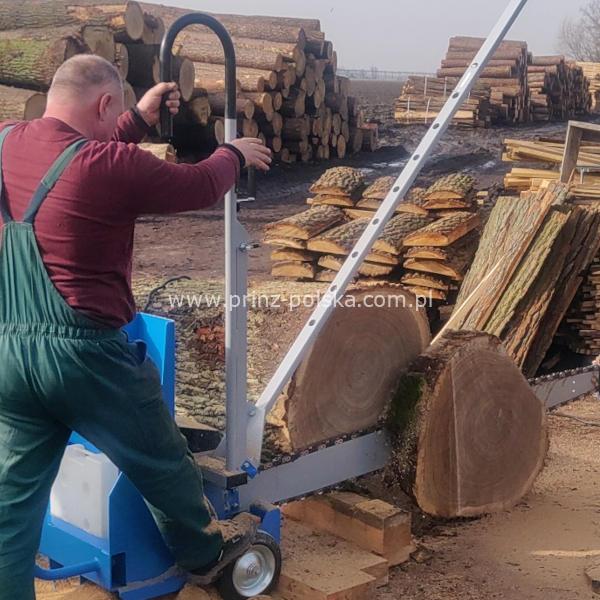

Comfortable grip to lower / raise the cutting unit, especially long guide bars.

Additional switch in the handle for operator's safety.

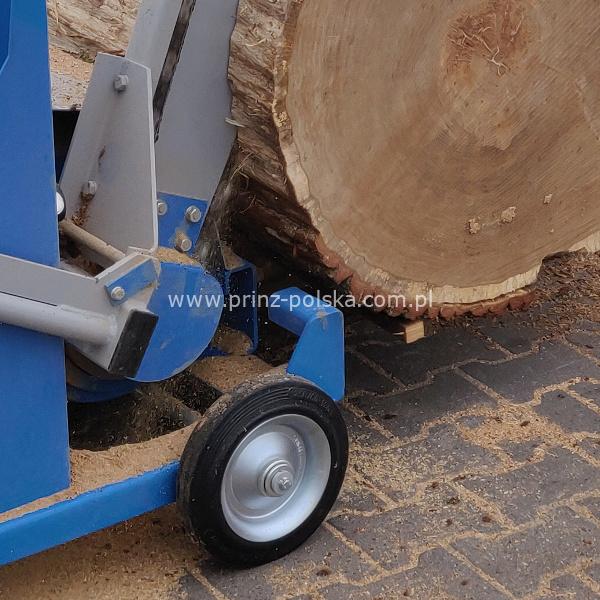

ecostar-kola1
Full-tire wheels, easy transport of the machine.
skrzynka elektryczna
Siemens electrical components.
Video

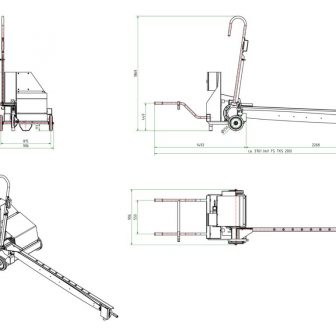

Download
