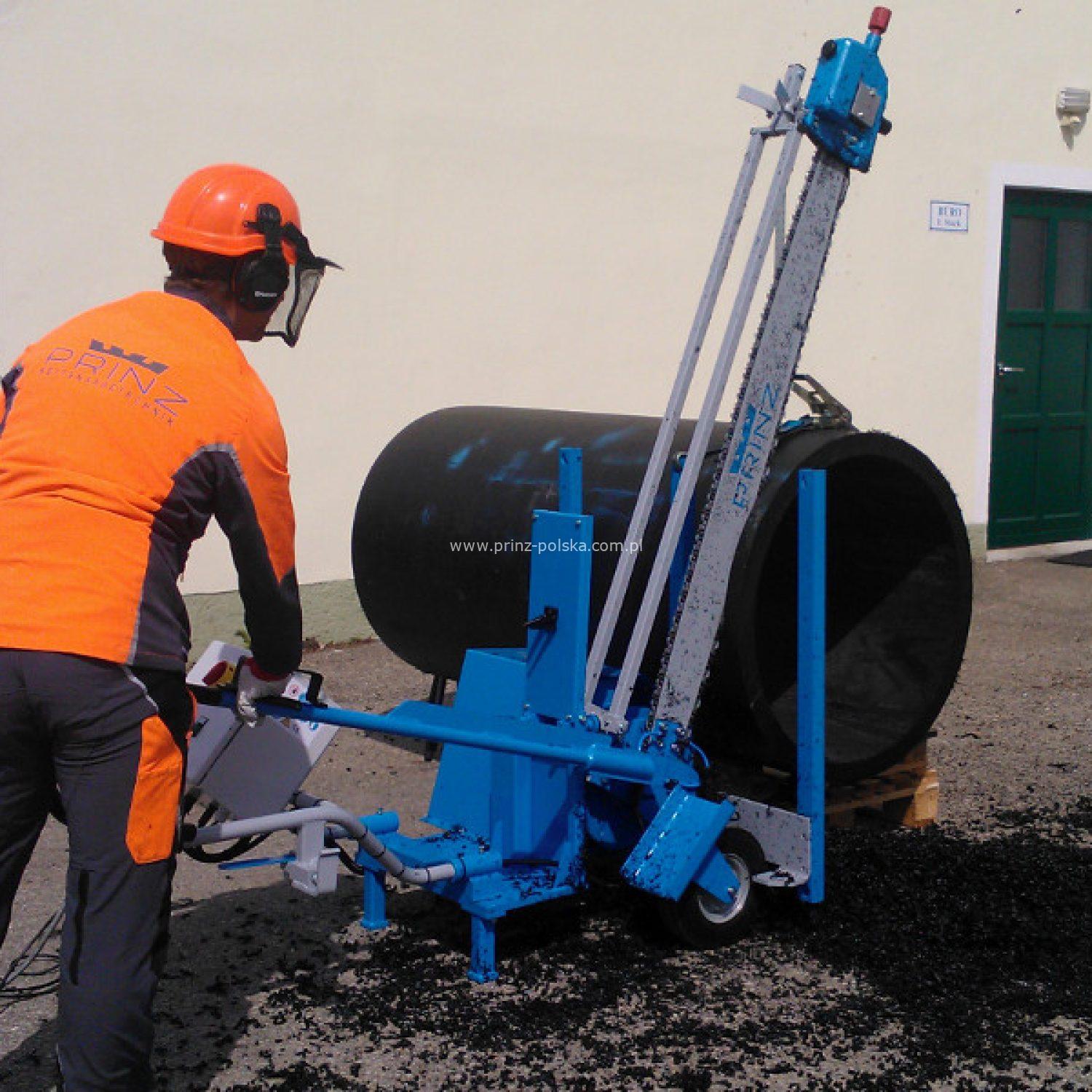

profiCUT PE strong

profiCUT PE strong / 11 kW
industrial saw for cutting plastic pipes of bigger diameters

Technical Data Spare parts
  • equipped with two stabilizers which stiffens the cutting unit during cutting, accuracy +/- 5 mm on level surface
  • 11 kW motor, guide bar with 250 cm cutting length

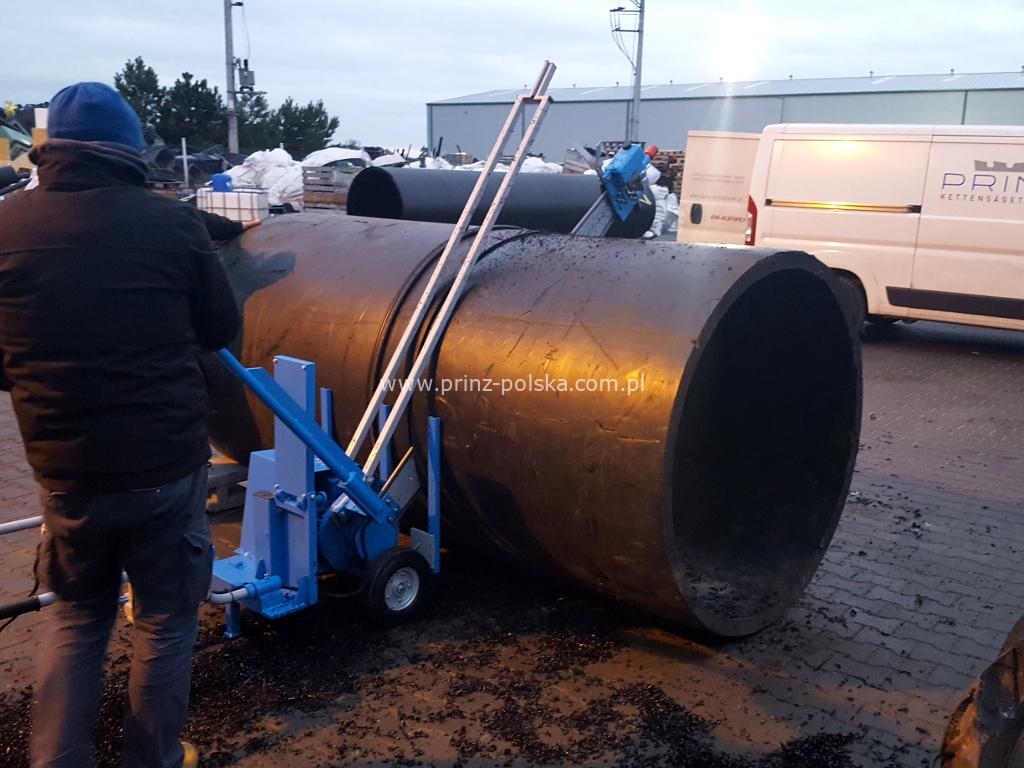

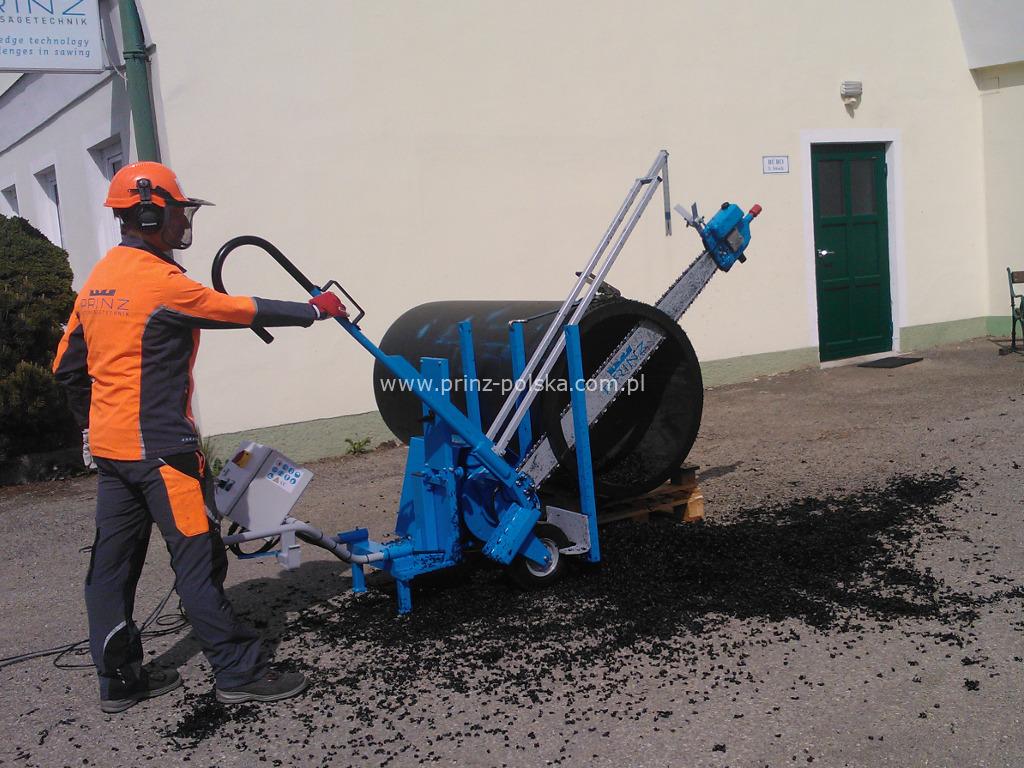

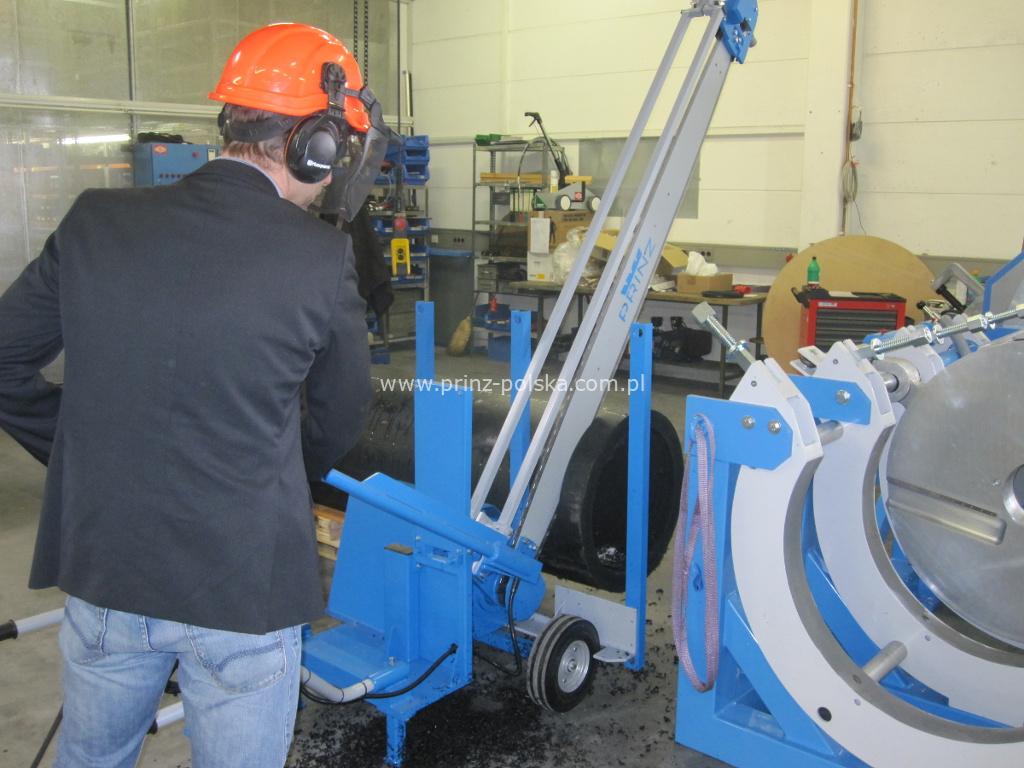

Mobile, electrically powered profiCUT PE strong chainsaw for cross-cutting of plastic pipes. It allows you to quickly cut the material without the need to transport the material. Perfect for companies related to the production, assembly of plastic profiles / components and recycling.

The guide bar with cutting length of 250 cm allows to cut pipes with a diameter up to 200 cm.

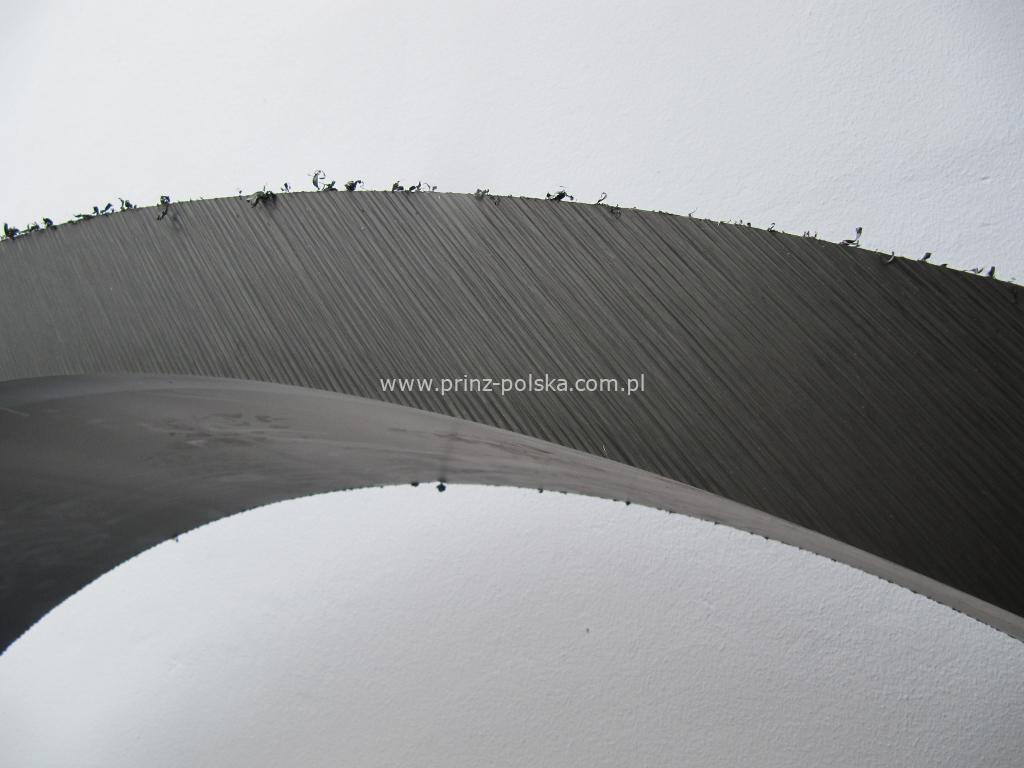

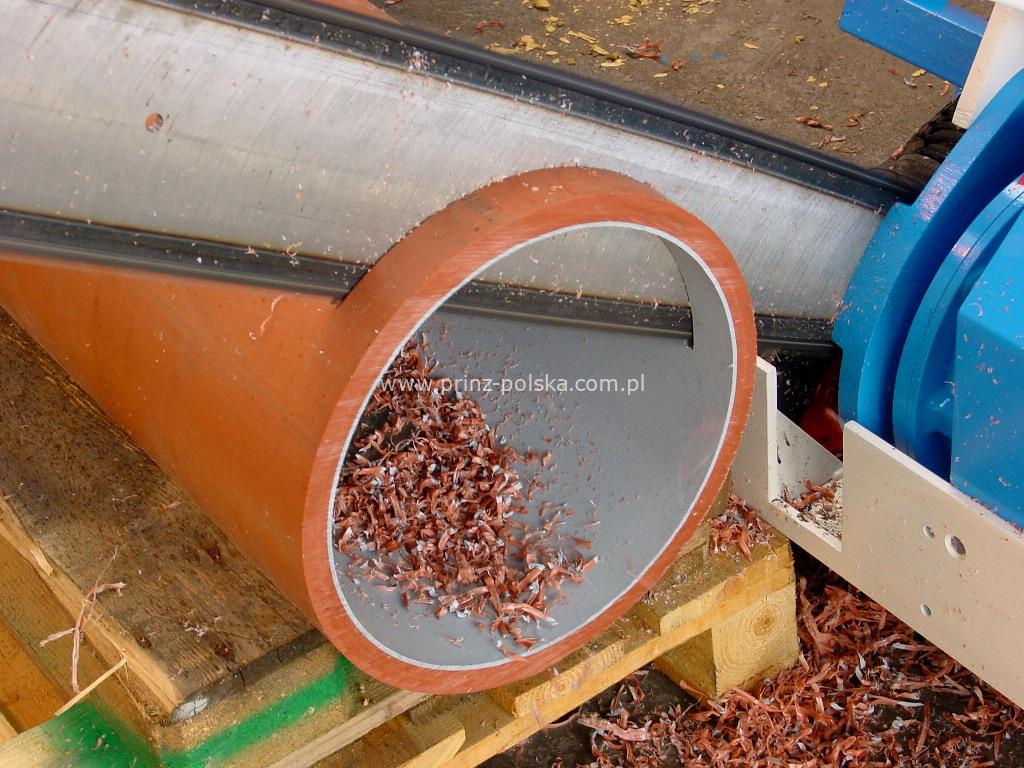

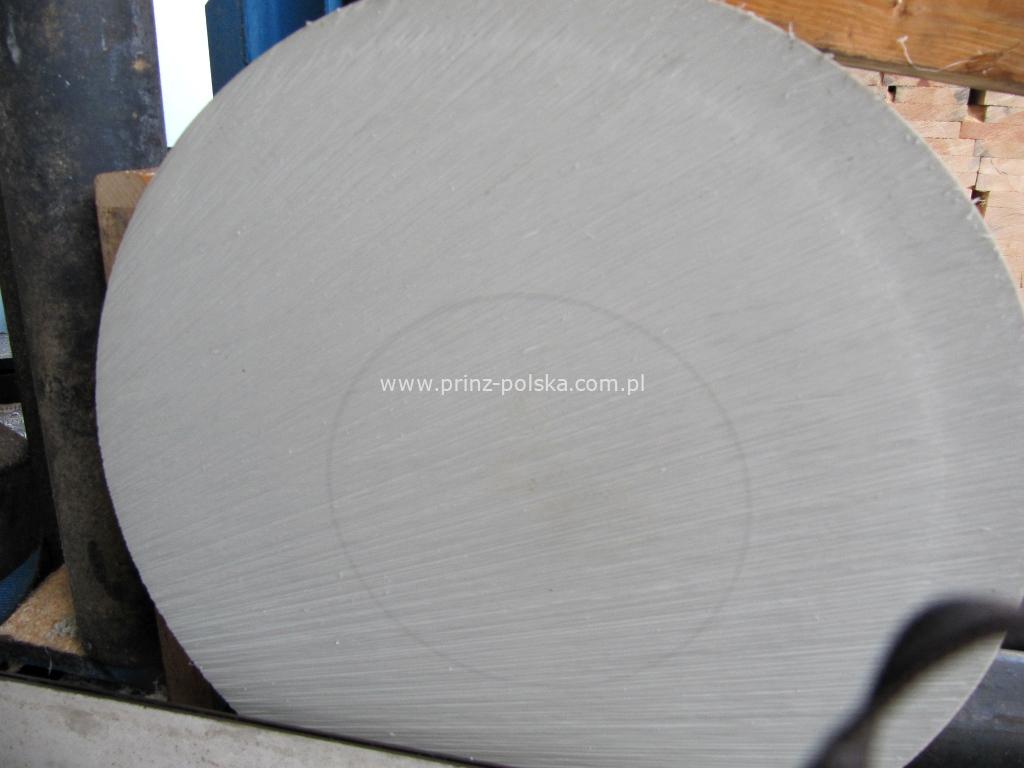

The saw can cut not only pipes but also solid plastic materials. The smooth and even surface after cutting facilitates further processing of material.

Ask for offer
Call Now 0048618638088
Technical data
Power 11 kW
Motor electric 3×400 V / 50 Hz / 2800 rpm, direct power transmission
Standard diameter max. 2000 mm (guide bar 250 cm)
Other dimensions available for larger diameters (more than 2000 mm) we recommend special solutions
Cut feed manual
Guiding of the cut two stabilization bars for better accuracy of cutting and as a operator’s protection
Saw type mobile saw / stationary material
Chain type special saw chains plastiCUT for plastic pipes
Guide bar one or two-side stellite plating
Cutting performance approx. 1 min when cutting Ø 100 cm roll, depending on the cut material
Cutting accuracy +/- 5 mm, on level surface
Saw/material drive manual
Measuring device available no
Control system manual, automatic star-delta switch
Application cross-cutting of paper rolls, cutting rolls lengthwise
Other
  • weight: approx. 270 kg
  • wide front plate for easy, perpendicular positioning of the machine, height 1000 mm
  • absorbing and tensioning system in rail head
  • easy, tool-less saw chain tension and replacement
  • fully automatic chain lubrication, gear oil pump, precise oil dose regulation due to control valve, lubrication from cut material side extends life-span of cutting unit parts
  • comfortable grip to lower / raise the cutting unit, especially long guide bars
  • full-tire wheels, easy transport of the machine
  • footrest for operator’s comfort
  • additional switch (with a 10 m cable) for second person to assess the work safety on the other side of cut material
Option
  • sliding mechanism of the cutting unit (left / right) – for precise positioning of the guide bar on the cutting line, feed approx. 5 cm
  • point laser helpful in setting the saw on the cutting line
Strengths
PROFICUT light głowica
Massive, cast iron rail head which includes:

- comfortable chain tension system (red knob)
- saw chain vibration damping system (through pulley)
- fully automatic chain lubrication - oil tank, gear oil pump, precise oil dose regulation due to control valve; lubrication from the cut material side
proficut-pe-lancuch
Massive cutting chain with 15 mm pitch for optimum removal of chips, guarantees smooth and level surface after cutting.

One or two-side stellite plating for optimal lifespan.
proficut-pe-zderzak
Two stabilization bars for better guiding of the bar, cutting accuracy: +/- 5 mm with level surface.
proficut-pe-zderzak
Wide front plate for easy perpendicular positioning of the machine in relation to the material, 100 mm height.

Solid, welded construction, weight approx. 270 kg.
proficut-pe-uchwyt
Comfortable grip to lower / raise the cutting unit, especially long guide bars.

Additional switch in the handle for safety of the operator and people nearby.

Additional switch (with a 10 m cable) for second person to assess the work safety on the other side of cut material.
PROFICUT light koła
Full-tire wheels, easy transport of the machine.
proficut stopka
Footrest for operator's comfort.
proficut laser
Spot laser helpful when setting the saw on the cutting line (option).
papercut-pozycjonowanie-prowadnicy
Sliding mechanism of the cutting unit (left / right) - for precise positioning of the guide bar on the cutting line, feed approx. 5 cm (option).
skrzynka elektryczna
Siemens electrical components.
