UNI BLOCK

UNI BLOCK / 7,5, 11 or 15 kW
cutting unit for installation according to individual needs

Technical Data Spare parts
  • equipped with hydraulic cylinder
  • equipped with rotating unit for cutting unit feed

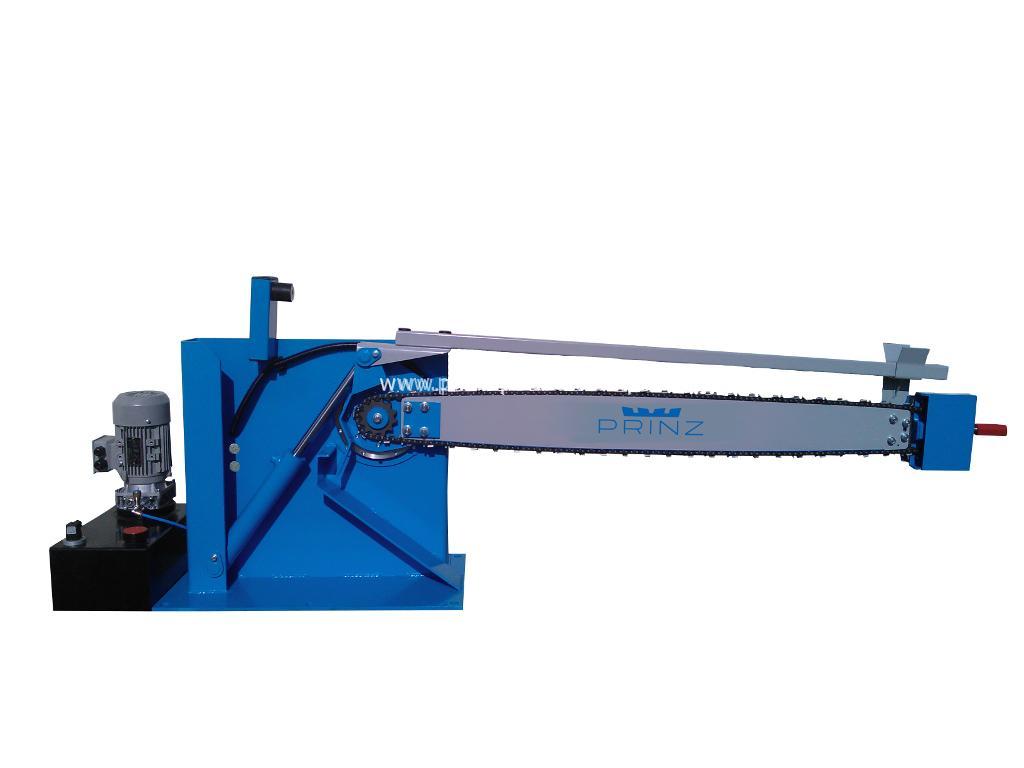

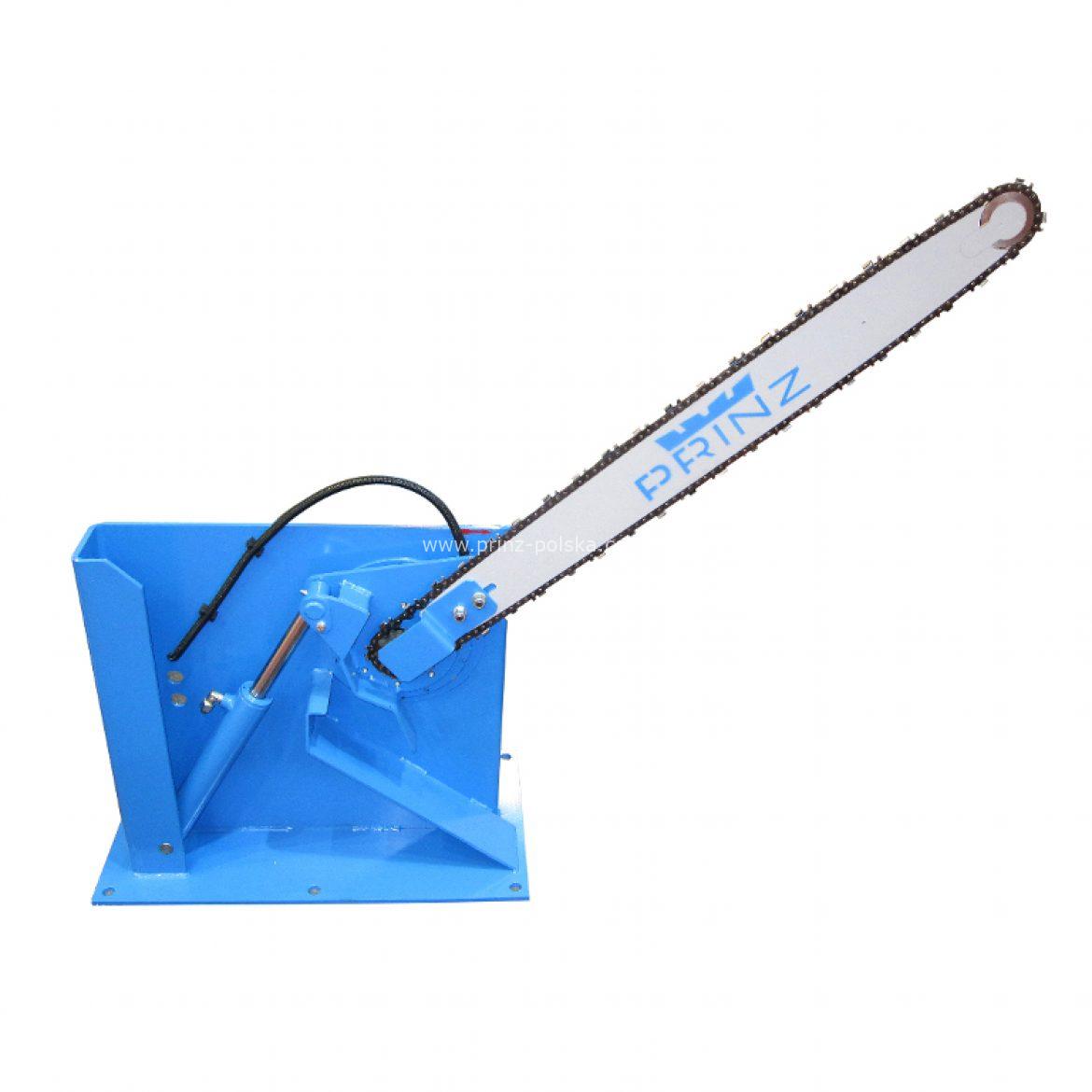

Hydraulic cutting unit UNI BLOCK is suited for work in cutting lines of bigger efficiency. In comparison to BASIC BLOCK, it is equipped with rotating unit for cutting unit feed and hydraulic cylinder prepared for plugging into existing hydraulic unit. Control systems on the client’s side.

Ask for offer
Call Now 0048618638088
Technical data
Power7,5, 11 or 15 kW
Motorelectric, 3x400V / 50 Hz / 2920 rpm, direct power transmission
Maximum log diameterapprox. 100cm
Guide bar lengths60, 80, 100, 130cm
Cut feedhydraulic (hydraulic cylinder built-in, hydraulic unit on the client’s side)
Guiding of the cut–
Saw typecutting unit for installation according to individual needs
Chain typechipper chain / carbide tipped chain
Guide barsolid steel, high frequency hardened / stellited with pulley
Cutting performanceapprox. 18 s/m², depending on the guide bar feed speed
Material driveon the client’s side
Saw driveon the client’s side
Measuring device availableon the client’s side
Control systemson the client’s side
Applicationefficient cutting of roundwood, cutting material of large diameters
Other
  • automatic lubrication of the cutting unit: 5l oil tank, oil gear pump, oil dose regulator, incl. additional electric motor 120W
  • easy saw chain tensioning
  • built-in hydraulic cylinder
  • no electrics (installation / control system on the client’s side)
  • rotating unit for cutting unit feed
Option
  • stabilizer for cutting unit guiding, separate bar head with a saw chain damping and tensioning system

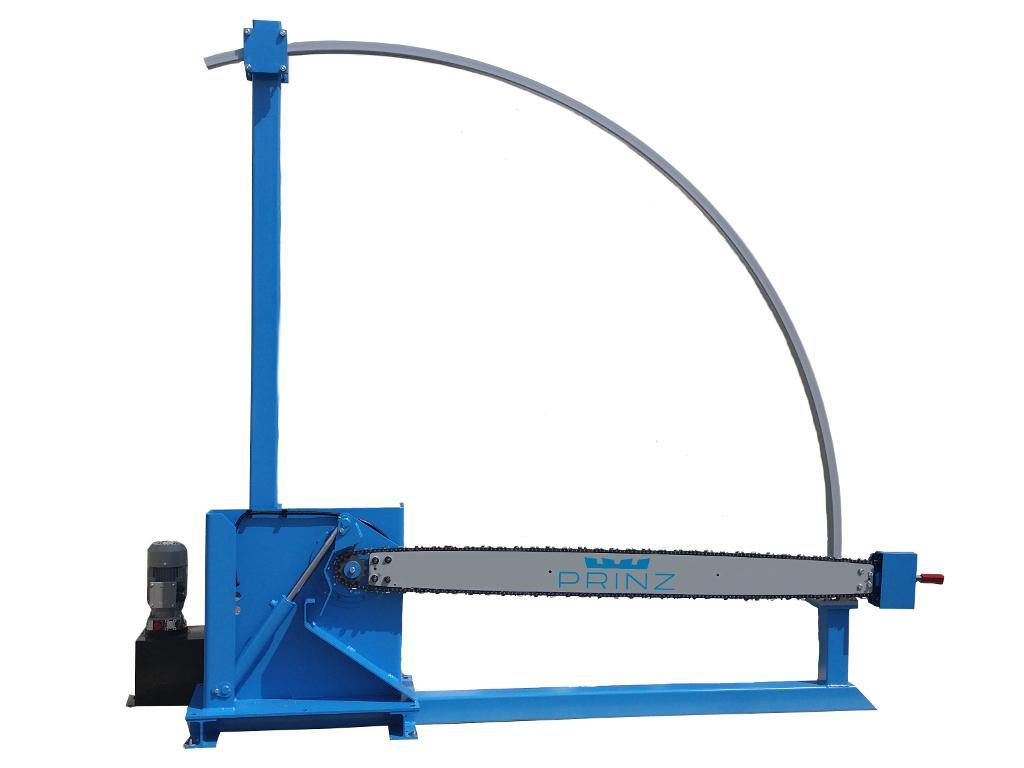

  • arch for guiding the cutting unit, separate bar head with a saw chain damping and tensioning system
Strengths
uniblock-uklad-tnacy-m x
uniblock-uklad-tnacy-m

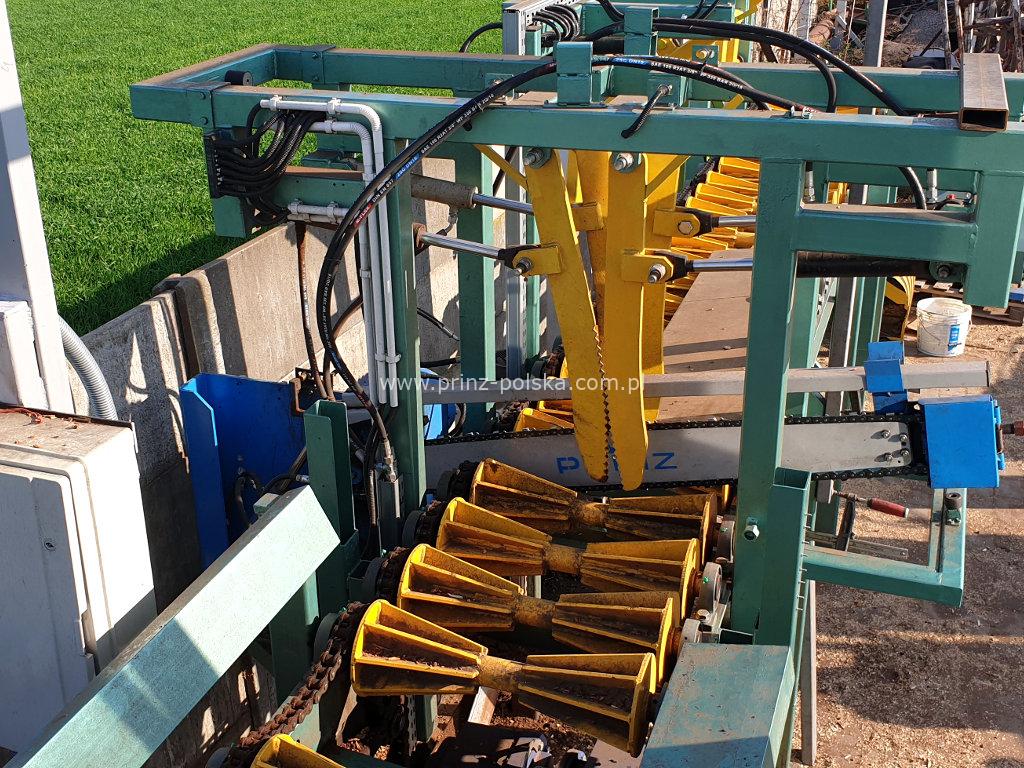

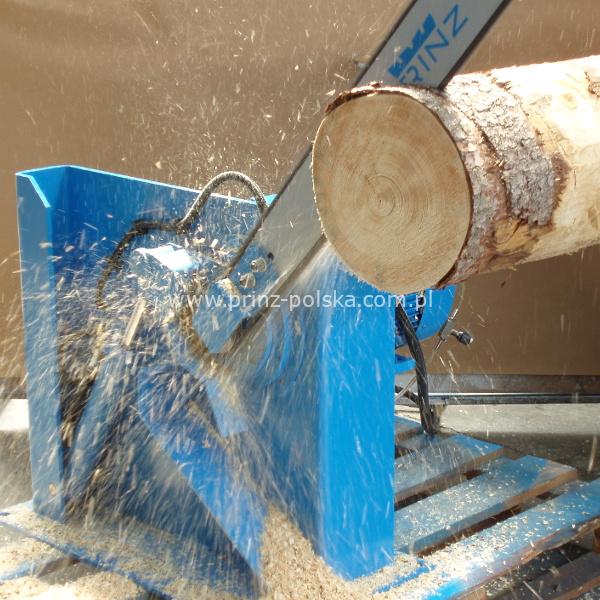

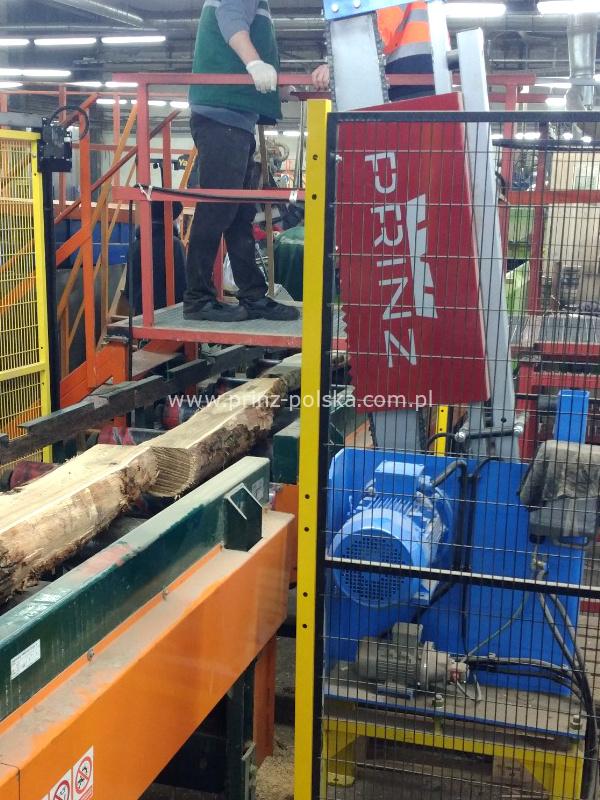

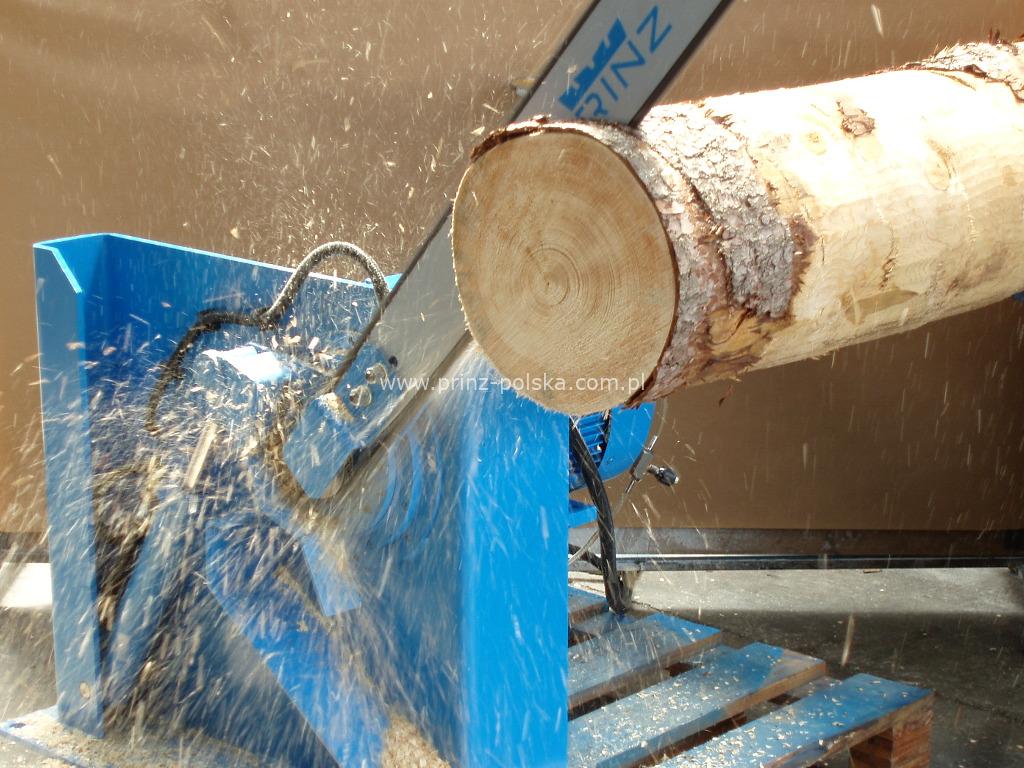

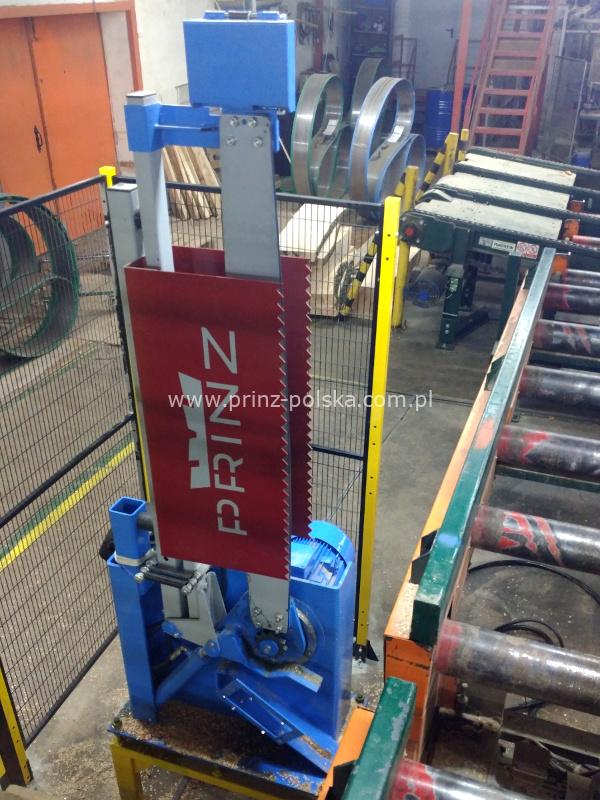

Cutting unit ready to be built into automatic line.
uniblock-masywna-konstrukcja-m x
uniblock-masywna-konstrukcja-m

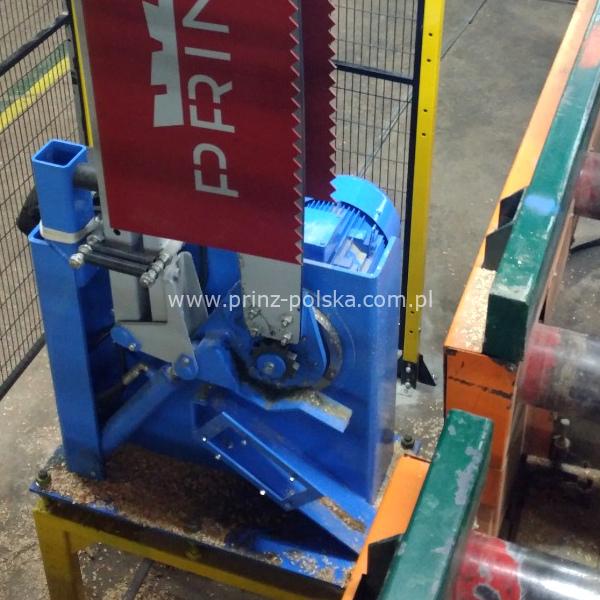

Solid, welded construction, rotating unit for cutting unit feed.
uniblock-smarowanie-m x
uniblock-smarowanie-m
Automatic chain lubrication, precise regulation of oil dose due to control valve, gear oil pump, 5l oil tank.
uniblock-prowadnica-m x
uniblock-prowadnica-m

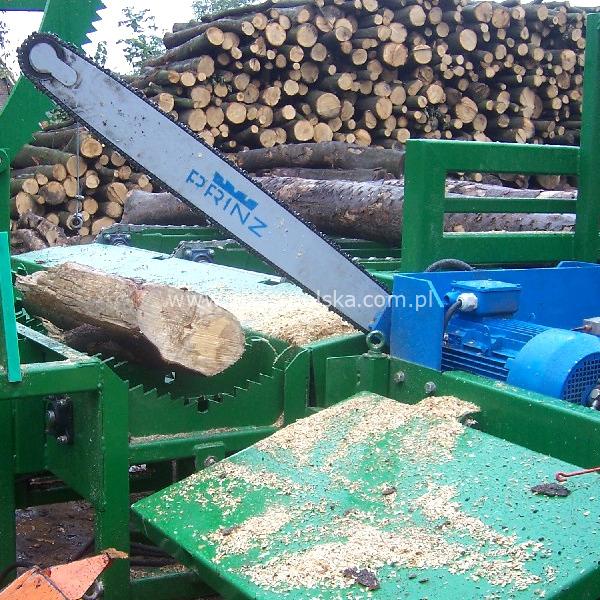

High frequency hardened guide bar with pulley, 3mm groove.

Stellited versions also available.
uniblock-lancuch-m x
uniblock-lancuch-m

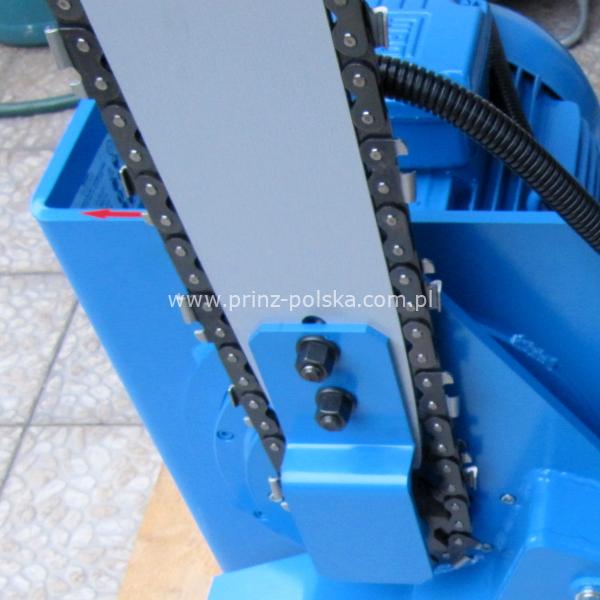

Massive saw chains TIMBERCUT or LOGMAX, 3mm thickness of the driving link for stable guiding during cutting.
uniblock-silownik-m x
uniblock-silownik-m

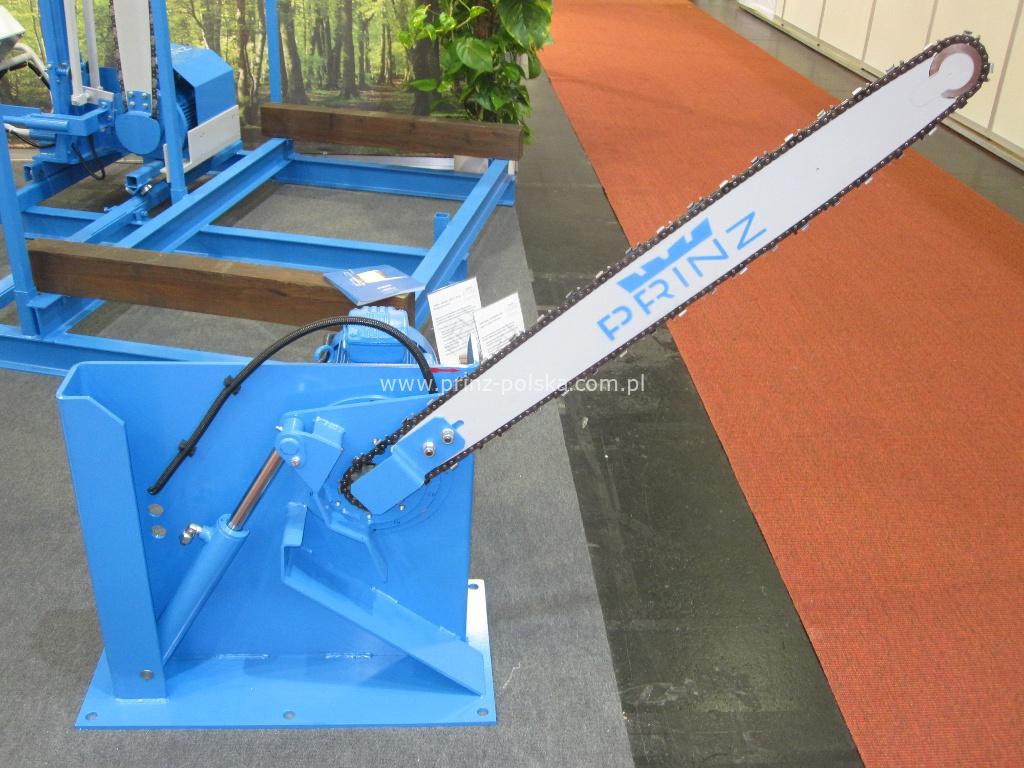

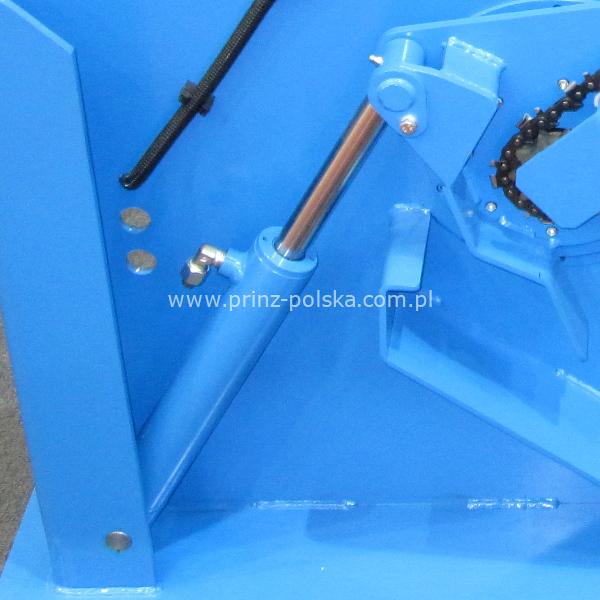

Built-in hydraulic cylinder.
