construCUT

construCUT for chiseling / 5,5 kW
self-propelled saw for chiseling of construction wood

Technical Data Spare parts
  • easy cutting of grooves 8-13 mm wide
  • easy adjustment of cutting height and depth

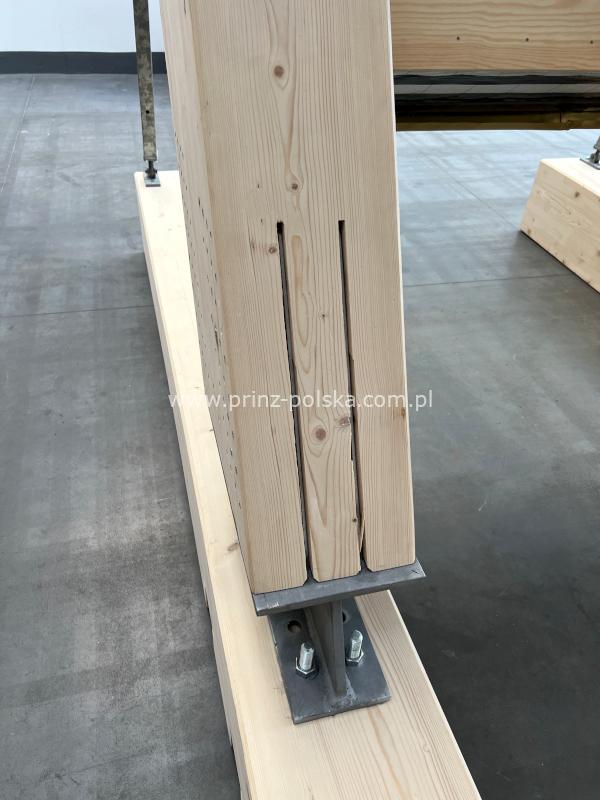

Self-propelled saw construCUT for chiselling glued wood, based on the proven pms25 saw. Enables efficient production of grooves in glued wood. Possibility to cut in both directions.

Possibility of using saw chains with different tooth geometry, kerf width and pitch.

Ask for offer
Call Now 0048618638088
Technical data
Saw type electric self-propelled saw
Application for chiseling of construction wood
Motor 5,5 kW / 3x400V / 50 Hz, left and right rotation
Power 5,5 kW
Chain drive transmission stepping down 1:4,357 rpm / approx. 320 rpm
Feed worm gear 0,25 kW, 900 rpm, stepping down 3 rpm
Saw chain scrapper / chipper / carbide-tipped, kerf width from 8 to 13 mm
Guide bar high-frequency hardened / stellited with pulley
Cutting length from 40 to approx. 100 cm
Efficiency of cutting depends on the type of cutting unit
Depth of cut range from 387 to 521 mm, depends on the type of guide bar
Height of cut 24 – 454 mm
Machine length approx. 1050 mm
Machine width approx. 850 mm
Machine height approx. 900 mm
Weight approx. 150 kg (approx. 107 kg without removable motor with gear drive and cutting unit)
Other additional safety switch for the second person, evaluating the working conditions around the machine
Strengths
construcut-kola-jezdne-m x
construcut-kola-jezdne-m
Properly adjusted speed of saw feed, high adherence of wheels.
construcut-wysokosc-ciecia-m x
construcut-wysokosc-ciecia-m
Stepless, independent regulation of cutting height. Possibility of cutting at an angle.
construcut-glebokosc-ciecia-m x
construcut-glebokosc-ciecia-m
Possibility of convenient adjustment of the cutting depth using the steering wheel.
construcut-przekladnia-m x
construcut-przekladnia-m
Massive transmission which ensures proper speed of the cutting chain.
construcut-rolki-m x
construcut-rolki-m
Rolls faciliating cutting process and guiding the machine along the material, side rollers for easier transport of the saw.
construcut-wyjmowany-silnik-m x
construcut-wyjmowany-silnik-m
Removable motor with gear drive and cutting unit for easier transportation of machine.
construcut-uklad-tnacy-m x
construcut-uklad-tnacy-m
Massive saw chains, with kerf width from 8 to 13 mm and pitches 3/8", 0,404" and 15 mm.

High-frequency hardened / stellited guide bar with a pulley.
